RIGOL Chapter 9 Histogram Analysis

9-4 MSO5000-E User Guide

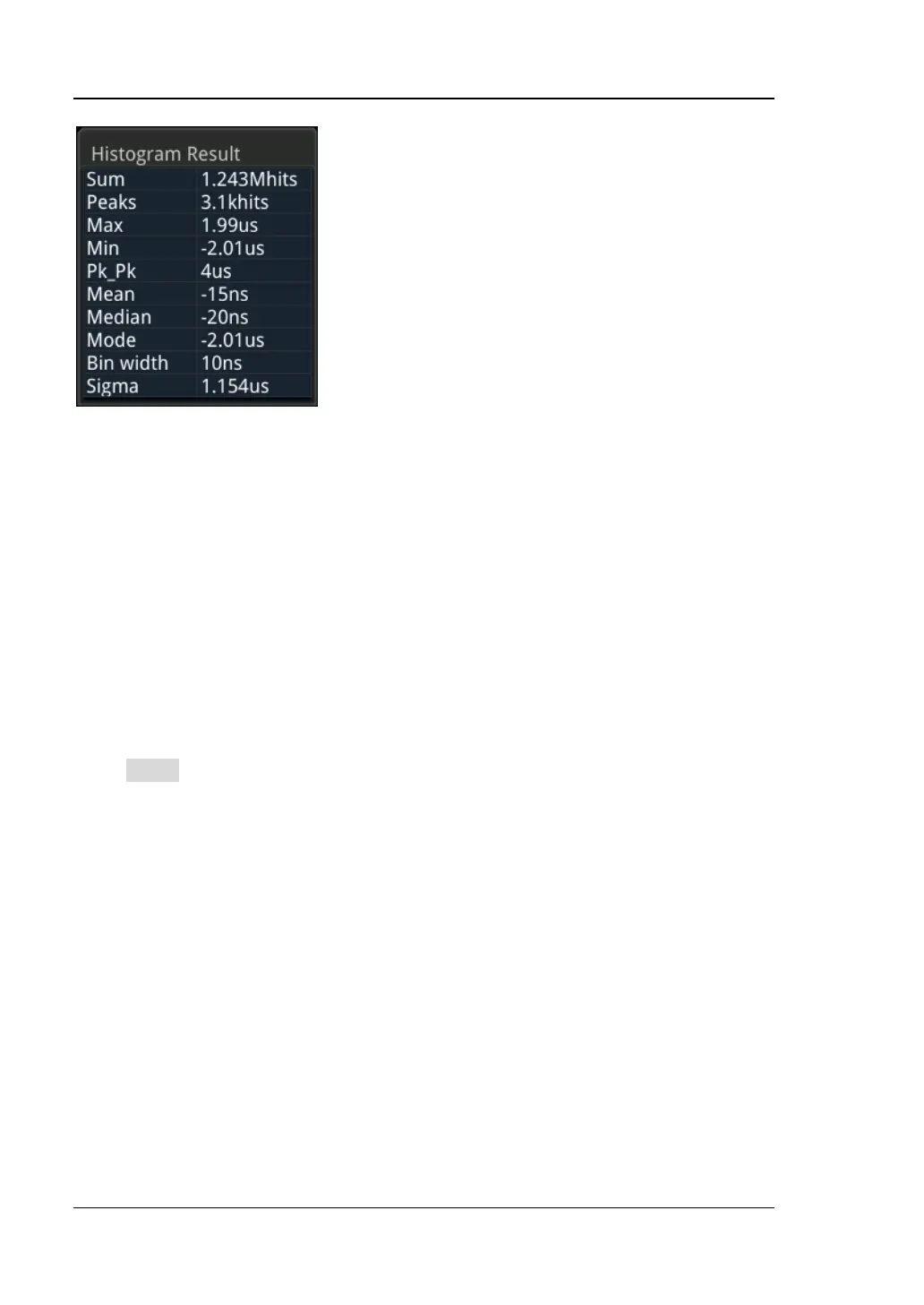

⚫ Sum: indicates the sum of all bins (buckets) in the histogram.

⚫ Peaks: indicates the maximum number of hits in any single bin.

⚫ Max: indicates the maximum value within the histogram range.

⚫ Min: indicates the minimum value within the histogram range.

⚫ Pk_Pk: indicates the Delta between the max. value and the min. value.

⚫ Mean: indicates the average value of the histogram.

⚫ Median: indicates the median value of the histogram.

⚫ Mode: indicates the mode value of the histogram.

⚫ Bin width: indicates the width of each bin (bucket) in the histogram.

⚫ Sigma: indicates the standard deviation of the histogram.

To Reset

Press Reset to reset the statistical data and restart to make statistics.
