RIGOL Chapter 1 Quick Start
1-24 MSO5000-E User Guide
keypad).
⚫ Drag the marker to change the position of the marker.

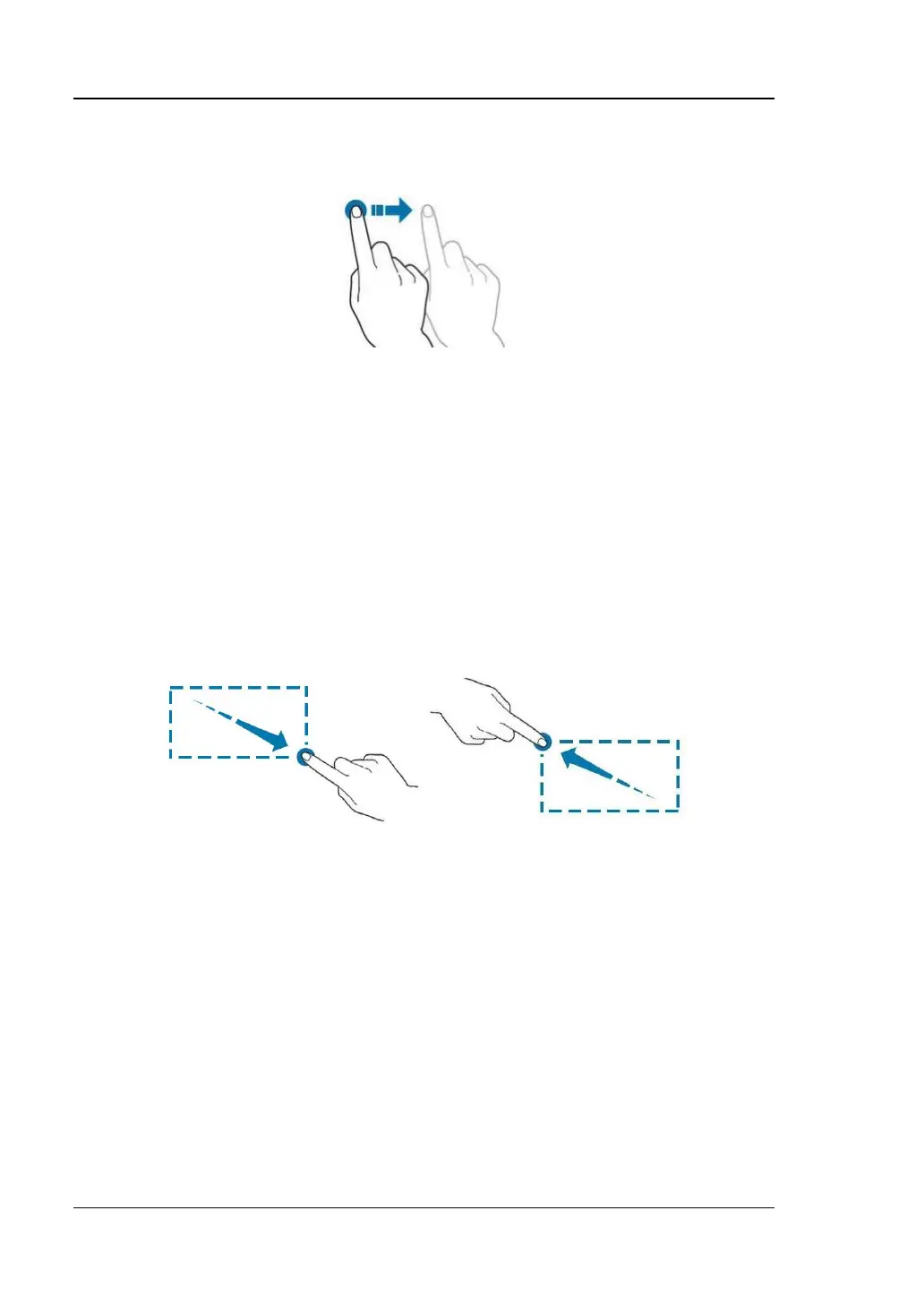

Figure 1-16 Drag Gesture
Rectangle Drawing
Enable the function navigation, and then tap the "Draw rect" icon to switch to the
rectangle drawing mode. Drag a finger from upper left to lower right across the
screen to draw a rectangle on the screen, as shown in Figure 1-17 (a). Move your
finger away from the screen, and then a menu is displayed on the screen. At this time,
you can tap to select "Trigger zone A", "Trigger zone B", "Histogram", "Horizontal
zoom in", "Vertical zoom in", or "Waveform zoom in". Drag a finger from lower right
to upper left across the screen to draw a rectangle on the screen, as shown in Figure
1-17 (b). Move your finger away from the screen, and then a menu is displayed on
the screen. At this time, you can tap to select "Trigger zone A", "Trigger zone B",
"Histogram", "Horizontal zoom out", "Vertical zoom out", or "Waveform zoom out".
(a) (b)
Figure 1-17 Rectangle Drawing Gesture
⚫ Select "Trigger zone A":
➢ Draw the region for Trigger zone A;
➢ Open Trigger zone A;
➢ Open the "Zone Trigger" menu.
⚫ Select "Trigger zone B":
➢ Draw the area for Trigger zone B;
➢ Open Trigger zone B;
➢ Open the "Zone Trigger" menu.
⚫ Select "Histogram":
➢ Draw the region for the histogram;
➢ Open the "Histogram" menu.
