Chapter 17 Function/Arbitrary Waveform Generator (Option) RIGOL
MSO5000-E User Guide 17-9

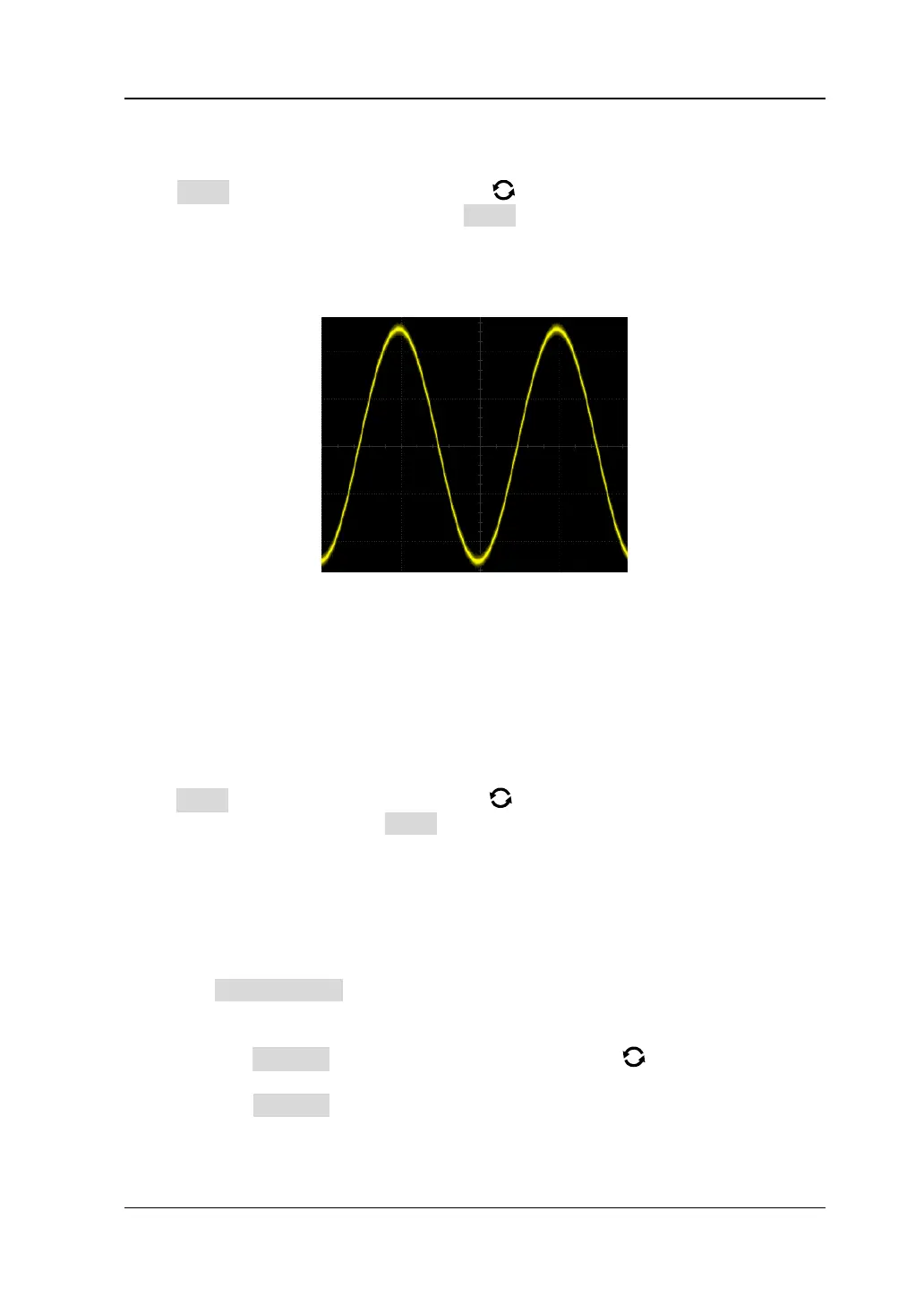

Haversine
Press Wave, rotate the multifunction knob to select "Haversine". Press down
the knob to select it. You can also press Wave continuously or enable the touch
screen to select it. At this time, you can set the parameters for the Haversine
waveform (as shown in the figure below). For setting methods, refer to descriptions
in "To Output Sine".
Figure 17-9 Haversine
To Output the Arbitrary Waveform
MSO5000-E series oscilloscope allows you to define the arbitrary waveform and save
it to the internal or external memory. The user-defined waveform can contain 2 to
16,384 data points (i.g. 2 pts to 16 kpts).
Press Wave, rotate the multifunction knob to select "Arb". Press down the knob
to select it. You can also press Wave continuously or enable the touch screen to
select it. At this time, you can set the parameters for the arbitrary waveform.
To Load the Channel and Waveform
1. Load the Channel
Press Load from CH to enter the channel loading menu. You can set the
channel signal required to be loaded.
⚫ Channel selection
Press Channel and rotate the multifunction knob to select the desired
channel (CH1-CH2), and then press down the knob to select it. You can also
press Channel continuously or enable the touch screen to select it.
