RIGOL Chapter 6 Operations and Measurements
6-50 MSO5000-E User Guide

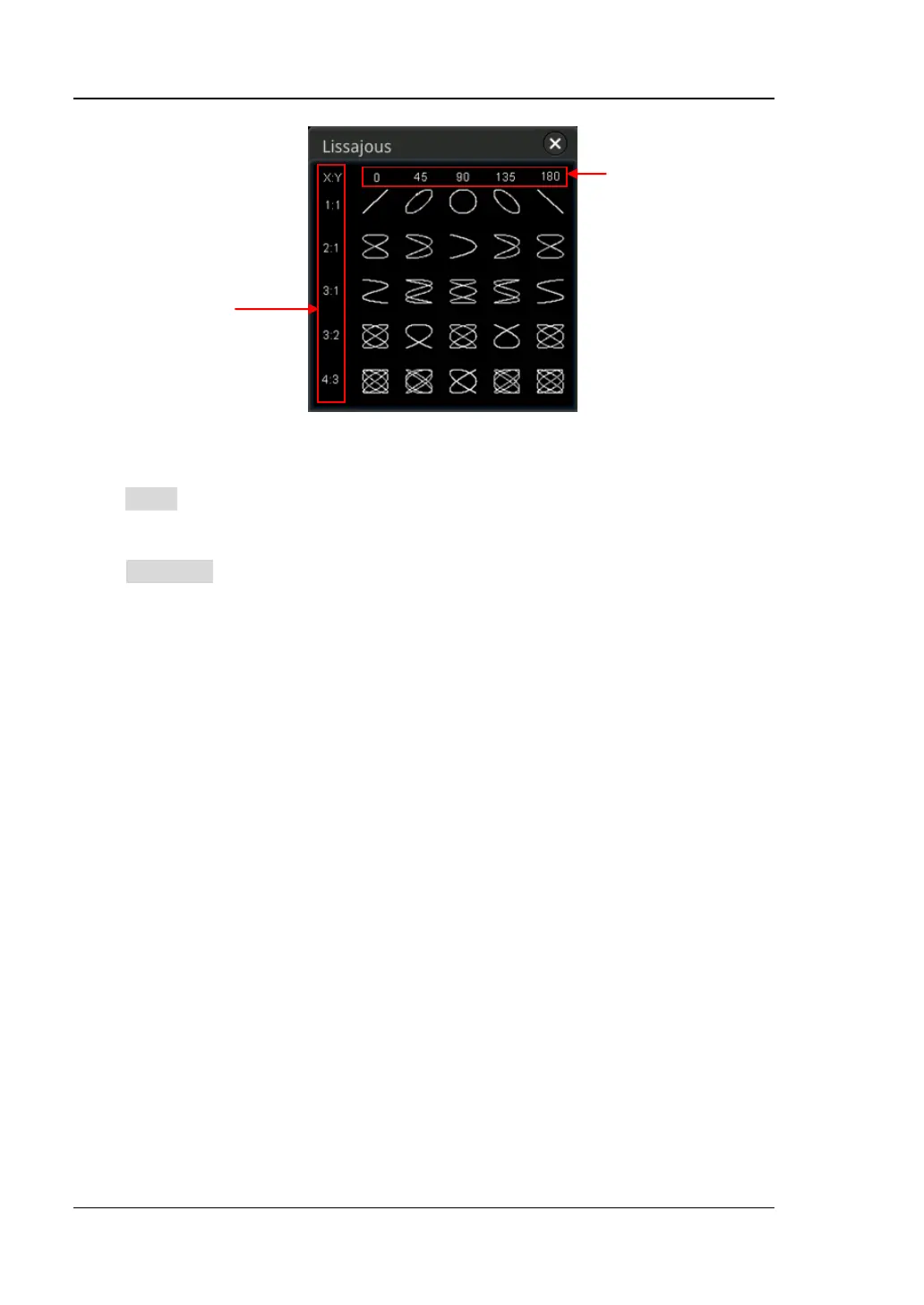

Figure 6-4 Lissajous Schematic Diagram
Measure Mode
Press Mode to select "Measure". In this mode, the cursor position for measurement
is displayed.
Press Indicator continuously to enable or disable the indicator. If it is enabled, one
or multiple cursors are displayed on the screen. Before enabling the indicator, you
need to enable at least one parameter for auto measurement. The number of cursors
will change along with the enabled measurement parameters.
Note: If no measurement parameter is selected or no measurement source is input,
no cursor is displayed. When you expand or compress the waveforms horizontally,
the cursor will change accordingly.
Phase deviation
between two signals
Frequency ratio
between two signals
