Storage: Press this key to enter the file or waveform storage and load interface. The
file types for storage include image, waveform, and setups. Besides, waveform load
and setup load are supported. The disk management and file auto naming function
are also supported in this menu.
Cursor: Press this key to enter the cursor measurement menu. The oscilloscope
provides four cursor modes: Manual, Track, XY, and Measure. Note that XY cursor
mode is only available when the horizontal timebase is set to "XY".
Display: Press this key to enter the display setting menu. You can set the display
type, persistence time, wave intensity, and etc.
Utility: Press this key to enter the system function setting menu. You can set
system-related functions or parameters, such as I/O, sound, language, and etc.
Besides, some advanced functions (such as the pass/fail test, waveform recording,
and self-calibration) are also supported.

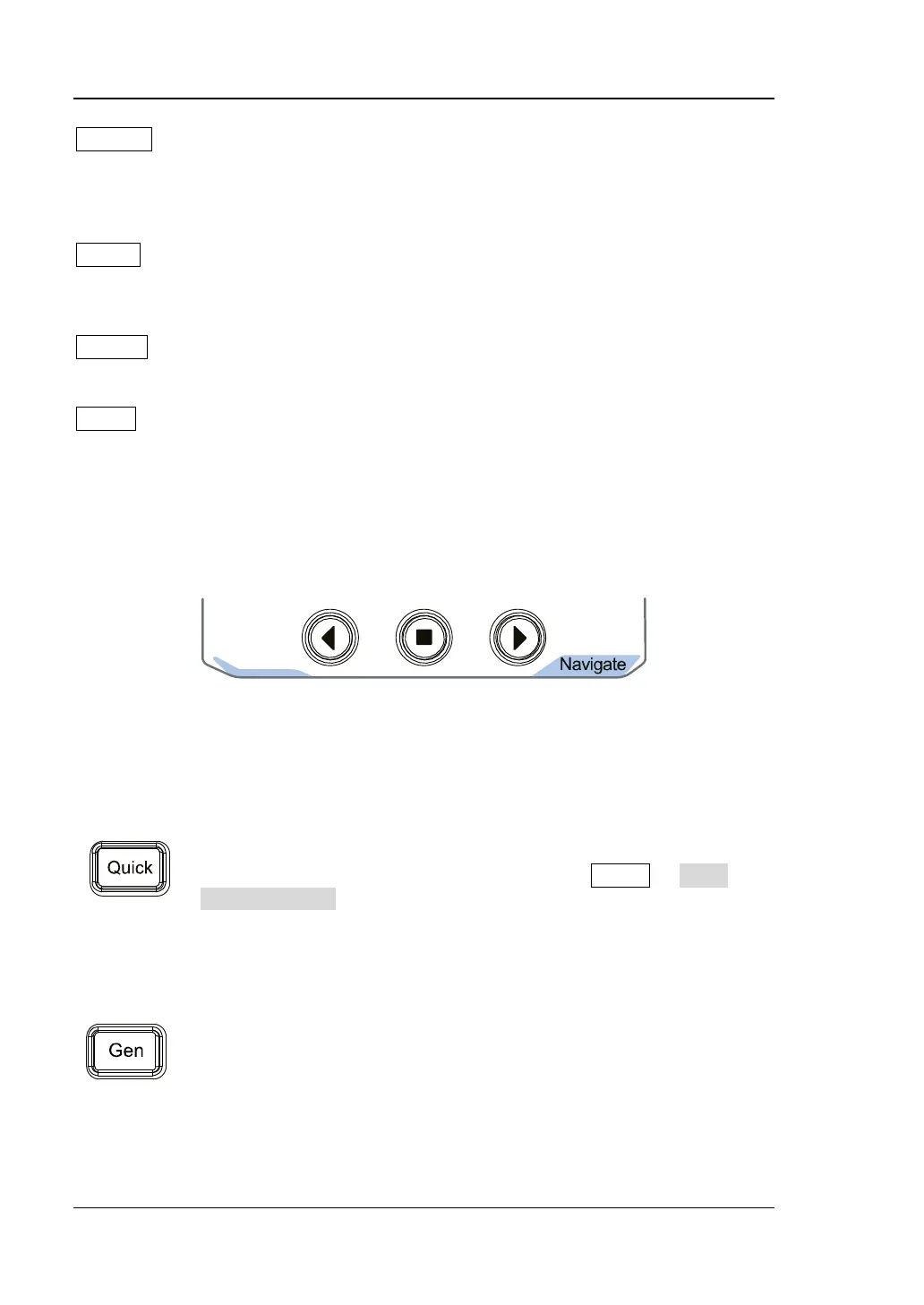

Navigation Control Key
With the navigation keys, you can perform recording & playing navigation, time
navigation, and event navigation.
Quick Key (Shortcut Key)
Function/Arbitrary Waveform Generator Setting
Press this key to enable or disable the output of the [Gen Out]
connector on the front panel; and then enter the Function/Arbitrary
Waveform Generator setting interface. Enable or disable the status
display of the current signal.
Note: This function is only available for the model installed with the
MSO5000-E-AWG option.
Press this key to perform the quick operation, such as screenshot,
waveform saving, setup saving, and etc. Press Utility → More →
Quick settings to set the quick shortcut keys.
