26 Rockwell Automation Publication ENET-IN002H-EN-P - August 2017
Chapter 2 Install a 1768 EtherNet/IP Communication Module
Grounding Considerations
Set the Network IP Address
To operate an EtherNet/IP communication module on an EtherNet/IP network,
you must set a network IP address. This graphic shows the process that is used to
set the IP address for the module.

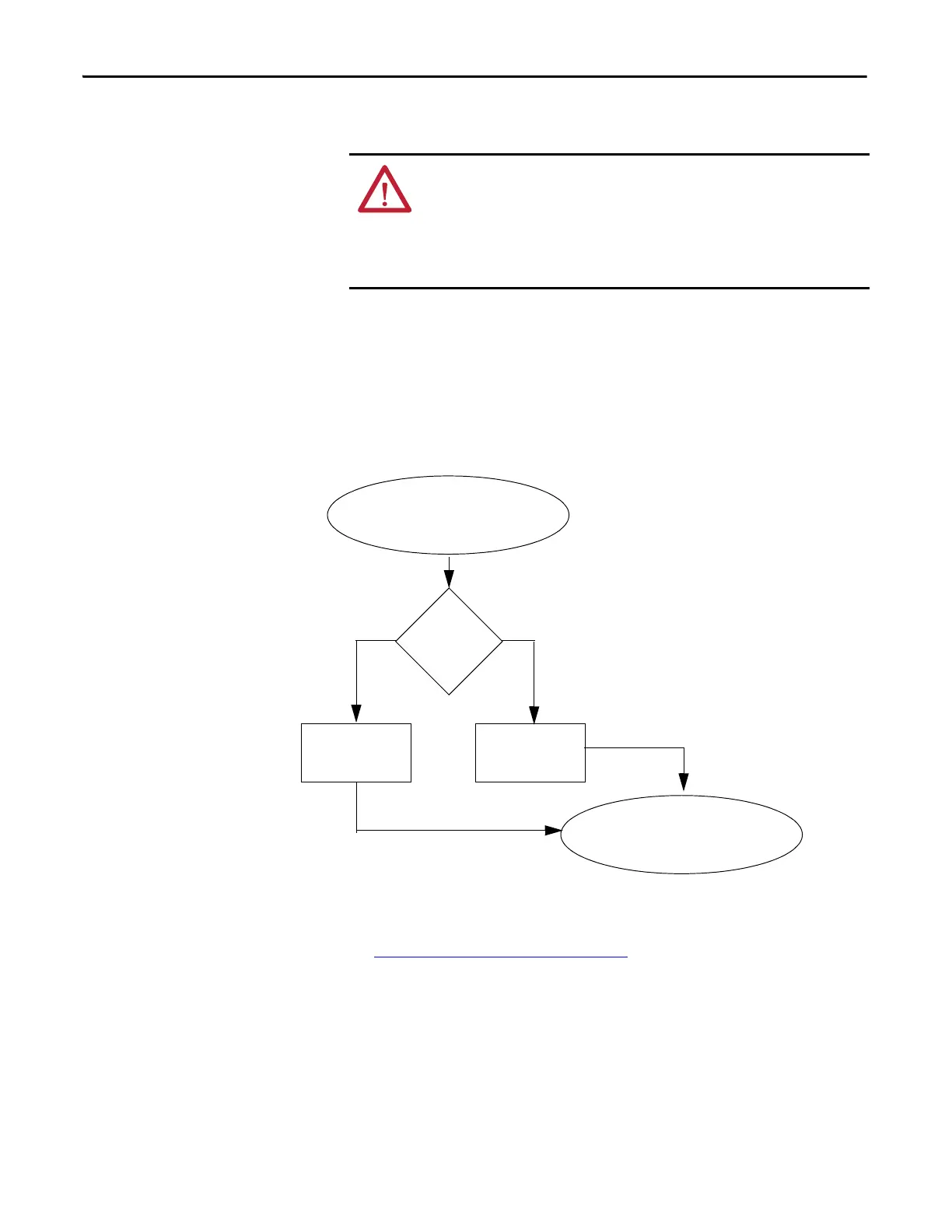

Figure 2 - Set the IP Address for the Module
See Set the Network IP Address on page 45 to view all steps for setting the IP
address.
ATTENTION: This product is grounded through the DIN rail to chassis ground.
Use zinc-plated yellow-chromate steel DIN rail to assure proper grounding. The
use of other DIN rail materials (for example, aluminum or plastic) that can
corrode, oxidize, or are poor conductors, can result in improper or intermittent
grounding. Secure DIN rail to mounting surface approximately every 200 mm
(7.87 in.) and use end-anchors appropriately.
Module Powerup
Module has an IP
address.
Is DHCP or
BOOTP
enabled?
YesNo
Module requests
address from DHCP/
BOOTP server.
Adapter uses IP address
stored in nonvolatile
memory.
To Next Page
