56 Rockwell Automation Publication ENET-IN002H-EN-P - August 2017
Chapter 5 Configure a Workstation to Operate on an EtherNet/IP Network
Configure the Ethernet
Communication Driver

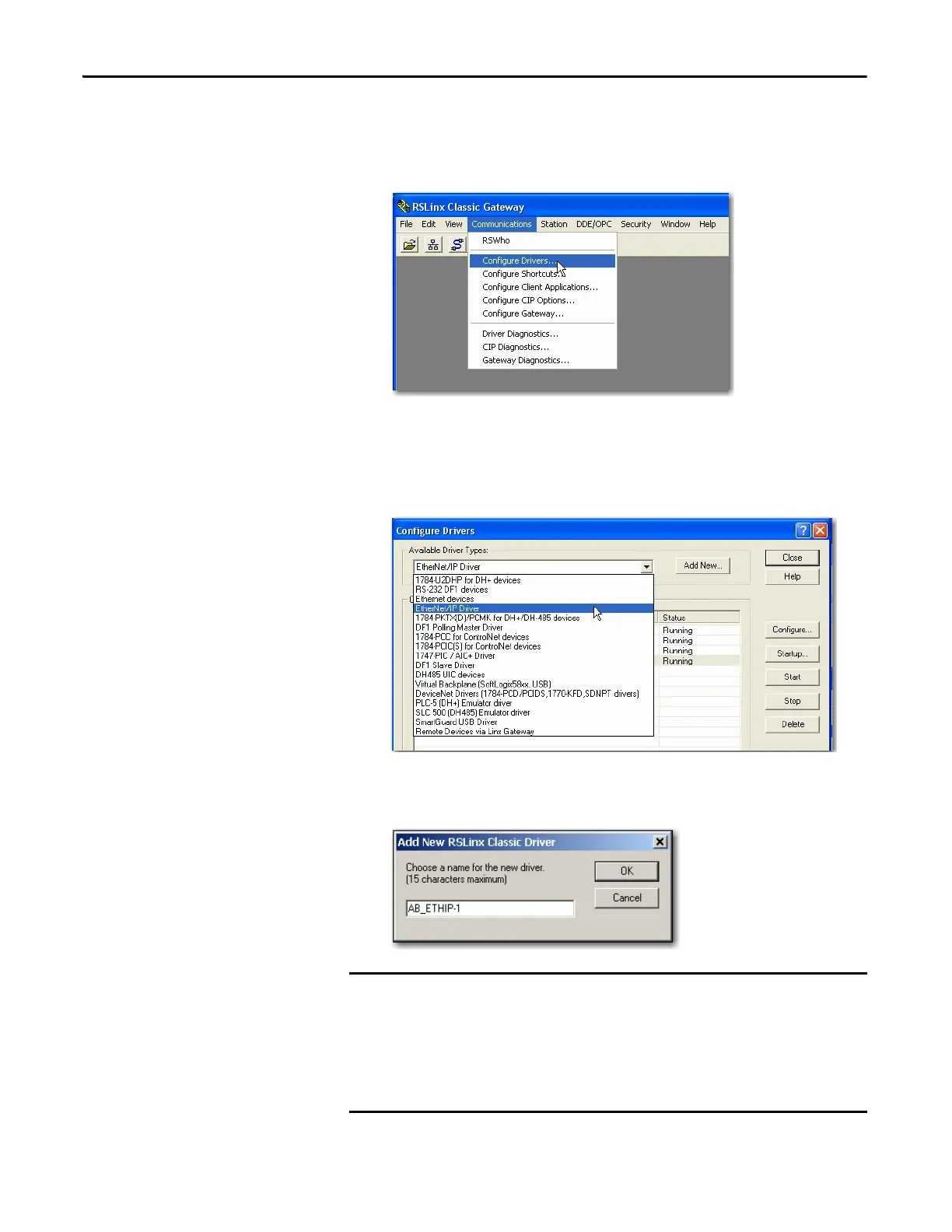

To configure the Ethernet communication driver in RSLinx® Classic software,
follow these steps.
1. From the Communications pull-down menu, choose Configure Drivers.
The Configure Drivers dialog box appears.
2. From the Available Driver Types pull-down menu, choose EtherNet/IP
Driver or Ethernet devices.
3. Click Add New.
The Add New RSLinx Classic Driver dialog box appears.
If you are using a Microsoft Windows 7 VPN client to connect to a secure
communication module, such as the1756-EN2TSC module, we recommend
using the RSlinx software Ethernet devices AB_ETH driver for the 1756-EN2TSC
module.
If you do not choose this driver, the device is shown in RSLinx software, but you
cannot right-click the device listing and request additional information.
