Rockwell Automation Publication ENET-IN002H-EN-P - August 2017 71
Appendix D
Fiber Cable and LC Connector
This appendix provides specifications for the fiber cable and LC connector used
with the 1756-EN2F EtherNet/IP fiber module or the 1783-ETAP1F and
1783-ETAP2F EtherNet/IP fiber taps.

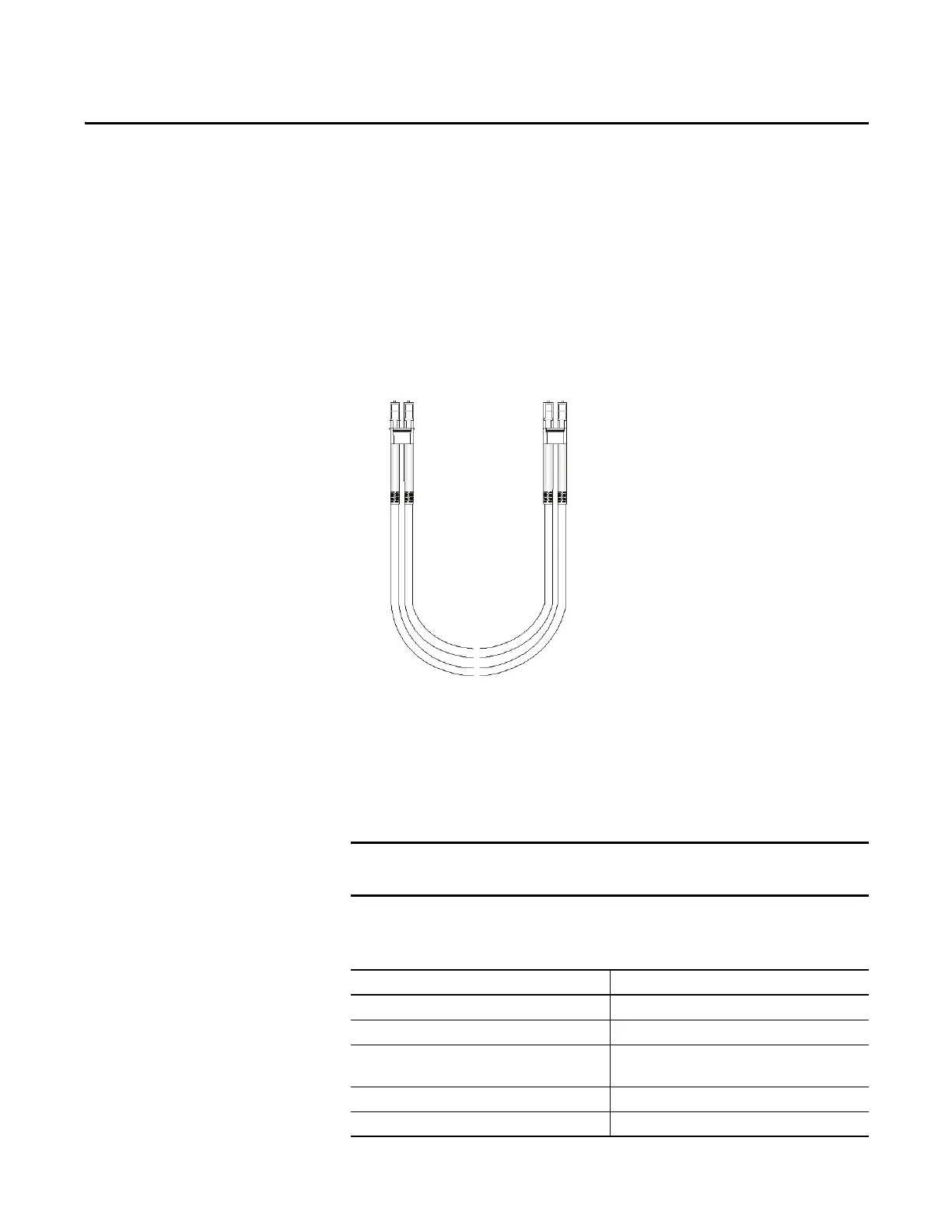

Figure 5 - Fiber Cable
Specifications
The 1756-EN2F EtherNet/IP fiber module and the 1783-ETAP1F and
1783-ETAP2F EtherNet/IP fiber taps use a fiber cable and LC connector. The
fiber cable is typically used in 1 m (3 ft), 2 m, (6 ft), 3 m (9 ft), 5 m (15 ft), and
100 m (300 ft) lengths, but supports lengths up to 2 km (1.24 mi).
The fiber cable and LC connector supports these specifications.
You can special order a fiber cable in any length up to 2 km (1.24 mi) from
your fiber cable vendor.
Table 5 - Fiber Cable and LC Connector Specifications
Attribute Value
Fiber transceiver type 100Base-FX IEEE802.3u
Optical wavelength 1310 nm no cap
Transmitter launch power at beginning of life (BOL), min
Allow -1 dB at end of life (EOL)
-19 dBm into 62.5/125 μm fiber, N/A = 0.275
-22.5 dBm into 50/125 μm fiber, N/A = 0.20
Receiver sensitivity, min -31.8 dBm
Receiver sensitivity, max -14 dBm
