98 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022
Chapter 6 Micro870 Controller Distributed Network Protocol
DNP3 Configuration

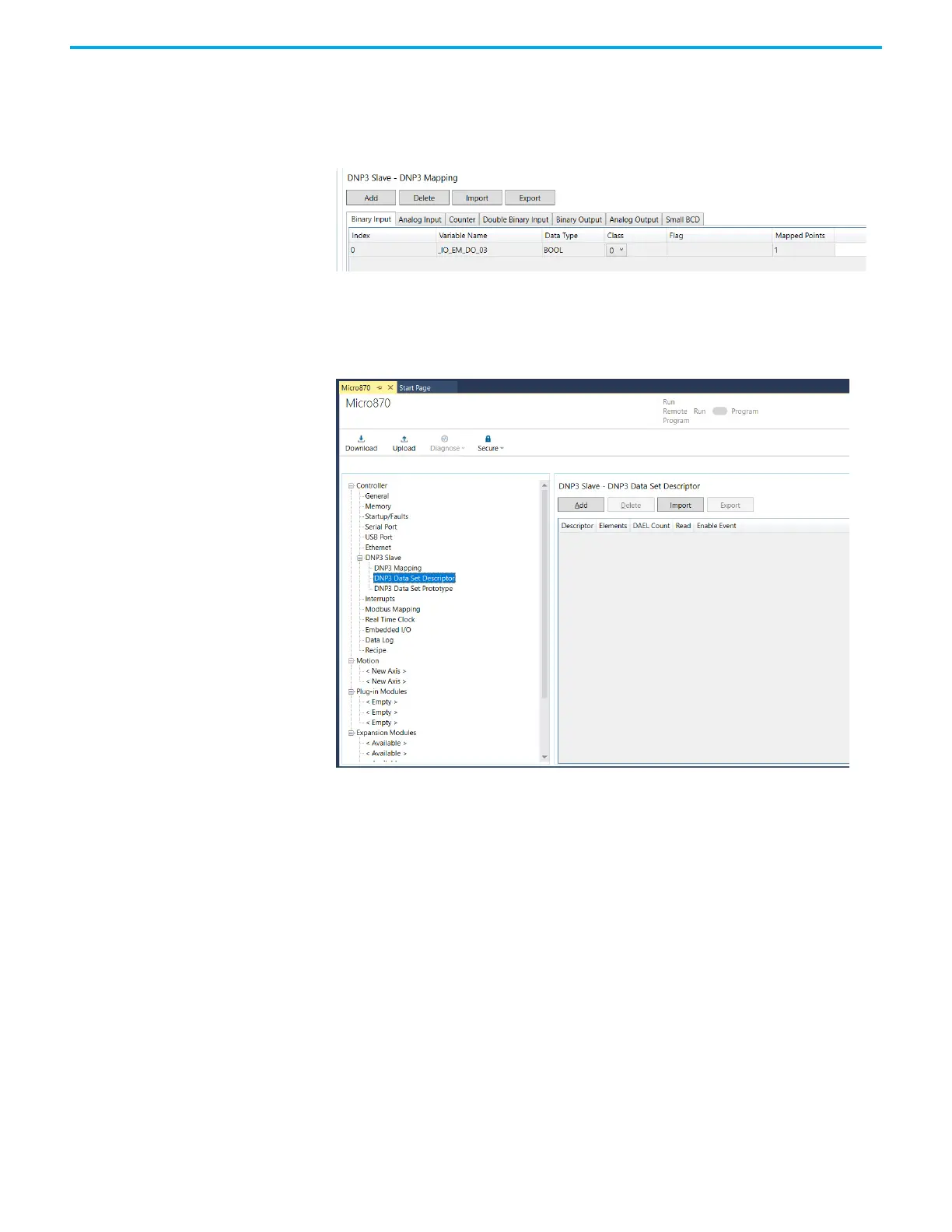

You can configure parameters such as Class level and Object Flag bit information for each
element. This information is defined during object creation in the data mapping window in
DNP3 mapping.
DNP3 Data Set Object
To create a Data Set Object from the DNP3 Subsystem in the controller, configure Data Set
Prototypes/Descriptors Object in the DNP3 Data-set Descriptor/Prototype under DNP3 Slave.
Each Data Set Prototypes Object can have up to 10 elements of Data Set Prototypes, and each
Data Set Descriptors Object can have up to 10 elements of Data-set Descriptors.
