76

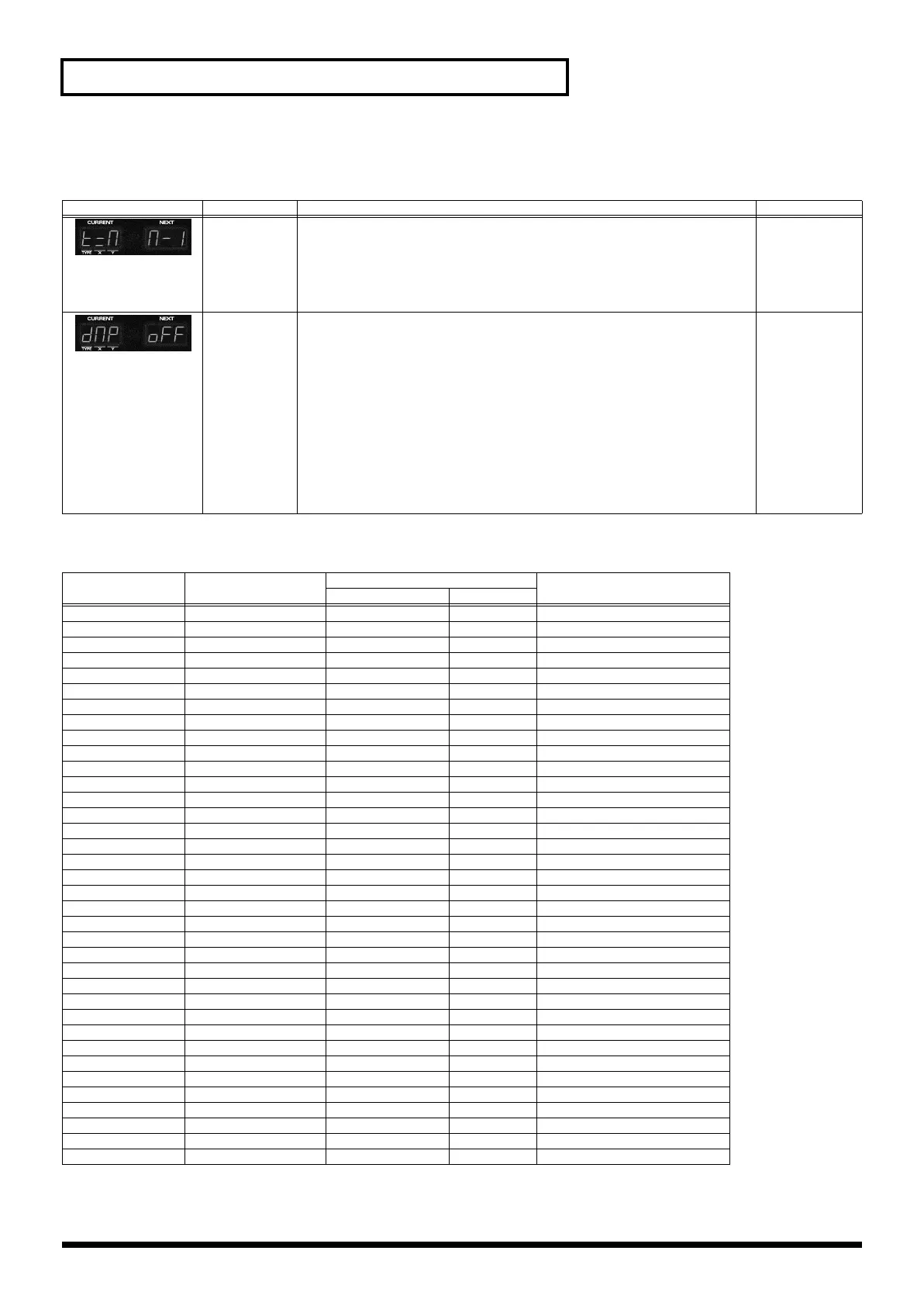

Chapter 8. System Settings and MIDI Applications
MIDI transmission settings
Table of Transmitted Data
* If this parameter is changed while a pattern is playing, the data recorded in the sequencer will stop being transmitted to the sound
generator. (This is because panel operations take priority for producing sounds.) This state will continue until a different pattern is
recalled.
Indication Parameter Explanation Values
TX MODE
(transmit
mode)
Specifies the types of MIDI message that will be transmitted. At the factory set-
tings, this is set to “MODE1.” When using a MIDI connection to a D2, MC-307,
MC-505, or JX-305, setting this to MODE2 will reduce the amount of data trans-
mitted and received, in comparison to MODE1.
* For the controller numbers that are switched by MODE1 and MODE2, refer to
“Table of transmitted data” on this page.
MODE1,
MODE2
TX BULK
(bulk trans-
mit)
Internal settings and the data of the current pattern can be transmitted as a group
for storage on an external device.
For details refer to p. 81.
OFF:
Data will not
be transmit-
ted.
PTN:
Data of the
current pat-
tern will be
transmitted.
ALL:
All data will
be transmit-
ted.
Parameter EDIT TX/RX Value
MODE1 (Default) MODE2
PITCH COARSE TUNE EXCLUSIVE CC#21 16 - 112 Center=64)
FINE TUNE CC#77 CC#77 14 - 114 (Center=64)
FILTER FILTER TYPE EXCLUSIVE CC#34 0 - 4
CUTOFF CC#74 CC#74 0 - 127
RESONANCE CC#71 CC#71 0 - 127
AMPLIFIER TONE LEVEL EXCLUSIVE CC#36 0 - 127
TONE PAN EXCLUSIVE CC#35 0 - 127 (Center=64)
RND PAN EXCLUSIVE CC#37 0 (OFF), 63 (ON)
P-ENVELOPE DEPTH EXCLUSIVE CC#25 52 - 76 (Center=64)
A EXCLUSIVE CC#26 0 - 127
D EXCLUSIVE CC#27 0 - 127
S EXCLUSIVE CC#39 1 - 127 (Center=64)
R EXCLUSIVE CC#40 0 - 127
F-ENVELOPE DEPTH CC#81 CC#81 1 - 127 (Center=64)
A CC#82 CC#82 0 - 127
D CC#83 CC#83 0 - 127
S EXCLUSIVE CC#28 0 - 127
R EXCLUSIVE CC#29 0 - 127
A-ENVELOPE A CC#73 CC#73 0 - 127
D CC#75 CC#75 0 - 127
S EXCLUSIVE CC#31 0 - 127
R CC#72 CC#72 0 - 127
LFO1 WAVEFORM EXCLUSIVE CC#15 0 - 7
RATE CC#16 CC#16 0 - 127
P-DEPTH CC#18 CC#18 1 - 127 (Center=64)
F-DEPTH CC#19 CC#19 1 - 127 (Center=64)
A-DEPTH CC#80 CC#80 1 - 127 (Center=64)
PORTAMENTO SW CC#65 CC#65 0 - 63 (OFF), 64 - 127 (ON)
TIME CC#5 CC#5 0 - 127
SOLO CC#126/127 CC#126/127 126=1 (ON), 127=0 (OFF)
PART MIXER LEVEL CC#7 CC#7 0 - 127
PAN CC#10 CC#10 0 - 127 (Center=64)
KEY SHIFT EXCLUSIVE CC#85 16 - 112 (Center=64)
REVERB CC#91 CC#91 0 - 127
DELAY CC#94 CC#94 0 - 127
MFX SW EXCLUSIVE CC#86 0 (OFF), 1 (ON), 4 (RHY)
To Next Page
