RTK Series UC625 Annunciator
29
Installation
Cut-out Dimensions
Only one cut-out is required to mount the alarm annunciator. The size of this cut-out is dependent on
the number of alarms fitted as shown in the table below
ALARM WAYS OVERALL SIZE (H X W) MMS CUT-OUT SIZE (H X W) MMS
12 154 x 152 141 x136
16 154 x 180 141 x 164
20 154 x 208 141 x192
24 154 x 236 141 x 220
28 154 x 264 141 x 248
32 154 x 292 141 x 276
36 154 x 320 141 x 304
40 154 x 348 141 x 332
Please note:- Cut-Out dimensions have a tolerance of plus or minus 0.5 mm.
Table 22
For standard units depth = 130mm
Cabinet Fixing
The annunciator system as received will be ready to install into the panel cut-out.
Firstly remove the frame clamps, the unit is then passed through the panel cut-out as far as the
'picture frame' trim and is secured from behind with the frame clamps and screws which are located
into the frame extrusion as shown in the drawing below.. To ensure the screw cannot shake loose a
locking nut is provided. Maximum panel thickness 6mm

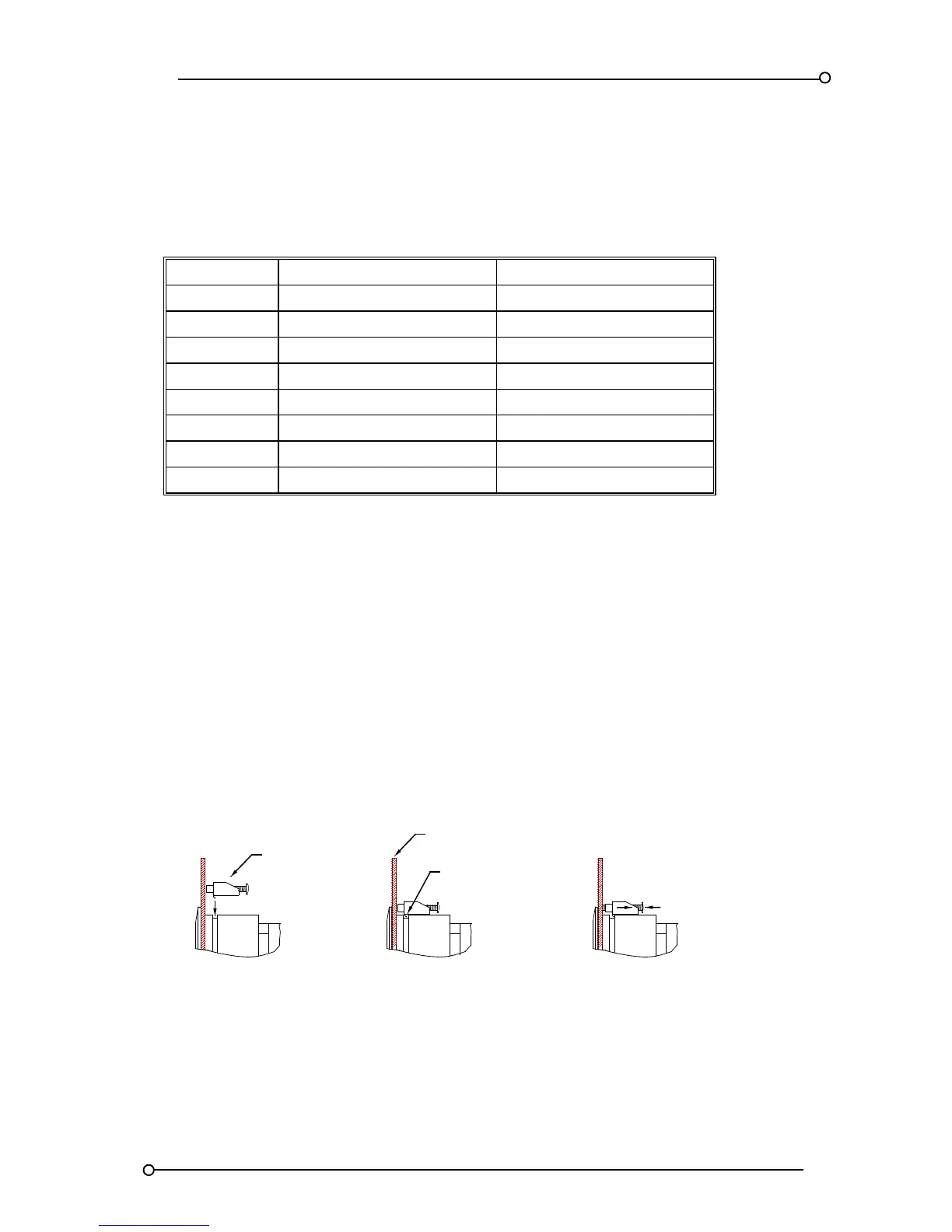

Panel Fixing Arrangement
Figure 2
