Samsung BD-P1600 User Manual

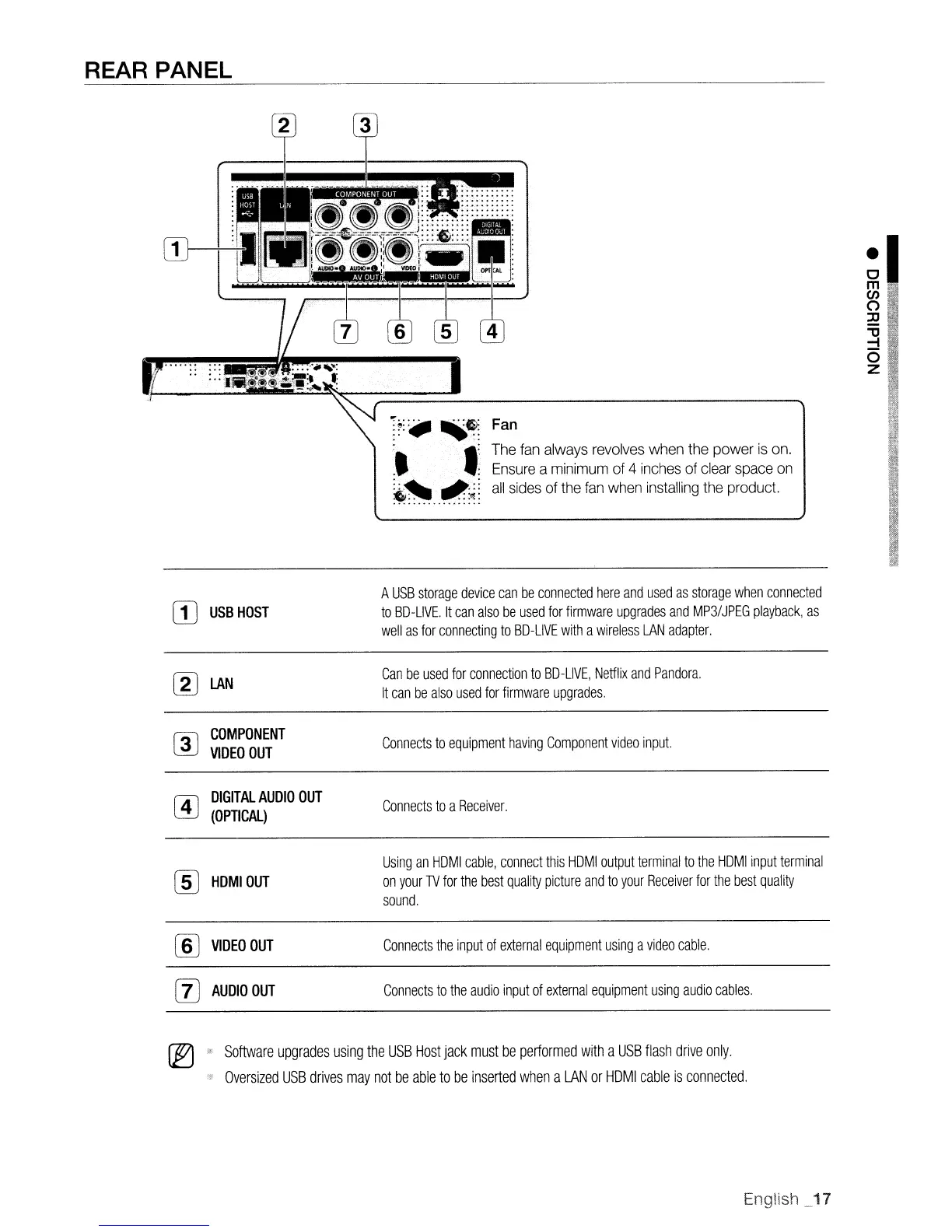

REAR PANEL
1~:'" ~~: Fan
: ,: The fan always revolves when the power is on .
., ;
Ensure a minimum of 4 inches of clear space on
~~ .. ~~~ ~ all sides of the fan when installing the product.
CD USB HOST
[gJ
LAN
rn
COMPONENT
VIDEO OUT
@J
DIGITAL AUDIO OUT
(OPTICAL)
(ID
HDMIOUT
(§J
VIDEO OUT
CIJ
AUDIO OUT
A USB storage device can be connected here and used as storage when connected
to BO-L1VE. It can also be used for firmware upgrades and MP3/JPEG playback, as
well as for connecting to BO-L1VE with a wireless LAN adapter.
Can be used for connection to BO-L1VE, Netflix and Pandora.
It can be also used for firmware upgrades.
Connects to equipment having Component video input.
Connects to a Receiver.
Using an HOMI cable, connect this HOMI output terminal to the HOM I input terminal
on your TV for the best quality picture and to your Receiver for the best quality
sound.
Connects the input of external equipment using a video cable.
Connects to the audio input of external equipment using audio cables.
(EJ ., Software upgrades using the USB Host jack must be performed with a USB flash drive only.
Oversized USB drives may not be able to be inserted when a LAN or HOM I cable is connected.
English _.17

Samsung BD-P1600 Specifications

Video Output

HDMI video output	1080p, 1080i, 720p, 480p
CVBS output	480i
Component video out	1080i, 720p, 480p, 480i

Audio Output

audio out	1 rear
optical out	1 rear
audio D/A converter	24-bit/192KHz

Weight and Dimensions

dimensions	17.0” x 2.13” x 7.83”
weight	4.85 lbs.
