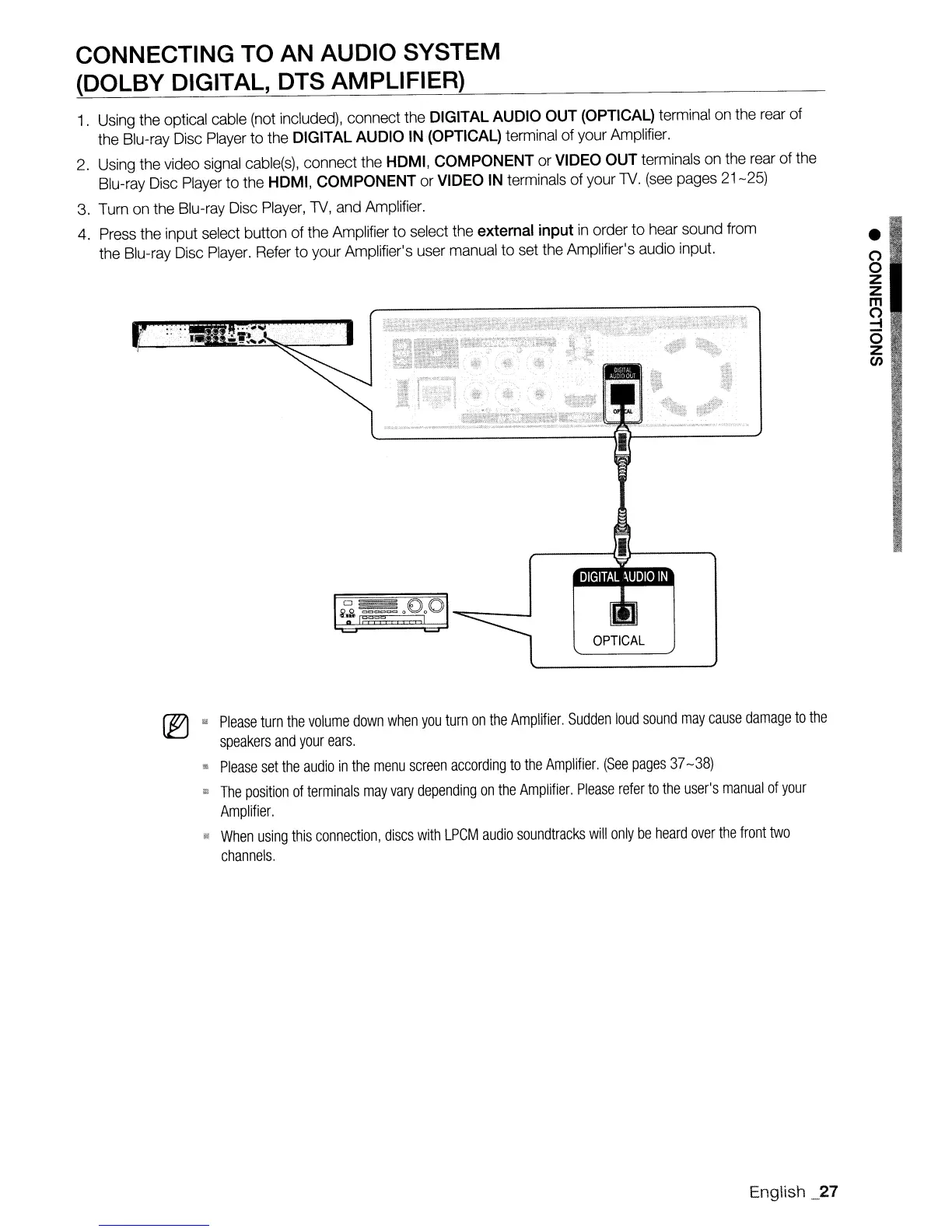

Samsung BD-P1600 User Manual

CONNECTING TO AN AUDIO SYSTEM
(DOLBY DIGITAL, DTS AMPLIFIER)
1. Using the optical cable (not included), connect the DIGITAL AUDIO OUT (OPTICAL) terminal on the rear of
the Blu-ray Disc Player to the DIGITAL AUDIO IN (OPTICAL) terminal of your Amplifier.
2. Using the video signal cable(s), connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the
Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminals of your N. (see pages 21-25)
3. Turn on the Blu-ray Disc Player, N, and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.
OPTICAL
• Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the
speakers and your ears.
!II Please set the audio in the menu screen according to the Amplifier. (See pages 37 -38)
... The position of terminals may vary depending on the Amplifier. Please refer to the user's manual of your
Amplifier.
1I When using this connection, discs with LPCM audio soundtracks will only be heard over the front two
channels.
English _27
•
o
o
z
Z
m
o
-I
o
z
en

Samsung BD-P1600 Specifications

Video Output

HDMI video output	1080p, 1080i, 720p, 480p
CVBS output	480i
Component video out	1080i, 720p, 480p, 480i

Audio Output

audio out	1 rear
optical out	1 rear
audio D/A converter	24-bit/192KHz

Weight and Dimensions

dimensions	17.0” x 2.13” x 7.83”
weight	4.85 lbs.
