cODOectloo~s _

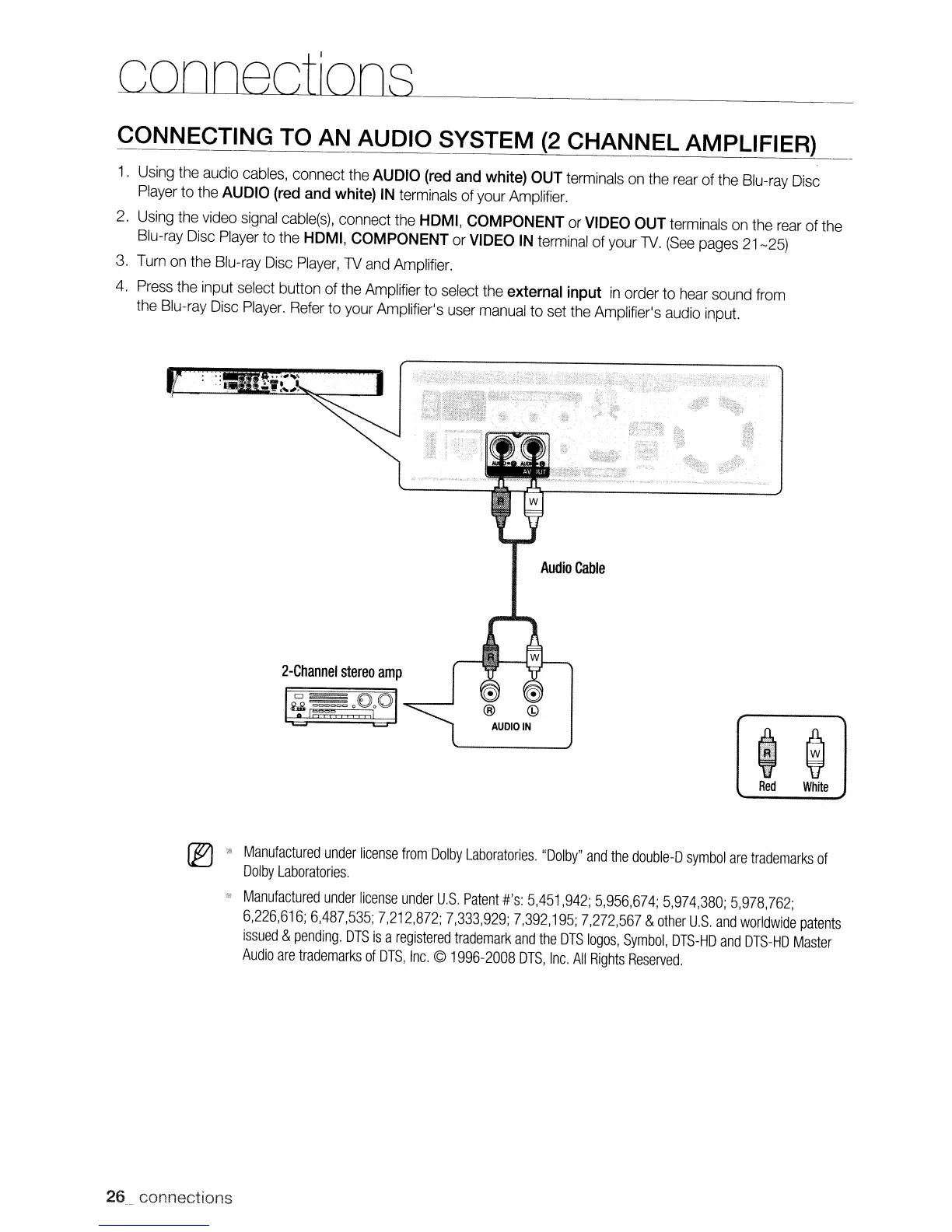

CONNECTING TO AN AUDIO SYSTEM (2 CHANNEL AMPLIFIER)
1. Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the Blu-ray Disc
Player to the AUDIO (red and white) IN terminals of your Amplifier.
2. Using the video signal cable(s). connect the HDMI, COMPONENT or VIDEO OUT terminals on the rear of the
Blu-ray Disc Player to the HDMI, COMPONENT or VIDEO IN terminal of your 1V. (See pages 21-25)
3. Turn on the Blu-ray Disc Player, 1V and Amplifier.
4. Press the input select button of the Amplifier to select the external input in order to hear sound from
the Blu-ray Disc Player. Refer to your Amplifier's user manual to set the Amplifier's audio input.
Audio Cable
2-Channel stereo amp
htIE&!~jQQ ,Oel ~--'
t @
Red White
" Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of
Dolby Laboratories.
'" Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents
issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master
Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
26 __ connections

Samsung BD-P1600 Specifications

Video Output

HDMI video output	1080p, 1080i, 720p, 480p
CVBS output	480i
Component video out	1080i, 720p, 480p, 480i

Audio Output

audio out	1 rear
optical out	1 rear
audio D/A converter	24-bit/192KHz

Weight and Dimensions

dimensions	17.0” x 2.13” x 7.83”
weight	4.85 lbs.
