Samsung BD-P1600 User Manual

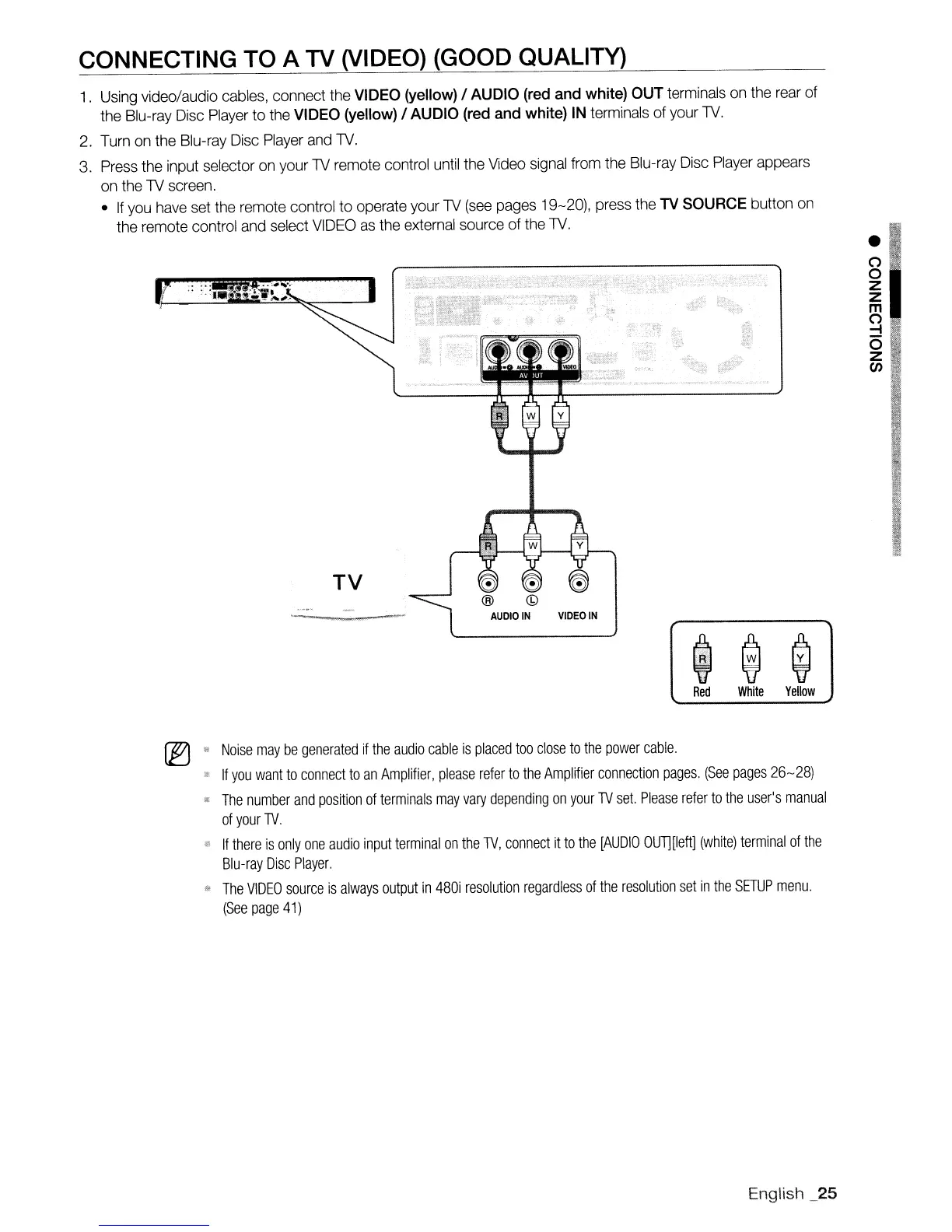

CONNECTING TO A TV (VIDEO) (GOOD QUALITY)
'.
,._----
•
(")
o
z
Z
m
(")
-t
5
z·
en
* ~ @
Red While Yellow
TV
1. Using video/audio cables, connect the VIDEO (yellow) I AUDIO (red and white) OUT terminals on the rear of
the Blu-ray Disc Player to the VIDEO (yellow) / AUDIO (red and white) IN terminals of your 1V.
2. Turn on the Blu-ray Disc Player and 1V.
3. Press the input selector on your 1V remote control until the Video signal from the Blu-ray Disc Player appears
on the 1V screen.
• If you have set the remote control to operate your 1V (see pages 19-20), press the TV SOURCE button on
the remote control and select VIDEO as the external source of the 1V.
(EJ ~ Noise may be generated if the audio cable is placed too close to the power cable.
,. If you want to connect to an Amplifier, please refer to the Amplifier connection pages. (See pages 26-28)
"
The number and position of terminals may vary depending on your TV set. Please refer to the user's manual
of your TV.
il If there is only one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the
Blu-ray Disc Player.
fI The VIDEO source is always output in 480i resolution regardless of the resolution set in the SETUP menu.
(See page 41)
English _25

Samsung BD-P1600 Specifications

Video Output

HDMI video output	1080p, 1080i, 720p, 480p
CVBS output	480i
Component video out	1080i, 720p, 480p, 480i

Audio Output

audio out	1 rear
optical out	1 rear
audio D/A converter	24-bit/192KHz

Weight and Dimensions

dimensions	17.0” x 2.13” x 7.83”
weight	4.85 lbs.
