Component Connection
For the LED 7500 series models

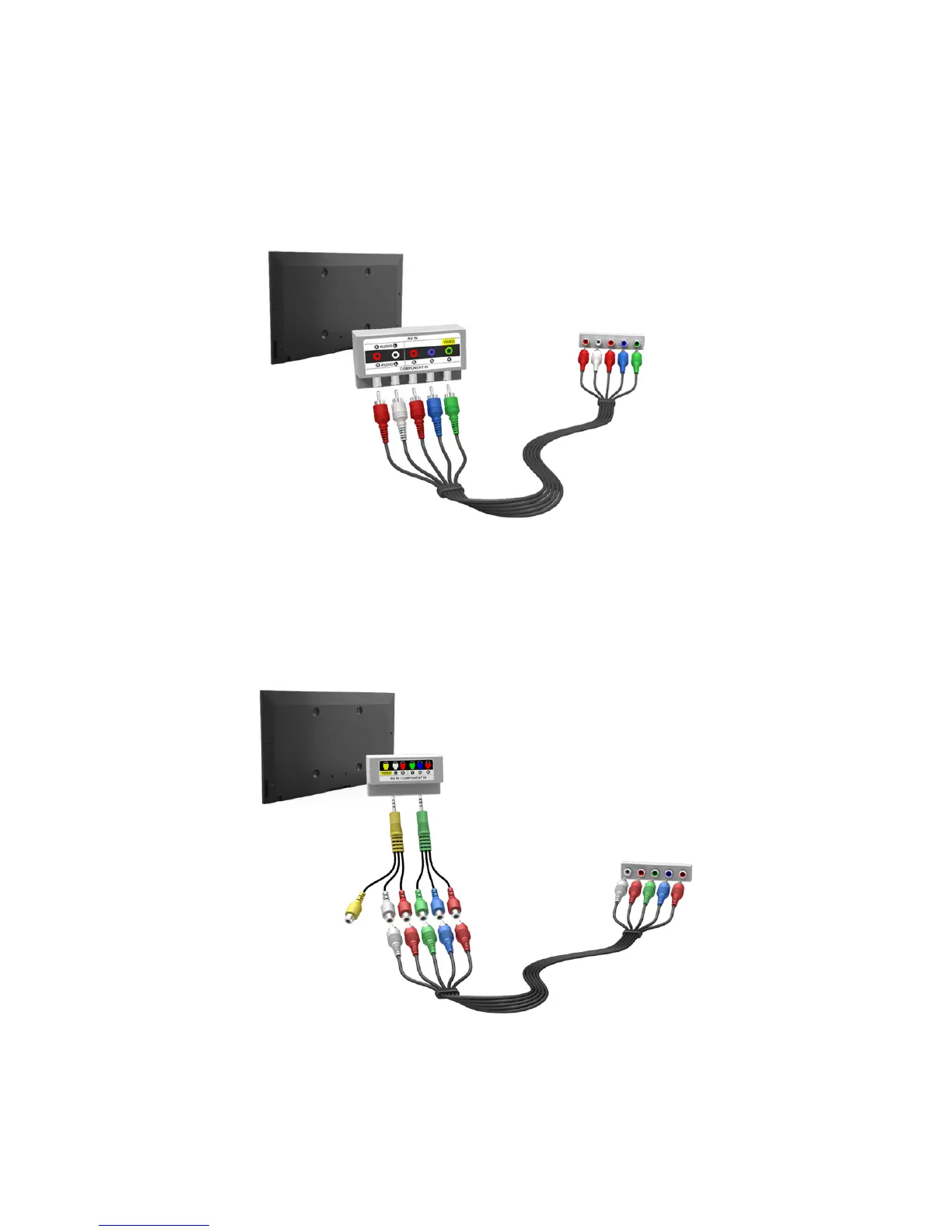

Refer to the diagram and connect the TV’s component video and audio input connectors to the
external device’s component video and audio output connectors using a component cable, so that the
connectors of the same colour connect to each other, as shown in the figure.
For the LED 8000, 8500, PDP 8500 series models
Refer to the diagram and connect a component cable to the provided two jack-to-RCA extension
cables, so that the connectors of the same colour connect to each other. Plug the two jacks into the
TV’s component video and audio input connectors, and plug the five connectors on the other end into
the external device’s component video and audio output connectors, as shown in the figure.
