88
COIN HANDLING
12
This product comes equipped with a Money Controls SR3 Coin Acceptor. To adjust the price of play ALL
credit setting are adjusted via the EXCEL CREDIT BOARD.
IMPORTANT!
The CREDIT SETTINGS within the SYSTEM TEST MODE must be set to 1 coin 1 credit to allow the
CREDIT BOARD to function correctly.
The VTS BD has a built in Credit Board. This is controlled by 2 DIL Switches. These allow the operator to
select the price of play, type of coin acceptor and region.

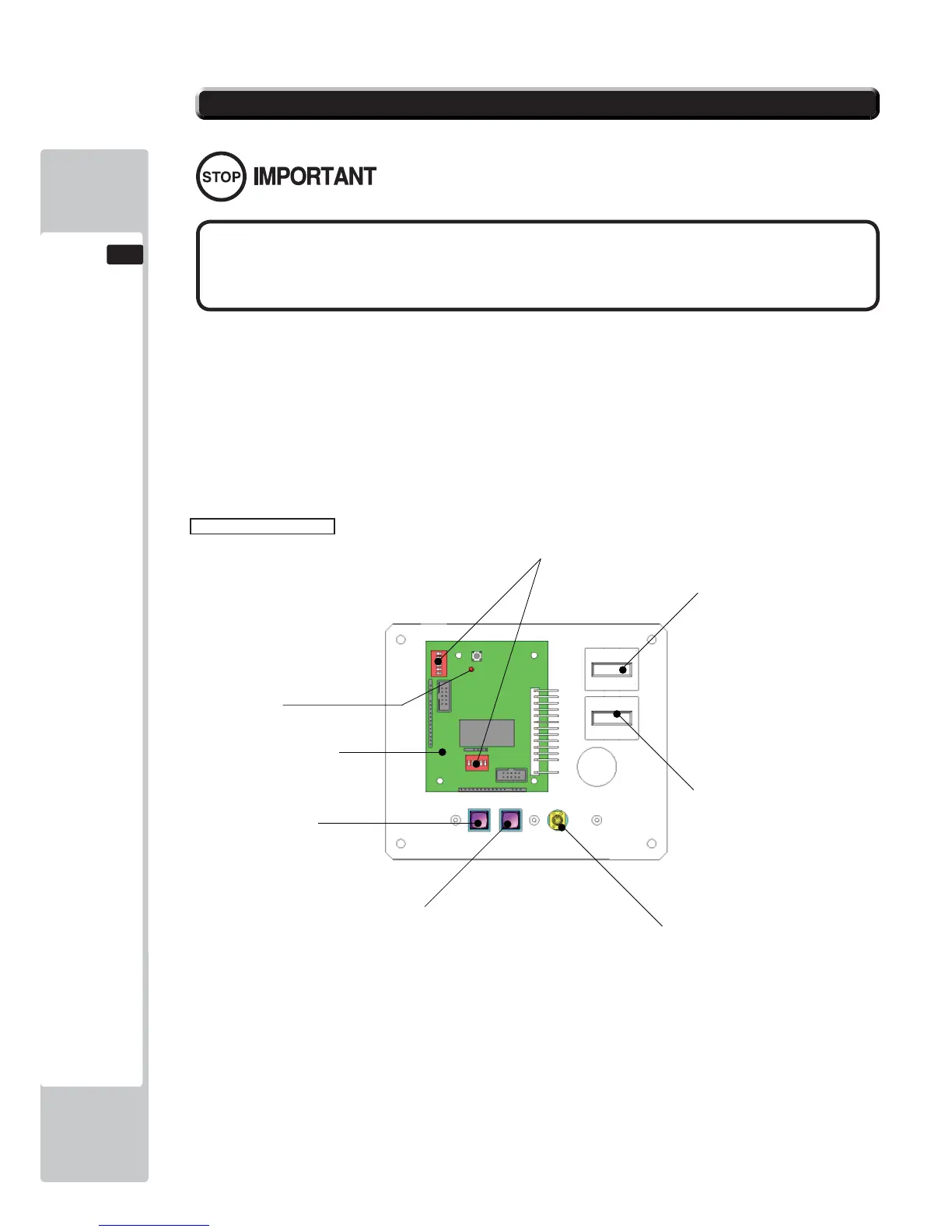

EXCEL Credit Board
12-3 ADJUSTING THE PRICE OF PLAY (EXCEL)
DIL SW3 (Regional Settings)
Adjust these switches to specify the type of Coin Acceptor used and currency.
Default = SW1&SW2 ON - SR3 in parallel mode, Sterling.
TEST BUTTON Provides access to the TEST MENU when pressed.
SERVICE BUTTON Provides a SERVICE CREDIT when pressed
Status LED Flashes when functioning.
CHANNEL 1 To Coin Acceptor (SR3 TYPE.)
DIL SW1 (credit settings) Adjust to required price of pay.
VOL CONTROL MAIN VOLUME ADJUSTMENT (FRONT SPEAKERS)
EXCEL CREDIT PCB
STATUS LED
TEST BUTTON
DIP SWITCHES
COUNTER 1
COUNTER 2
VOLUME CONTROL
SERVICE BUTTON
● The price of play is determined by the confi guration of switches located on
either an EXCEL board or VTS board. The type of board used is determined by
product location. Switch settings for both types of board remain the same.
