Sega SONIC DASH EXTREME User Manual

LAMPS AND LIGHTING
13
97
1

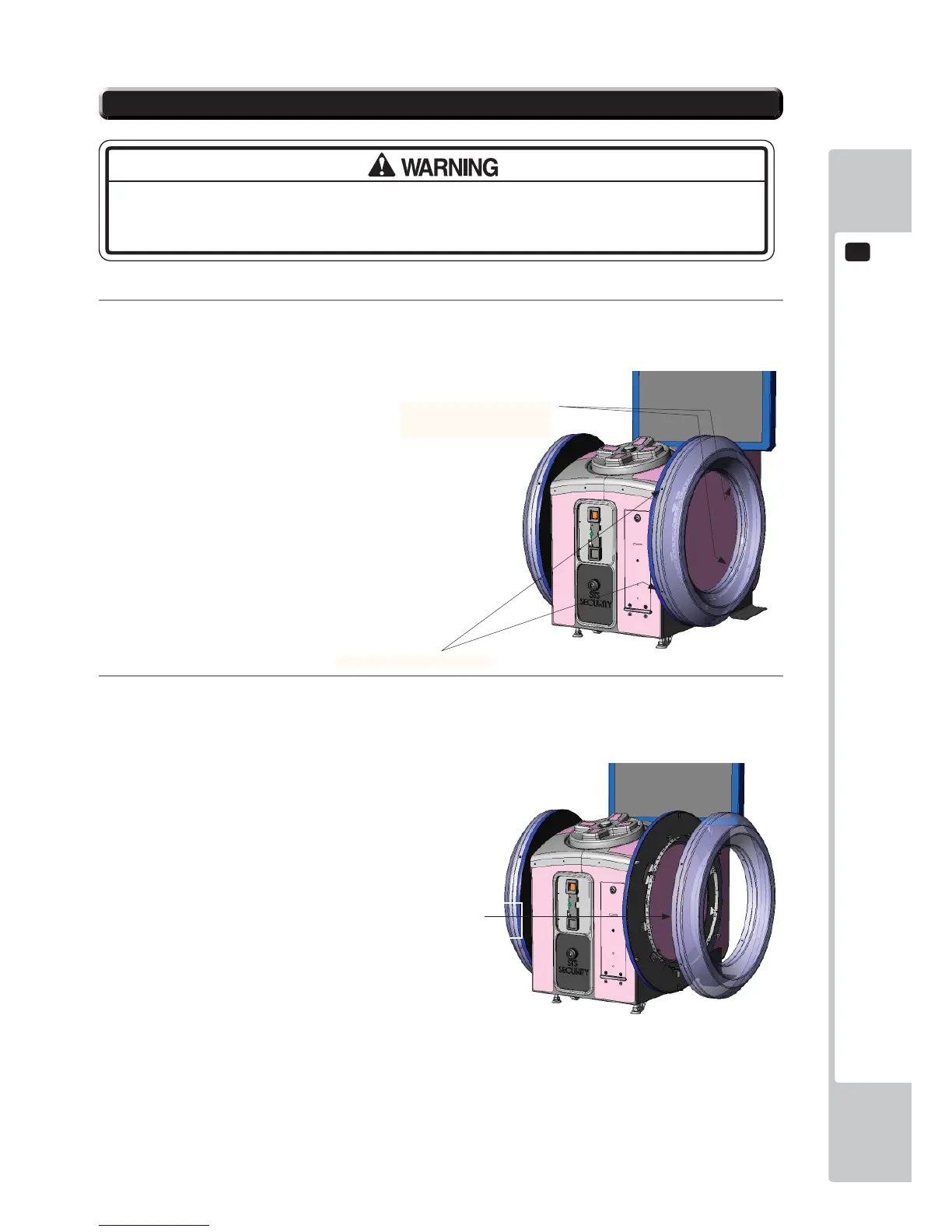

To remove the FULL HOOP Outer cover, locate and remove the (9) M4x12 SKT BH PAS (029-B00412).
Remove (5) from the outer edge and (4) from the inner edge.
2
Carefully remove the COVER SIDE RING and place fl at to one side.
13-4 FULL HOOP LED LIGHTING
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED
OFF BEFORE ATTEMPTING TO CARRY OUT THIS WORK
Fixing Points x (4) INNER
COVER SIDE RING
SND-1402-01UK
Fixing Points x (5) OUTER
