13-3 HALF HOOP LED LIGHTING
1

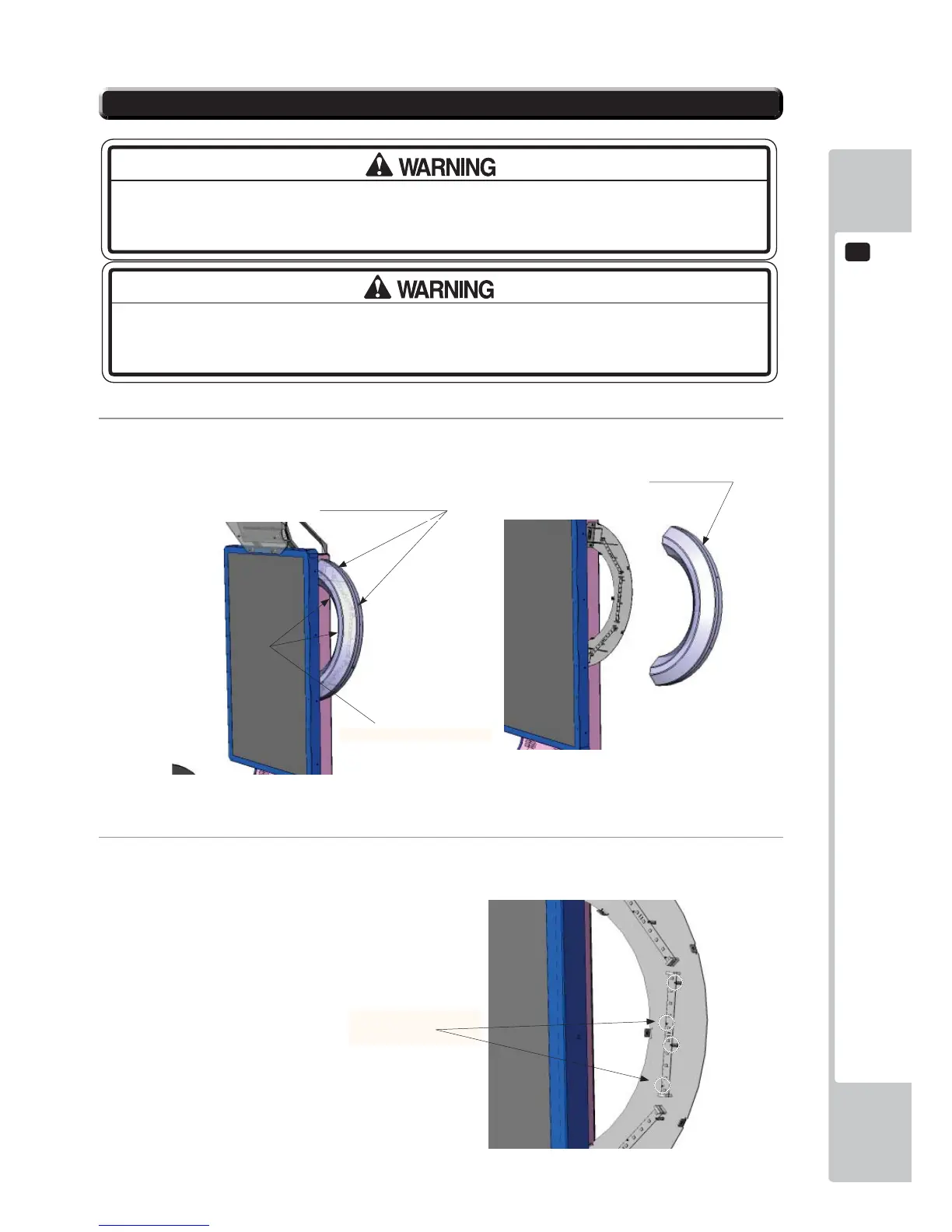

To remove the HALF HOOP Outer cover, locate and remove the (7) M4x12 SKT BH PAS (029-B00412).
Remove (4) from the outer edge and (3) from the inner edge.
2
Once the outer cover is removed, disconnect the suspected LED Bd at both ends and remove the (4) M3x16
SKT BH BLK fi xings which secure the LED Bd to the metal frame.
THIS WORK ON TOP OF THE CABINET, SHOULD NOT BE UNDERTAKEN WITHOUT THE
USE OF A SUITABLE STEP OR FOOTSTOOL.
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED
OFF BEFORE ATTEMPTING TO CARRY OUT THIS WORK
Fixing Points x (4) OUTER
(4) M3x16 SKT BH BLK
020-B00316-0B
HALF HOOP
Fixing Points x (3) INNER
To Next Page
