BASIC OPERATION
CHAPTER 1 | FCM2041-U3 OPERATOR INTERFACE MANUAL
1-11
Contact: John Sample
Phone #: 973.555.1234
AREA FIRE EQUIP:
AREA CONTAINS:
DETAILS
MAP DEVICES
BACK
ALARM LOCATION:
1st Floor Reception Area
- Lobby entrance
# Devices in ALARM: 3
ALARM TYPES:
Smoke, Heat, Flow
First Floor Reception Area

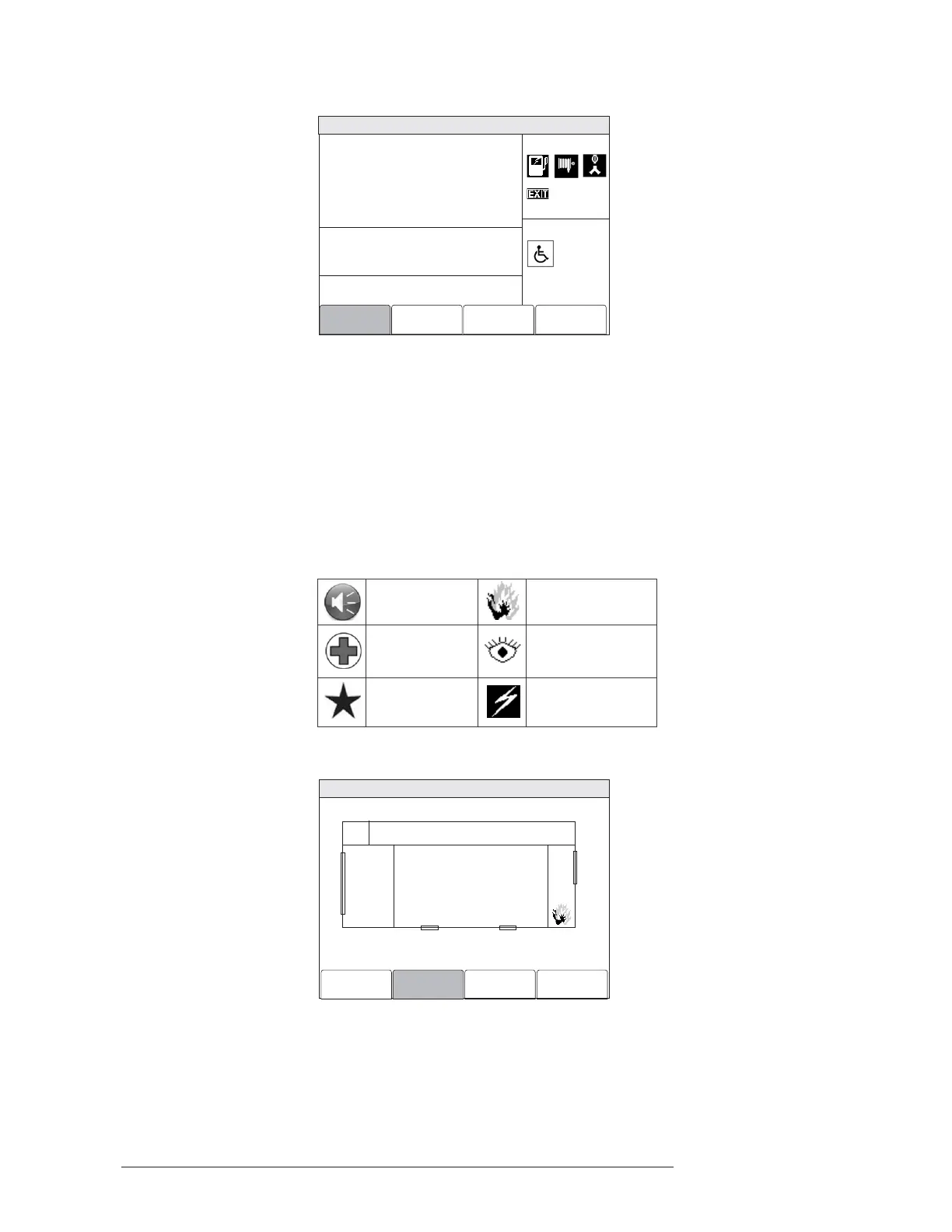

Figure 1-8
Alarm Details Screen
Press the Map soft key to display a map showing the location of the event, provided
the information has been programmed using the Zeus tool. Refer to Figure 1-9. Maps
can be programmed to provide icons showing the event type. These icons are the
same ones that represent Alarm, Security, Supervisory and Trouble on the OI panel. The
map can also be programmed to show the location of the OI (“You are here”). All
members of a group will display the same map.
List of Icons:
Trouble
(Fire or MNS)
MNS event
(priority 1 and 2)
Emergency (ULC)
Gas (UL)
Other (ULC)
Fire Alarm
Supervisory
DETAILS
SHOP
LAV
HALL
RECEPTION
MAIN STREET
SHIPPING
LOADING DOCK
MAP DEVICES
BACK
First Floor Reception Area
Figure 1-9
Sample Map Screen
