5. Supported KNX tools
5.1 ETS
ETS is an engineering tool and is used to fully commission the
RDF800KN../RDF800KN/VB/RDD810KN.. KNX room thermostats.
ETS can implement the following functions:
· Define and download the physical address
· Define and download the application (plant type, control sequence)
· Set up and download the thermostat's control parameters
· Set up and download group addresses
This document does not describe how to operate ETS and how to set up a device.
Refer to the KNX Manual [4] for more details.
Setting RDF800KN../RDF800KN/VB/RDD810KN.. KNX is only supported by
ETS.
ETS can be updated online.

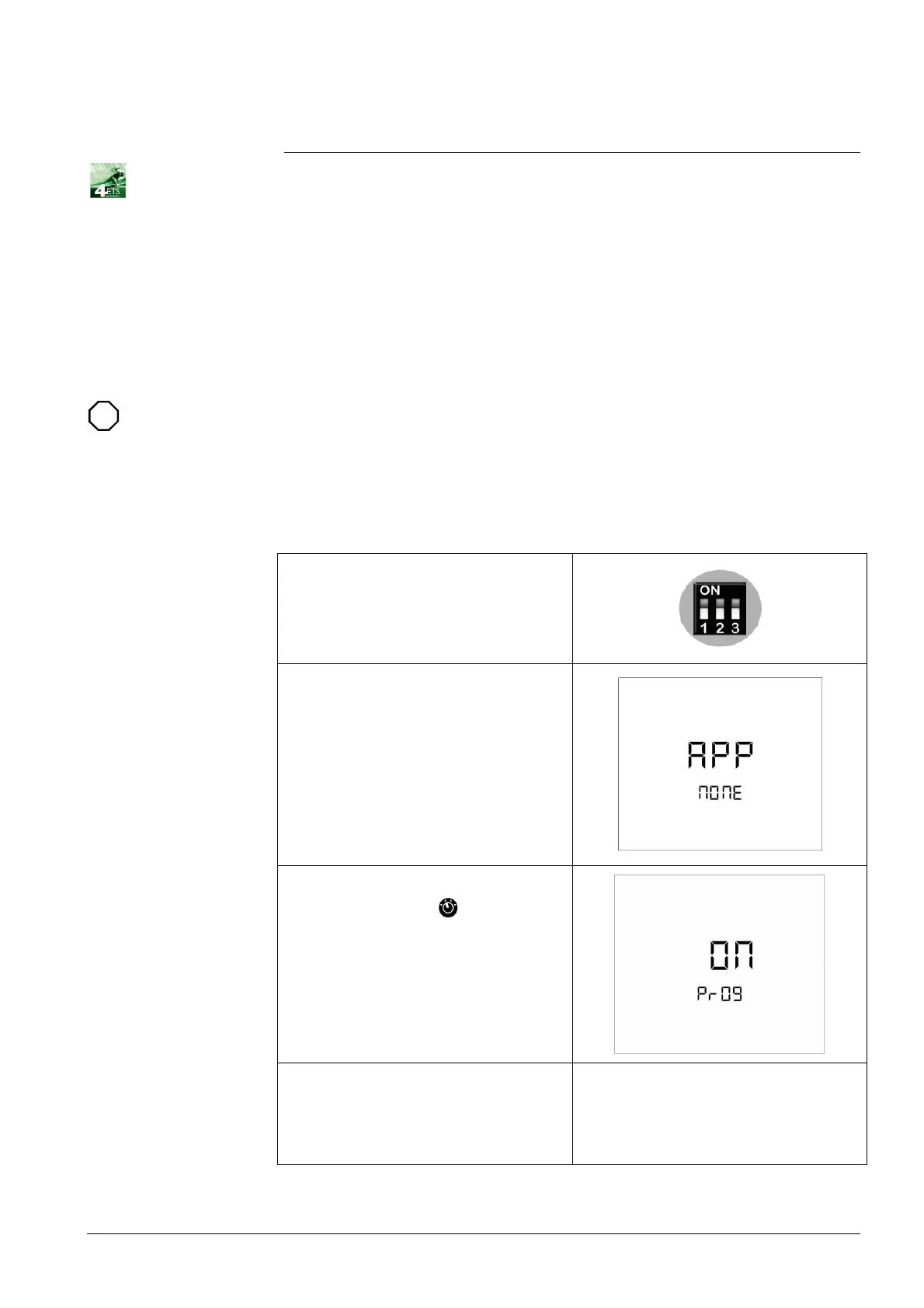

5.1.1 Commissioning – downloading using ETS
1. Set the DIP switches to OFF (remote
configuration) before snapping the front
panel to the mounting plate
(RDF800KN.., RDF800KN/VB only)
2. When the thermostat is powered up
initially, the display on the right side
indicates that no application is
downloaded or has been selected
before.
3. Touch and hold the icon for more
than 5 seconds to activate programming
mode. The display on the right side
indicates that the thermostat is ready for
downloading the address and the
applications.
4. Touch ON to exit.
Note:
Each time the application is changed, the
thermostat reloads the factory settings for all
control parameters, except for KNX device
ETS
