Description
3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
41
3.4.2.3
SCALANCE X414-3E switch functionality
CPU module
The CPU module is in slot 4.
There are four DIL switches on the CPU module with which the switch can be configured.
This module also has four LEDs for displaying parameter assignments that can be modified
by the user with the DIL switch and a SELECT / SET button.

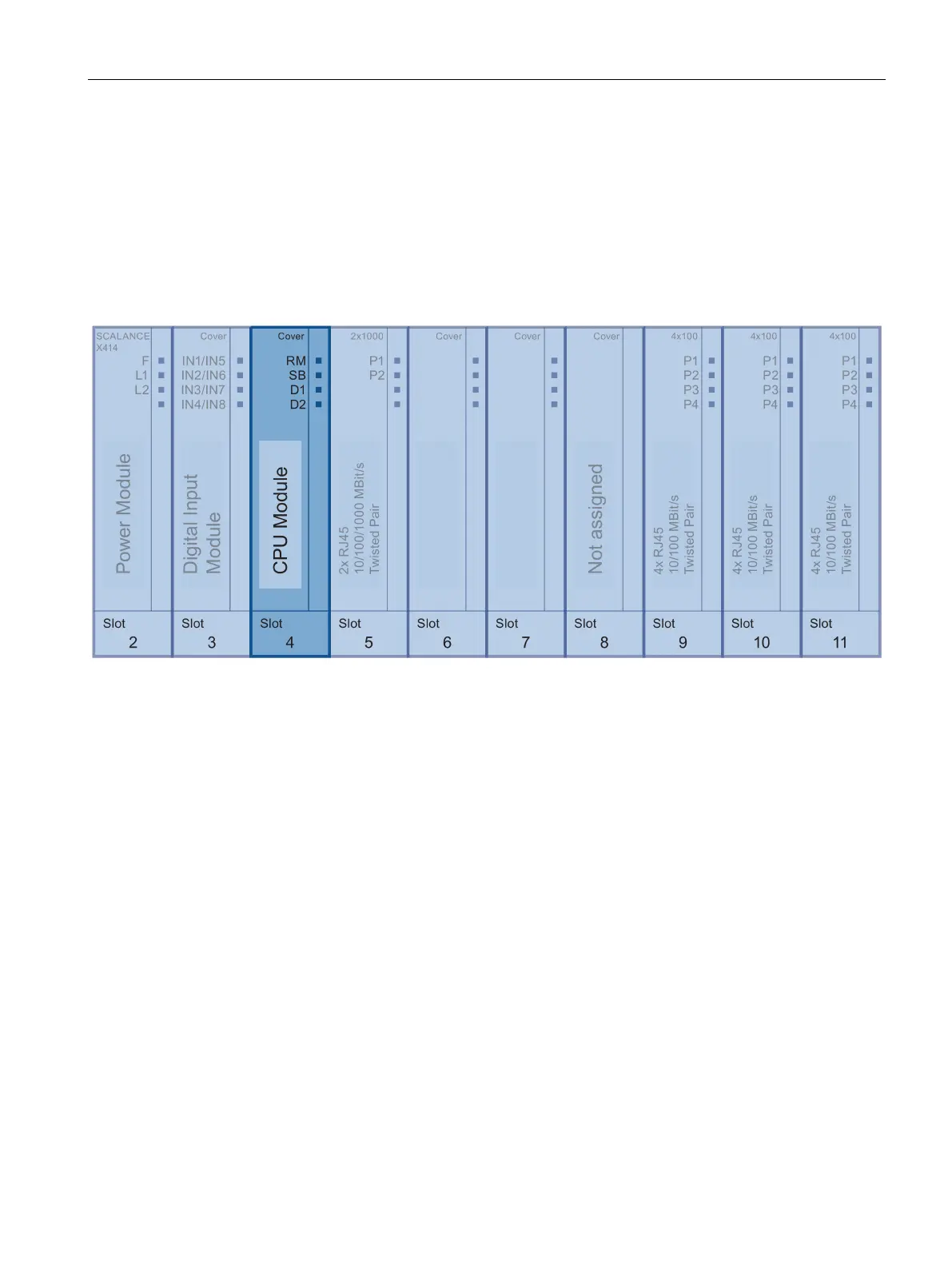

Figure 3-13 Slot of the CPU module
Serial port
The CPU module of the SCALANCE X414-3E has an RS-232 port.
This is used for the following purposes:
● Firmware updates
● Management with the aid of the command interpreter (Command Line Interpreter, CLI)
including setting of the IP address information.
Input to the command interpreter is over command lines.
For more detailed information, refer to the configuration manual "SCALANCE X-300
SCALANCE X-400 Industrial Ethernet Switches".
