3.4 Description of the product
SCALANCE X-400
Operating Instructions, 06/2015, C79000-G8976-C186-12
61
SCALANCE X414-3E extender modules
3.4.5.1
Extender for twisted pair EM495-8
Eight additional 100Base-TX ports
-8 extender module can be used only in connection with the SCALANCE X414-
-2 has no port for an extender module.
The extender module for twisted pair transmission provides an additional eight ports for
connecting twisted pair cables. The TP cable is attached to an 8-pin RJ-45 jack with securing
collar.
Note
The twisted pair extender CANNOT be installed during operation.
The transmission rate of the Ethernet ports is 10 Mbps or as a Fast Ethernet port 100 Mbps.
No media module is required for data transfer with this extender module.

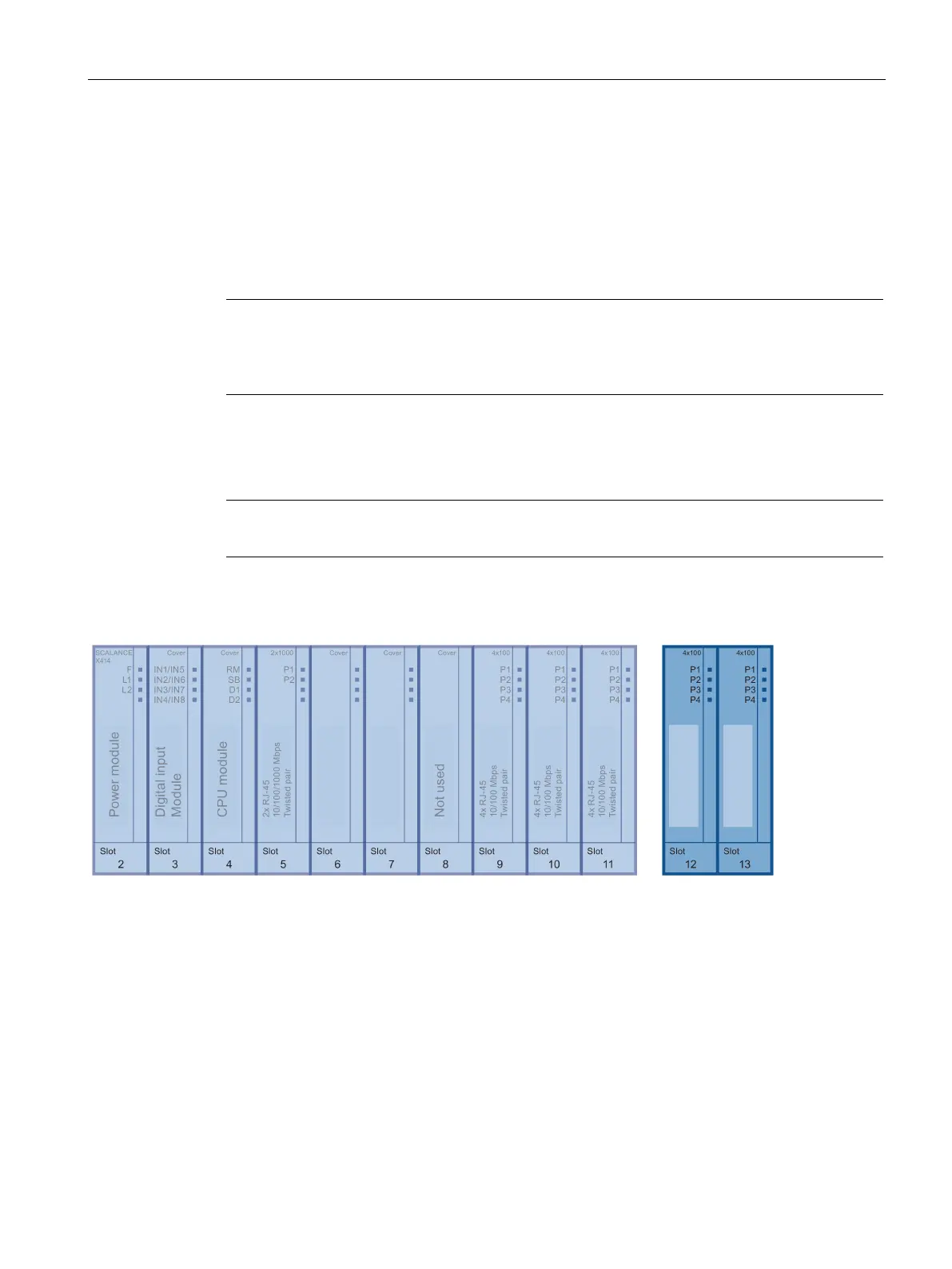

Figure 3-27 Basic device with twisted pair extender module
