Example of the Use of Network Components

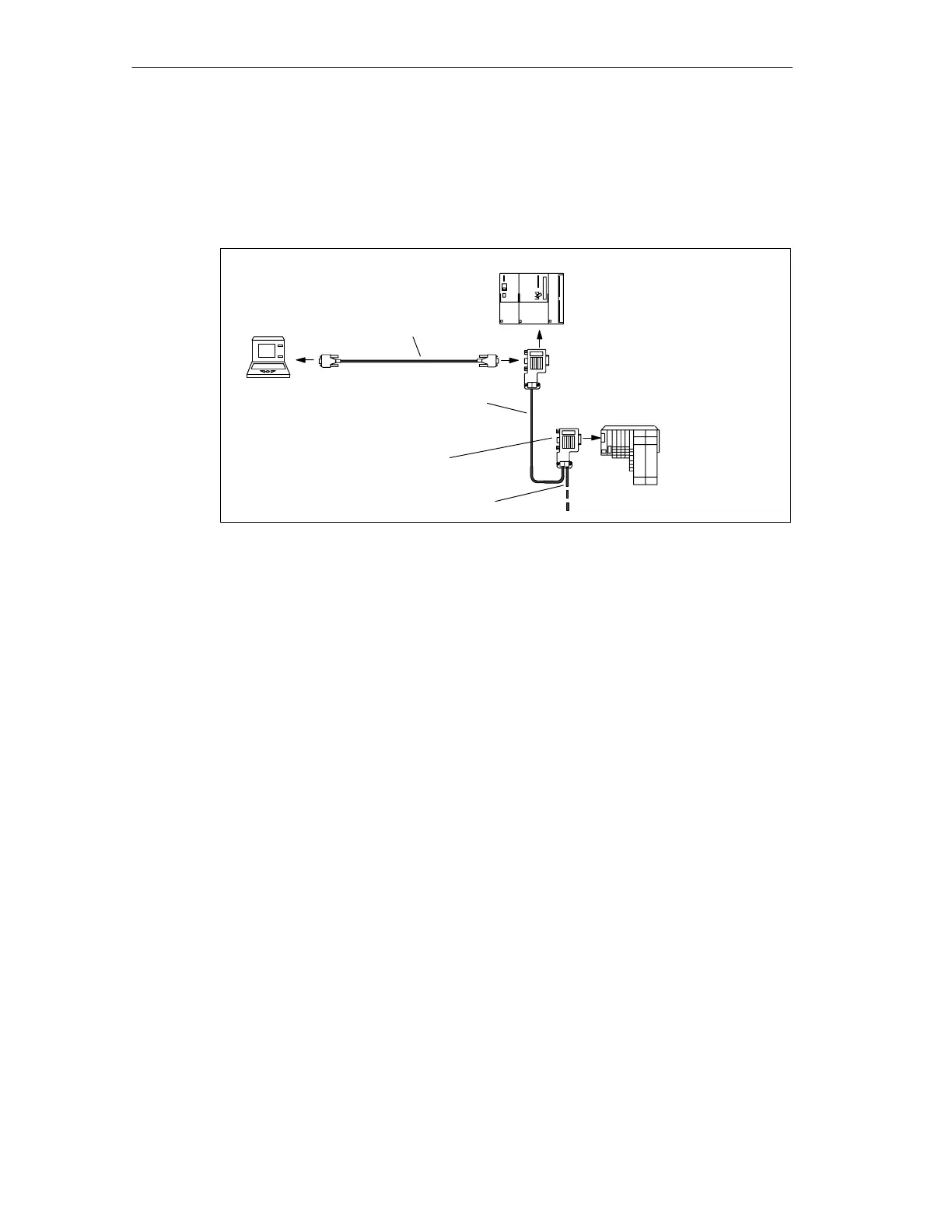

The figure below shows the example from Figure 3-2 with the use of the network
components. Connecting the bus cable to the bus connector is described in the
Product Information document for the bus connector.
S7-300 (DP master)
ET 200S
PG
Programming device connecting cable
Bus cable
Bus connector
with a programming device socket
Connector
Bus cable
Figure 3-5 Connecting the DP Network
Connecting the IM 151/CPU FO
You can find information on the connection and wiring of fiber-optic cables in the
chapter on wiring and fitting in the ET 200S Distributed I/O Device manual.
