Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
131
Replacing device fans
7.3.2.1
Remove the fan cover
Requirement
● The front door is open. Read the information under "Opening the front door (Page 63)".
● Information on the position of the fan cover of the front fan is available under "Front panel
(Page 16)".
Open the front door at least at an
angle of approx. 45°.
Take hold of the recessed grip of
the fan cover
①.

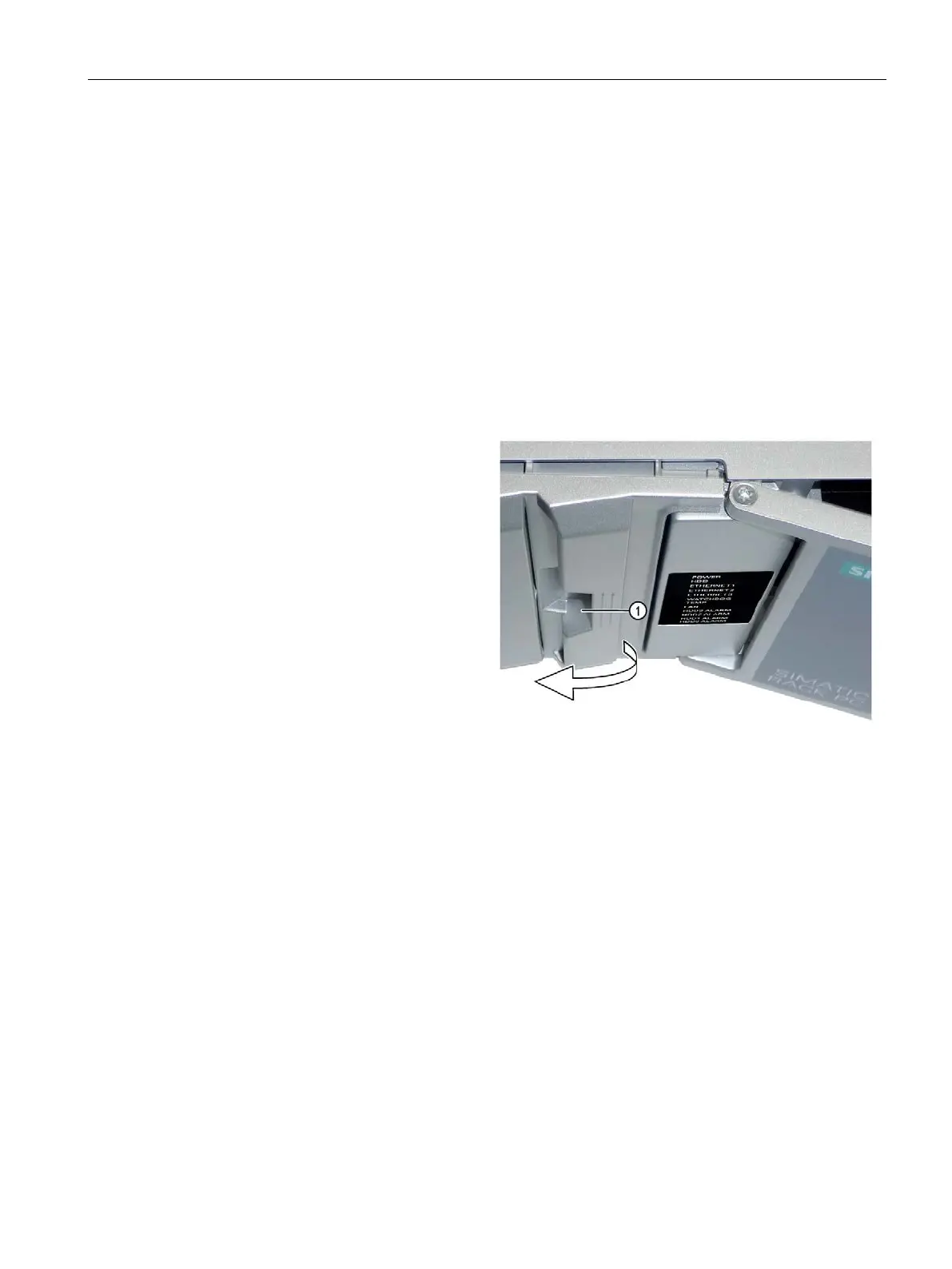

Open the fan cover in the
direction of the arrow and remove
it.
