Product description
1.4 External design of the device
SIMATIC IPC847E
20 Operating Instructions, 10/2018, A5E43920357-AA
1.4.5
Interfaces and connections
1.4.5.1
Interfaces
Note
You can find
detailed information on interfaces under "External interfaces (Page 189)".

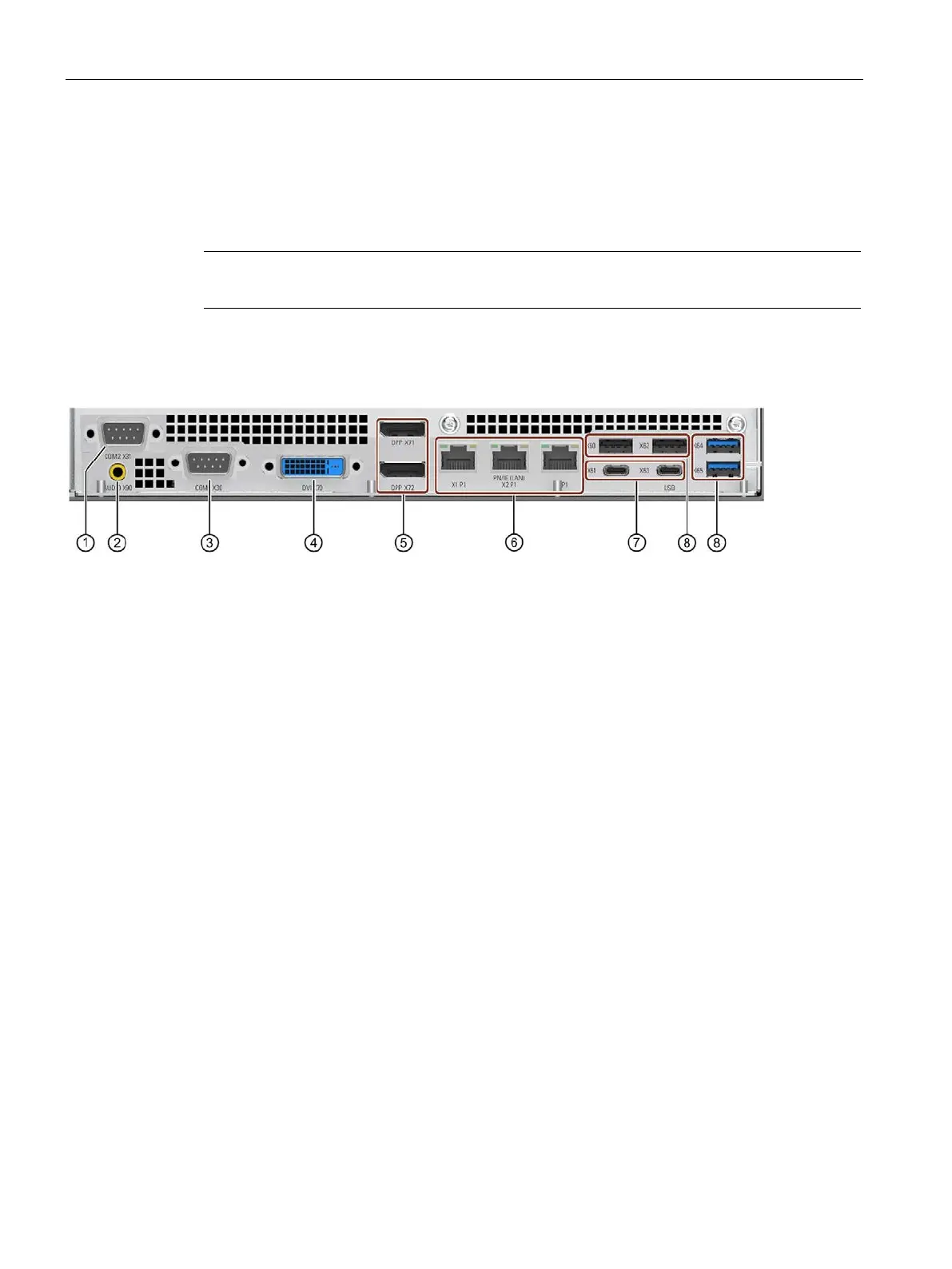

Interfaces at rear of device
①
COM2 X31
(optional)
Serial interface 2
(V.24), 9-pin D-sub socket (optional)
②
Audio X90
UAJ connector for audio devices, 2.5
mm jack socket
③
COM1 X30
Serial interface 1 (V.24), 9
-pin D-sub socket
④
DVI X70
Connection for monitor
with DVI-D interface
⑤
2 x DPP X71/X72
Connections for DisplayPort:
•
Connection for monitors with DisplayPort interface
•
Connection for monitors with VGA interface via DP to VGA
adapter, see Hardware accessories (Page 30)
•
Connector for monitors with DVI interface via DP-DVI-D
adapter, see Hardware accessories (Page 30)
⑥
3 x Ethernet
Connections for Ethernet RJ45 for 10/100/1000 Mbps
Ethernet
X1/P1 is iAMT-capable
The Ethernet interfaces are numbered on the enclosure. The
numbering by the operating system can differ.
⑦
2 x USB
X61/X63
USB 3.1 GEN 2 Type C high current, backwards compatible with
USB 3.0/2.0/1.1
⑧
2 x
2 USB
X60/X62/X64/X65
USB 3.1 GEN 2 Typ A high current, backwards compatible with
USB 3.0/2.0/1.1
