Expanding and assigning parameters to the device
6.2 Expansion cards
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
93
Removing expansion cards
Requirement
● The device is open, see important information in "Open the device (Page 89)".

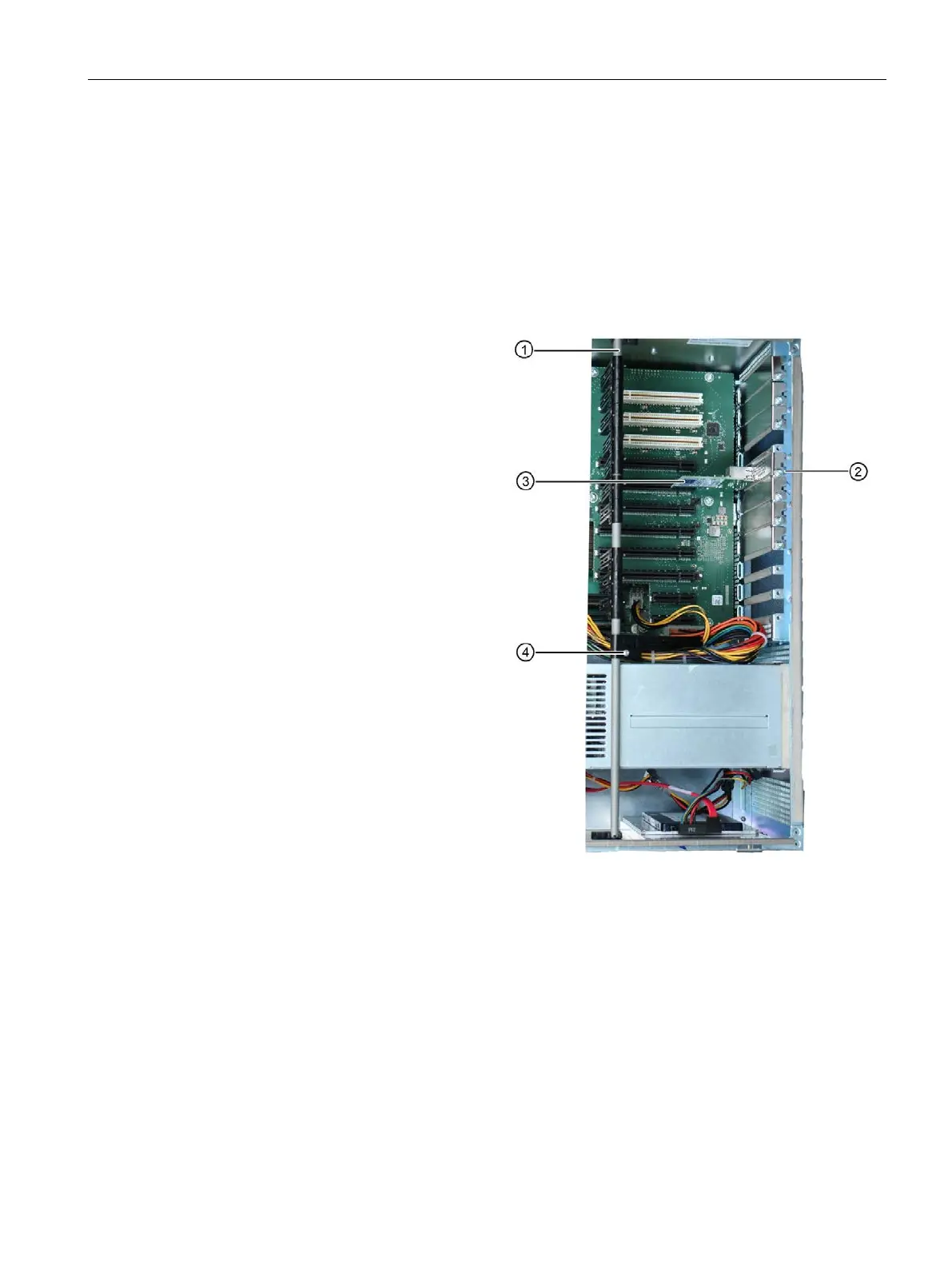

Loosen the cable holder
.
Hold the latched bar with the card
retainer
① on both ends and
remove it by pulling it upwards.
Disconnect all cables and the
screw
② of the expansion card you
wish to remove.
Remove the expansion card from the
slot ③.
If you do not wish to install a new
expansion card, install the
corresponding slot bracket with the
screw
②.
