Expanding and assigning parameters to the device
6.2 Expansion cards
SIMATIC IPC847E
92 Operating Instructions, 10/2018, A5E43920357-AA

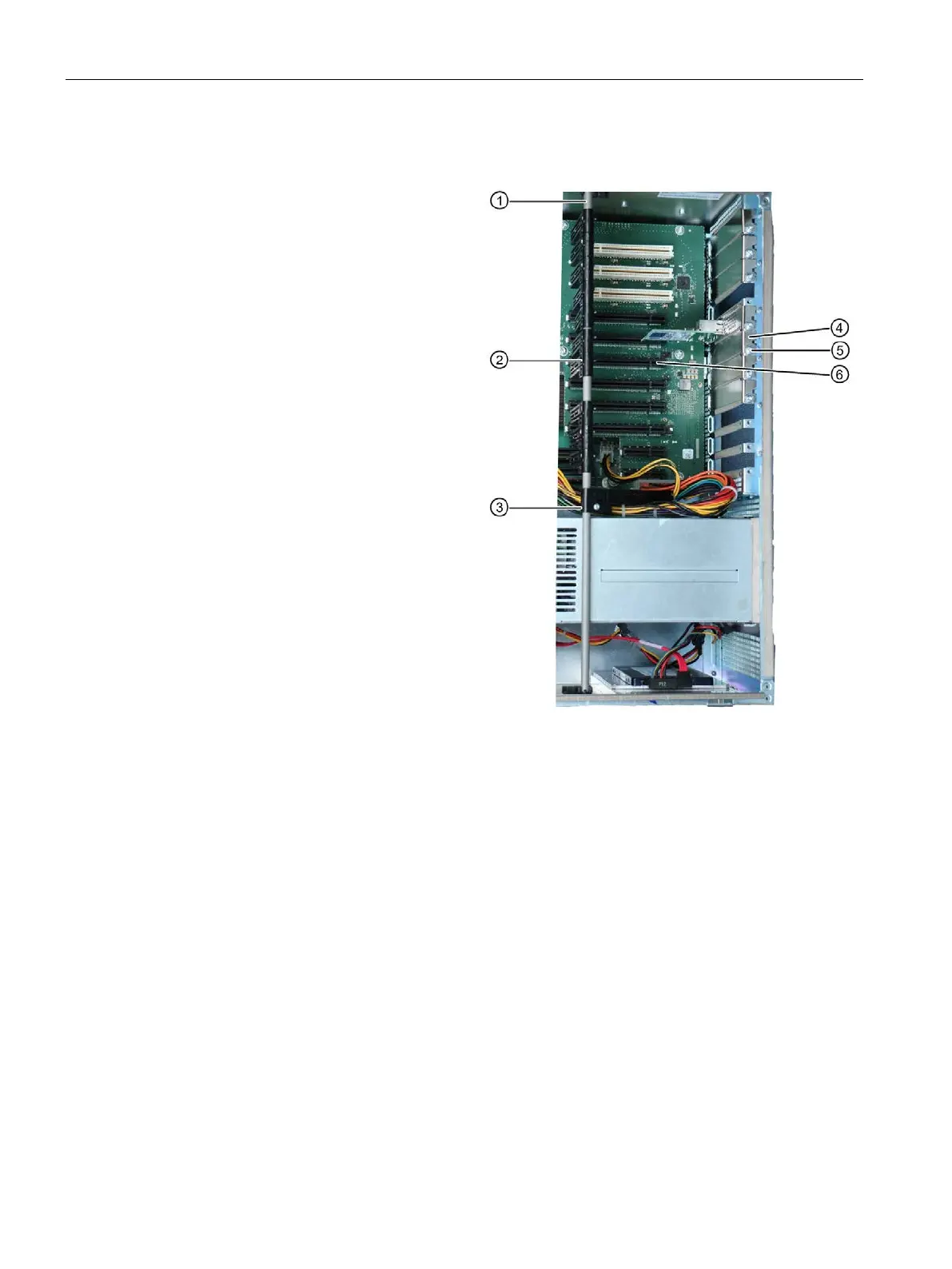

Procedure
1.
Loosen the cable holder
③
.
2.
Hold the bar with the card
retainer
① on both ends and
remove it by pulling it upwards.
The bar is latched on both ends.
3.
Remove the slot bracket ④ for the
required slot.
4.
Insert the expansion card into the
free slot
⑥.
5.
Secure the expansion card with the
screw
⑤.
6.
Reinstall the rod with the card
retainer
①.
7.
Detach the card retainer in question
and place it on the expansion card in
the slo ⑥.
8.
Secure the card retainer with the
locking screw
②.
If you are installing a short
expansion card, remove the locking
screw from the card retainer and
install it in the opposite hole.
If you are installing a low-profile
expansion card, use the longer card
holder for mounting (included in
product package).
9.
Secure the cables with the cable
holder
③.
10.
Close the device.
