A.1 Motherboard
SIMATIC IPC847E
172 Operating Instructions, 10/2018, A5E43920357-AA
A.1.2

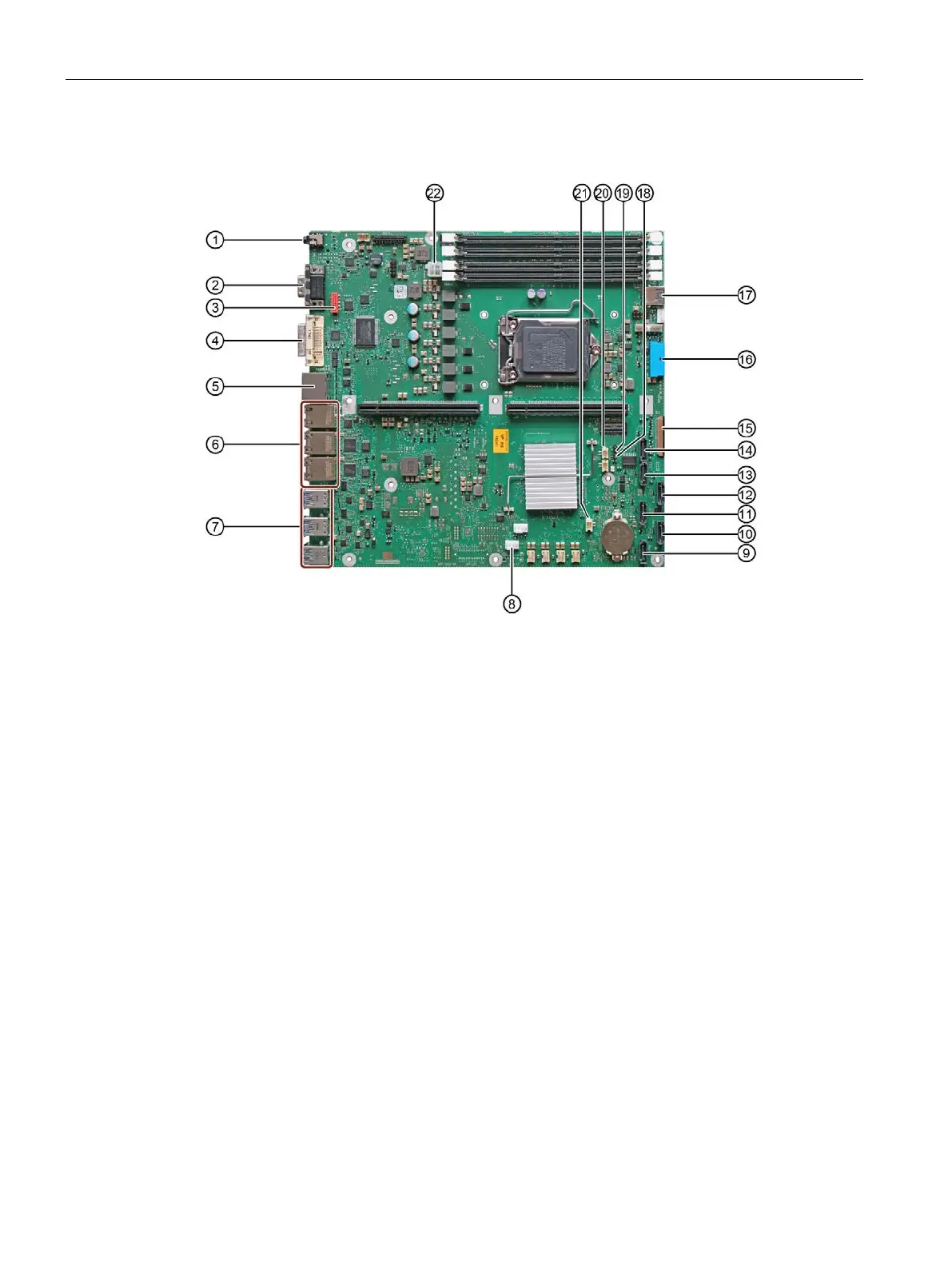

Position of the interfaces on the motherboard
1
Audio UAJ (X90)
8
Front fan
17
USB 3.0 (internal)
1x type A
2
COM1 (X30)
9
SATA 5 (Port 5)
18
Unlock ME
3
COM2 (X31)
10
SATA 4 (Port 4)
19
BIOS Recovery
4
DVI-D (X70)
11
SATA 3 (Port 3)
20
On-off button
5
DPP (X71/X72)
12
SATA 2 (Port 2)
21
Reset button
6
LAN 1 (X1 P1)
13
SATA 1 (Port 1)
22
CPU Power
LAN 2 (X2 P1)
14
SATA 0 (Port 0)
LAN 3 (X3 P1)
15
Status indicator on
front
On
-off button
Reset button
7
USB 3.1
(X60
-X65)
4x type A
2x type C
16
USB 3.0 behind
front door
2x type A
