Hardware description
A
A.1
Motherboard
A.1.1
Layout of the motherboard

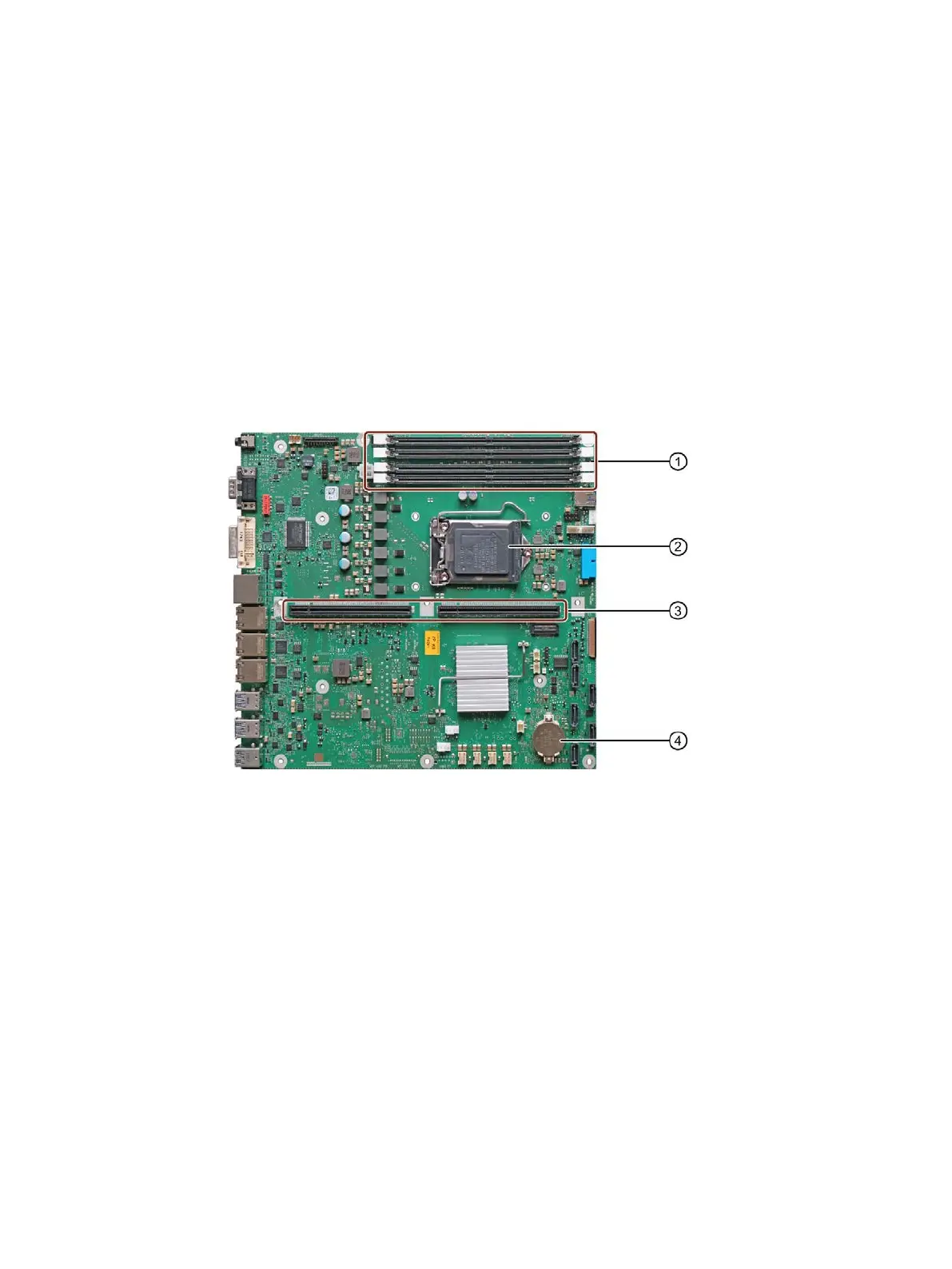

The motherboard consists of these main components: Processor and chipset, four slots for
memory modules, internal and external interfaces, Flash BIOS and the backup battery.
①
Slots for memory modules
②
Processor
③
Slot for the bus board
④
Backup battery
Technical features of the motherboard
Technical features of the motherboard can be found under "Technical specifications of the
motherboard (Page 158)".
