1.4 External design of the device
SIMATIC IPC847E
18 Operating Instructions, 10/2018, A5E43920357-AA
1.4.3
Drive cage type B
The drive cage type B is located behind the front door.
In drive cage type B, drives are permanently installed inside and cannot be accessed
externally.
The drives are very well protected against vibration and oscillation ("vibration-damped drive
cage") in this drive cage.

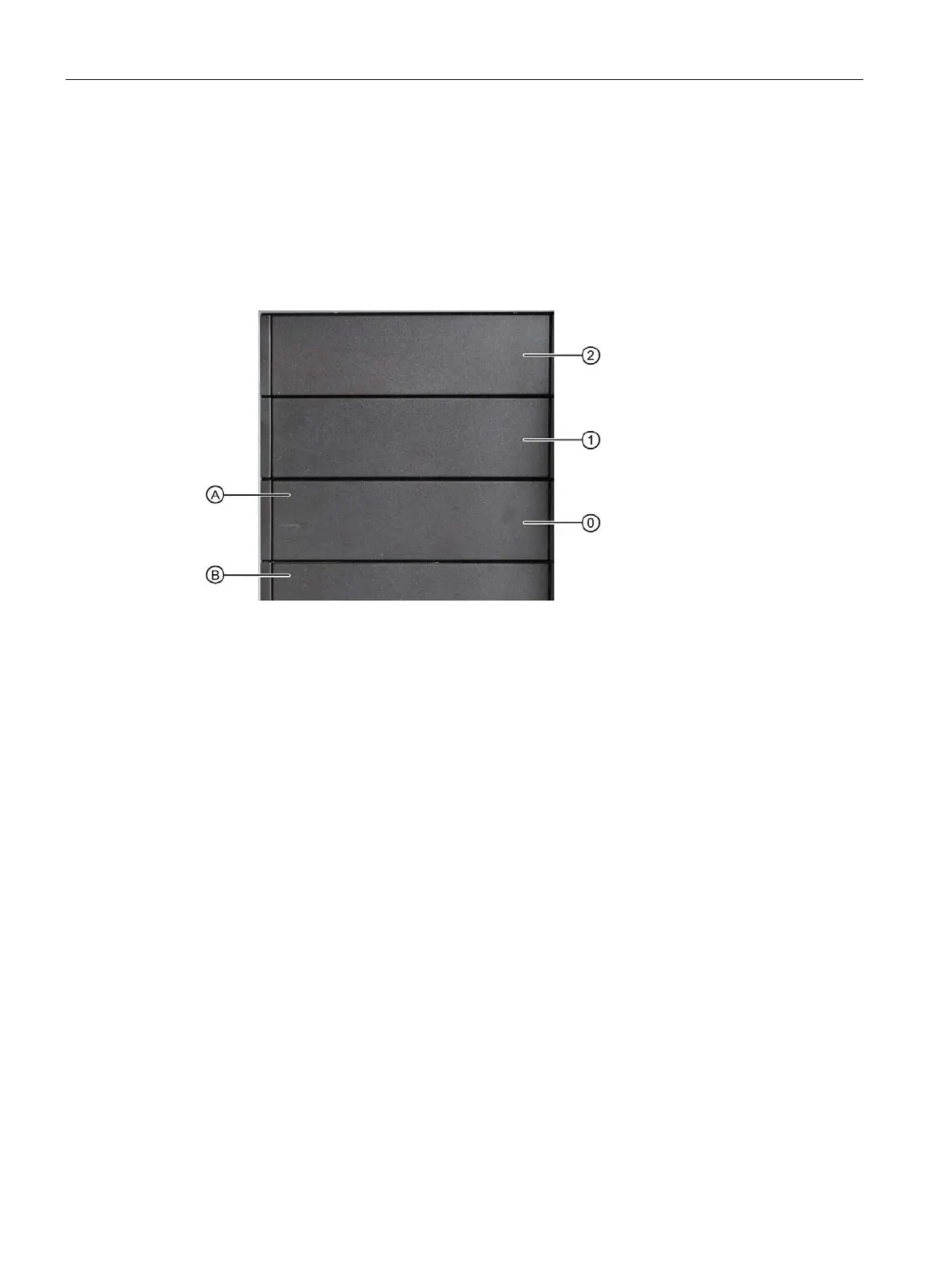

Drive bays
(0)
Mounting location 0
Mounting location for 3.5" or 2.5" drive in a s
hock-proof/vibration-
proof fixture or for 5.25" drive or components
(1)
Mounting location 1
Mounting location for 3.5" or 2.5" drive in a shock
-proof/vibration-
proof fixture or for 5.25" drive or components
(2)
Mounting location 2
Mounting location for
3.5" or 2.5" drive in a shock-proof/vibration-
proof fixture or for 5.25" drive or components
Components
(A)
Cover or drive cover
(B)
Cover
Additional information
Technical notes and information on the rated conditions are available in the section Drives in
drive cage type B / side panel (Page 114).
