Siemens Simatic S7-400 User Manual

PROFINET
6.2 PROFINET IO and PROFINET CBA
S7-400 Automation System, CPU Specifications
6-2 Manual, 10/2006, 6ES7498-8AA04-8BA0
6.2 PROFINET IO and PROFINET CBA
PROFINET variations
There are two varieties of PROFINET
● PROFINET IO: IO devices are connected to an S7-400 CPU (IO controller) via Ethernet.
● PROFINET CBA: A component-based automation solution in which full technological
modules are used as standardized components into large plants. You create the CBA
components in SIMATIC with STEP 7 and the SIMATIC iMap add-on package. You
connect the individual components with SIMATIC iMap.
When you download CBA interconnections to an S7-400 CPU, they are stored in the
working memory. The interconnections are lost if there is a defective hardware, a memory
reset or firmware update.
If you use Profinet CBA, you cannot use isochronous mode or perform configuration
changes in runtime (CiR).
PROFINET IO and PROFINET CBA
PROFINET IO and PROFINET CBA are two different views of automation devices on
Industrial Ethernet.
,2GDWDYLHZ
&RPSRQHQWYLHZ
2QHFDEOH,7VWDQGDUGVVWDQGDUGDSSOLFDWLRQV
3URWRFROVFRQWUROOHUVಹ
'LVWULEXWHG,2
8VXDO,2YLHZLQ67(3
352),1(7&RPSRQHQW'HVFULSWLRQ *HQHULF6WDWLRQ'HVFULSWLRQ
'LVWULEXWHGLQWHOOLJHQFH
6\VWHPZLGHHQJLQHHULQJ
*6'3&'
352),1(7
352),1(7&%$
352),1(7b,2

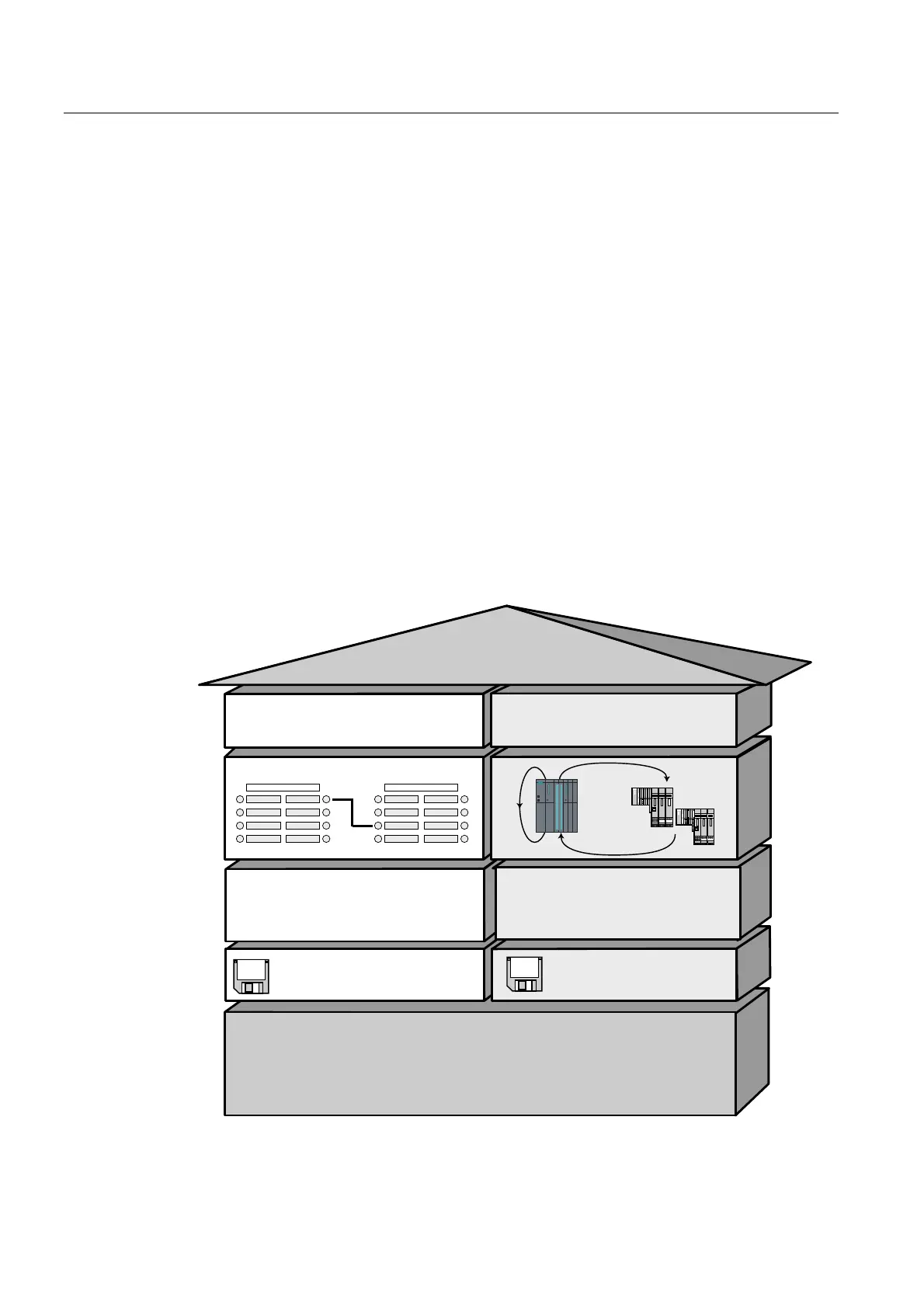

Figure 6-1 PROFINET IO and PROFINET CBA

Siemens Simatic S7-400 Specifications

General

Programming Language	STEP 7 (LAD, FBD, STL, SCL, GRAPH)
Communication Interfaces	MPI, PROFIBUS
Power Supply	24 V DC, 120/230 V AC (Power supply modules are separate and chosen based on system requirements)
Operating Temperature	0°C to 60°C
Mounting	Rack mounting
Processor	CPU 412-1, CPU 414-2, CPU 416-2, CPU 417-4 (Different CPUs offer varying performance and features)
Relative Humidity	5 to 95% (non-condensing)
