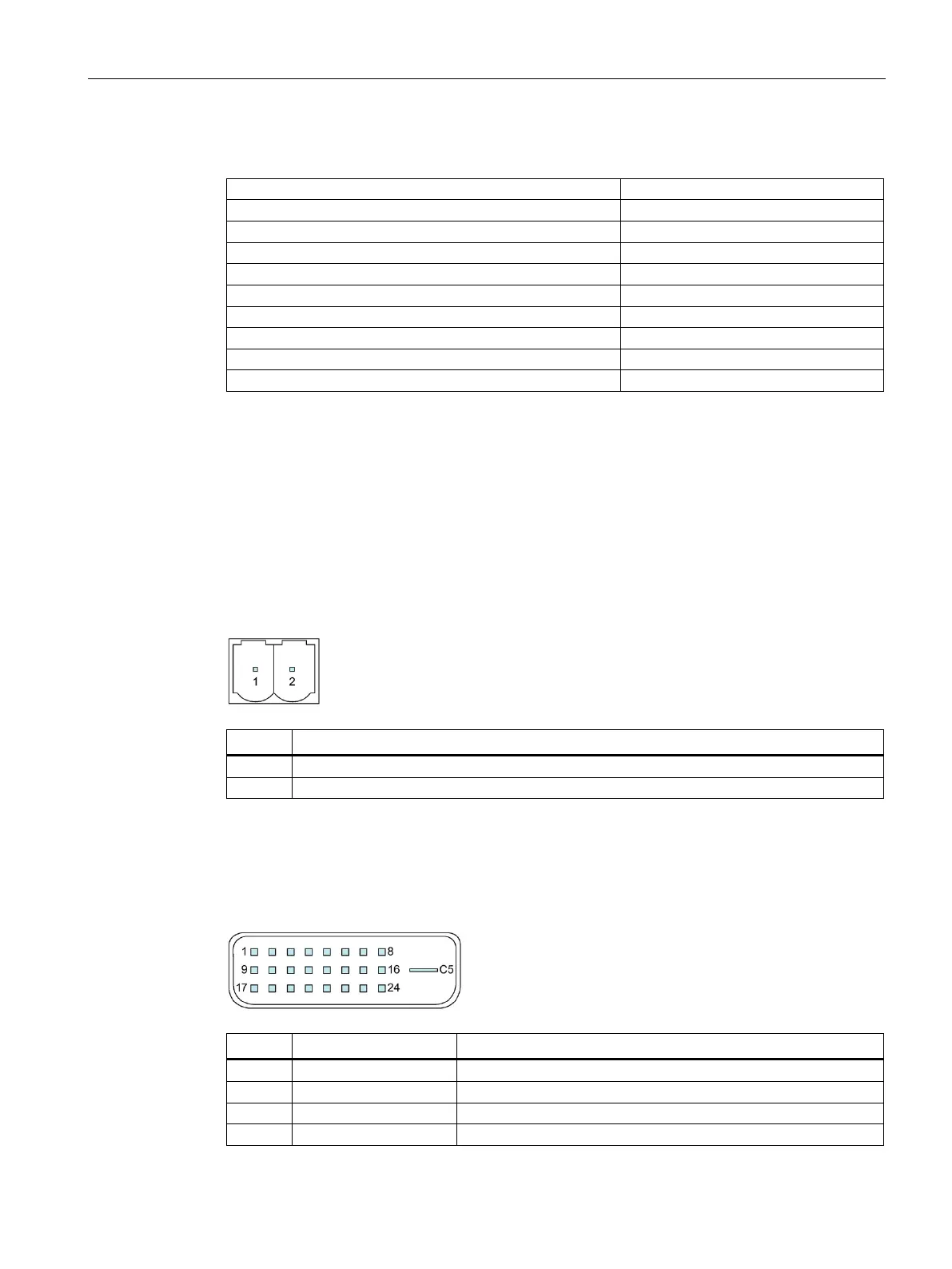

7.10 Interface description
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
127
DC power supply
Rated voltage
24 V DC
Permitted voltage range
+19.2 V ... +28.8 V
Mains and voltage buffering time
20 ms
Rated current
0.2 A
Rated current, load-dependent
0.17 ... 0.25 A
Power consumption
1
4.8 W
Inrush current I
2
t
0.5 A
2
s
Maximum permitted transients
35 V (500 ms)
Minimum time between two transients
50 s
Internal protection
Electronic
1
The power loss generally corresponds to the specified value for power consumption.
7.10 Interface description
7.10.1 24 V DC
Power supply 24 V DC 2-pin
Pin
Meaning
1
+24 V DC
2
Ground
7.10.2 DVI-D
DVI-D, 25-pin socket
Pin
Name
Meaning
1
TMDS data2-
DVI data output 2-
2
TMDS data2+
DVI data output 2+
3
TMDS Data2 shield
Cable shield DVI data output 2
4
NC
Not assigned
