7.10 Interface description
IFP V2, IFP V2 PRO, IFP V2 ETH
128 Operating Instructions, 03/2023, A5E46641410-AE
Pin
Name
Meaning
5
NC
Not assigned
6
DDC clock (SCL)
Display Data Channel clock, bidirectional
7
DDC data (SDA)
Display Data Channel data, bidirectional
8
NC
Not assigned
9
TMDS data1-
DVI data output 1-
10
TMDS data1+
DVI data output 1+
11
TMDS Data1 shield
Cable shield DVI data output 1
12
NC
Not assigned
13
NC
Not assigned
14
+5 V VCC
+5 V output for DDC
15
GND
Ground for +5 V
16
HPD
Hot Plug Detect input
17
TMDS data 0-
DVI data output 0-
18
TMDS data 0+
DVI data output 0+
19
TMDS Data0 shield
Cable shield DVI data output 0
20
NC
Not assigned
21
NC
Not assigned
22
TMDS clock shield
Cable shield DVI clock output
23
TMDS clock+
DVI clock output
24
TMDS clock-
DVI clock output
C5
NC
Not assigned

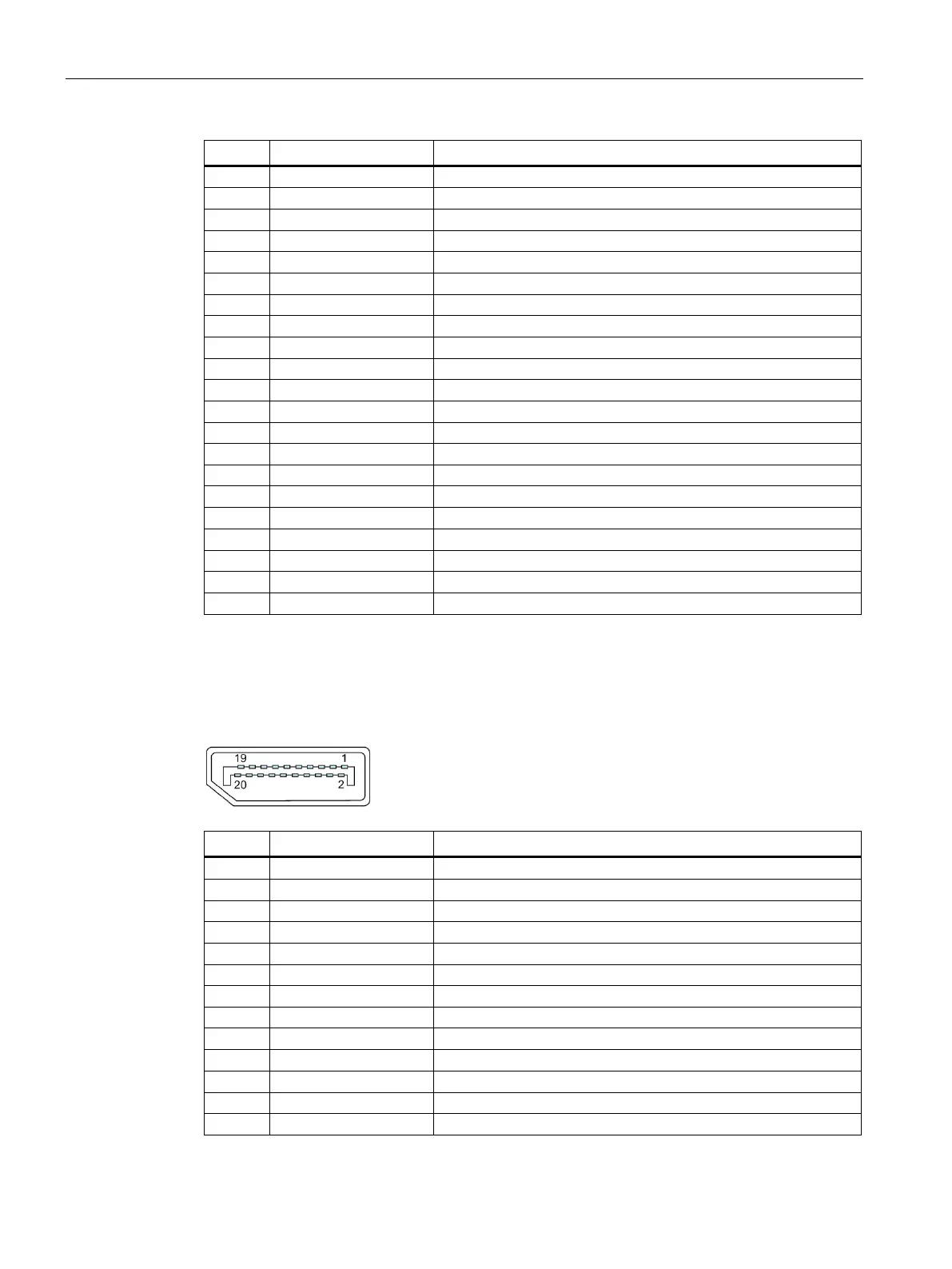

7.10.3 DisplayPort
DisplayPort, 20-pin socket
Pin
Name
Meaning
1
ML_Lane0+
DP data output 0+
2
GND
Ground
3
ML_Lane0-
DP data output 0-
4
ML_Lane1+
DP data output 1+
5
GND
Ground
6
ML_Lane1-
DP data output 1-
7
ML_Lane2+
DP data output 2+
8
GND
Ground
9
ML_Lane2-
DP data output 2-
10
ML_Lane3+
DP data output 3+
11
GND
Ground
12
ML_Lane3-
DP data output 3-
13
CONFIG1 CAD
Cable Adapter Detect input
