7.10 Interface description
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
129
Pin
Name
Meaning
14
CONFIG2
Ground (PullDown)
15
AUX_CH+
Additional channel, bidirectional
16
GND
Ground
17
AUX_CH-
Additional channel, bidirectional
18
HPD
Hot Plug Detect input
19
GND
Ground
20
DP_PWR
+3.3 V output, fused

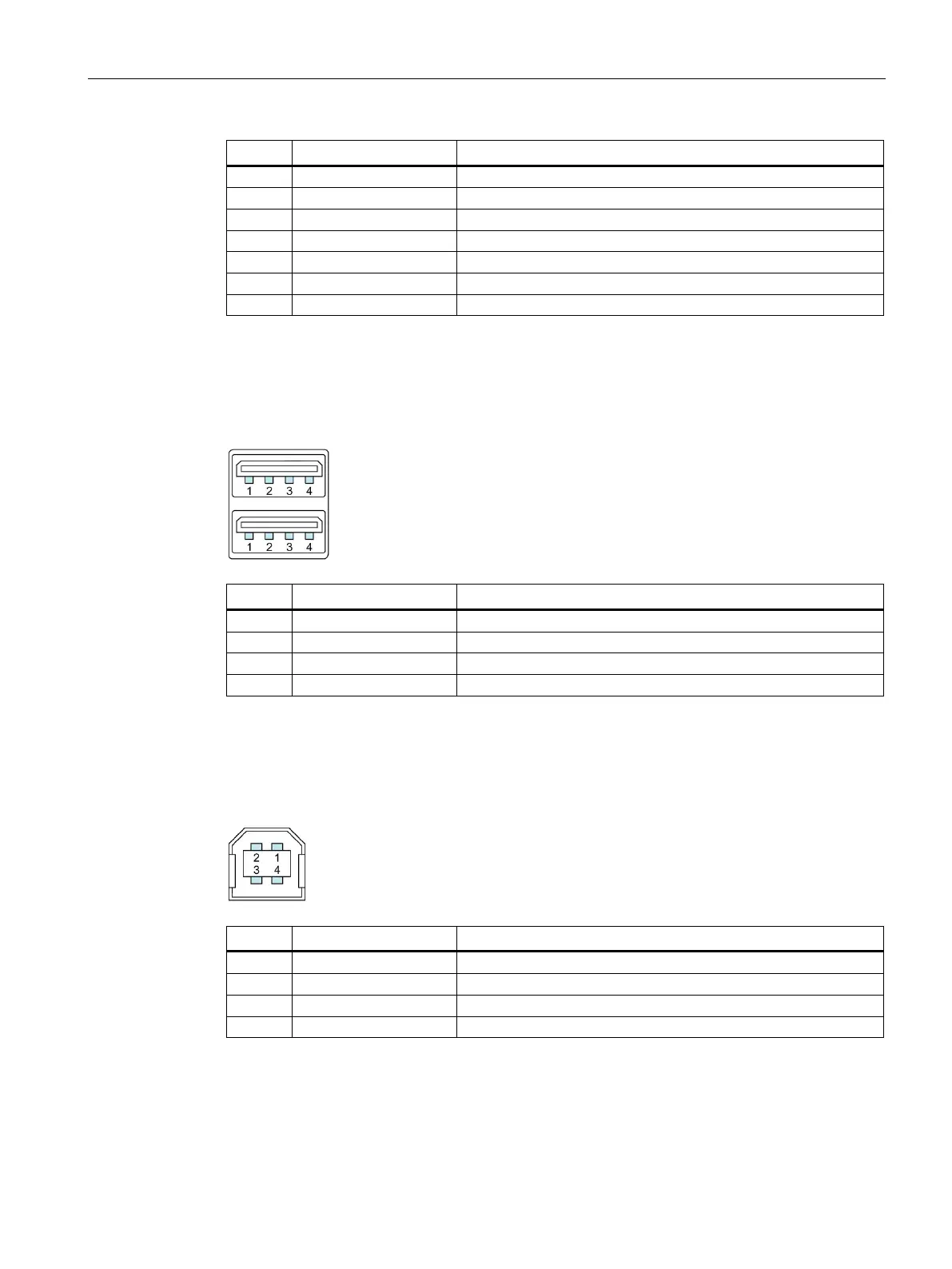

7.10.4 USB hub Type A
USB hub type A, 2 × 4-oin socket
Pin
Name
Meaning
1
VBUS
+5 V, fused
2
D-
Data channel, bidirectional
3
D+
Data channel, bidirectional
4
GND
Ground
7.10.5 USB Type B
USB hub type B, 4-pin socket
Pin
Name
Meaning
1
VBUS
+5 V, fused
2
D-
Data channel, bidirectional
3
D+
Data channel, bidirectional
4
GND
Ground
