Installing and connecting the device
3.2 Installing the built-in device
IFP V2, IFP V2 PRO, IFP V2 ETH
46 Operating Instructions, 03/2023, A5E46641410-AE
Procedure
If the mounting seal is damaged, the degree of protection is not guaranteed.

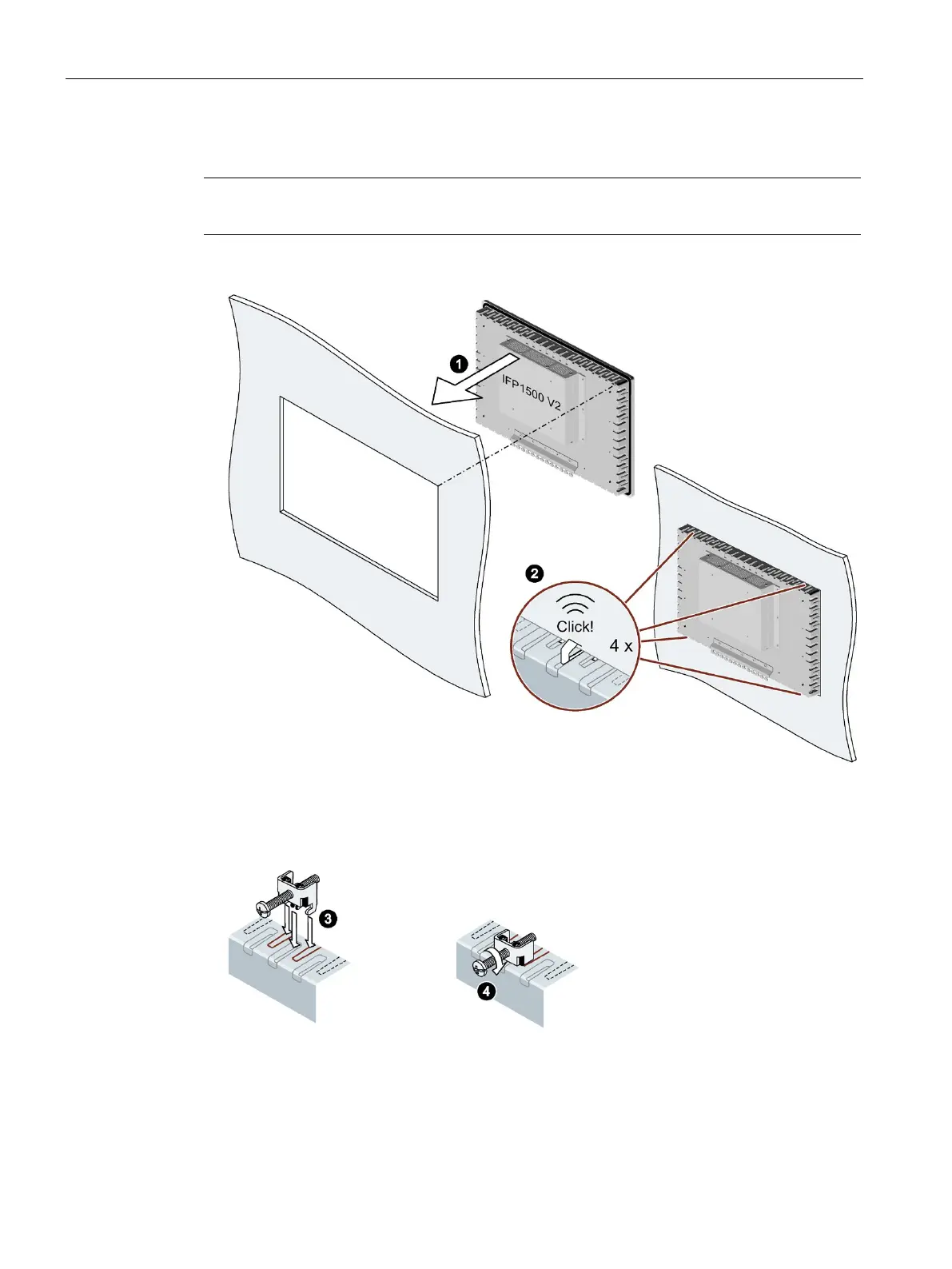

1. Insert the device into the mounting cutout from the front.
2. Make sure that all four spring locks on the top and bottom of the device fully engage. If
necessary, gently press the device into the recess if it is not fully engaged.
3. Insert a mounting clip into the cutout provided on the device. Ensure it is in the correct
position; see the section "Positions of the mounting clips (Page 43)".
4. To secure the mounting clip, tighten the grub screw with the screwdriver, torque 0.5 Nm.
5. Repeat steps 3 and 4 until all mounting clips are fastened.
6. Check the fit of the mounting seal.
