Siemens SIMOTICS S-1FT2 User Manual

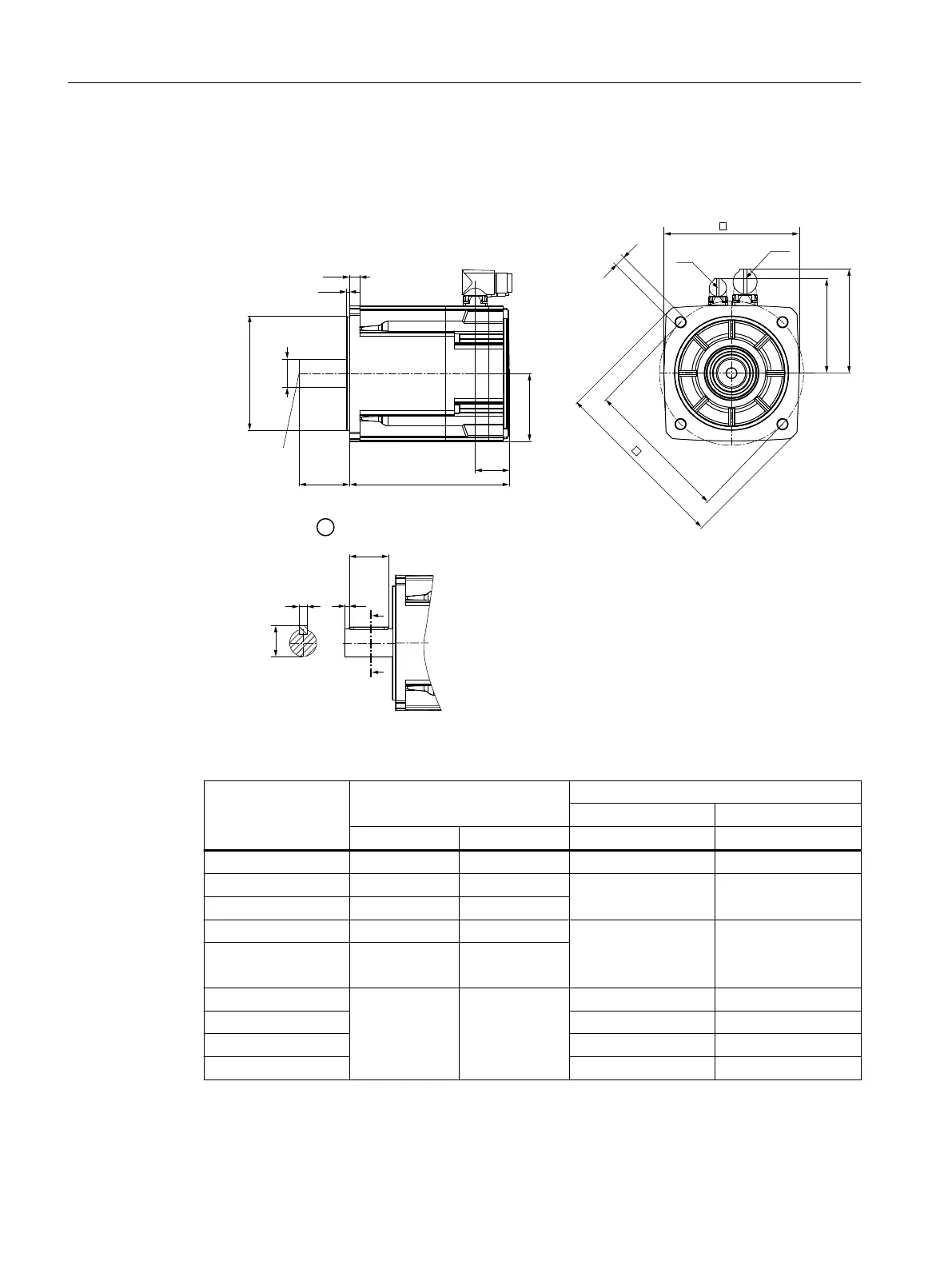

14.6 Dimension drawing 1F☐2☐08
The motor has the following dimensions in the following frame sizes:




%*/%3.

LL



L

K





""
"
"




'௑௑
..
.


* Dimension for M23 connector/dimension for M40 connector
① Option with feather key
Motor frame size Connectors Overall length of the motor
without brake with brake
g1 h1 k / mm k1 / mm
1FT2108-4A☐ M23 119 227 280
1FT2108-5AB M23 119 247 300
1FT2108-5AC M40 139
1FT2108-7AB M23 119 287 340
1FT2108-7AC
1FT2108-7AE
M40 139
1F☐2208-2A☐ M23 119 168 221
1F☐2208-3A☐ 183 236
1F☐2208-4A☐ 203 256
1F☐2208-5A☐ 223 276
Dimension drawings
14.6Dimension drawing 1F☐2☐08
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
124 Operating Instructions, 12/2023, A5E50610821B AF
