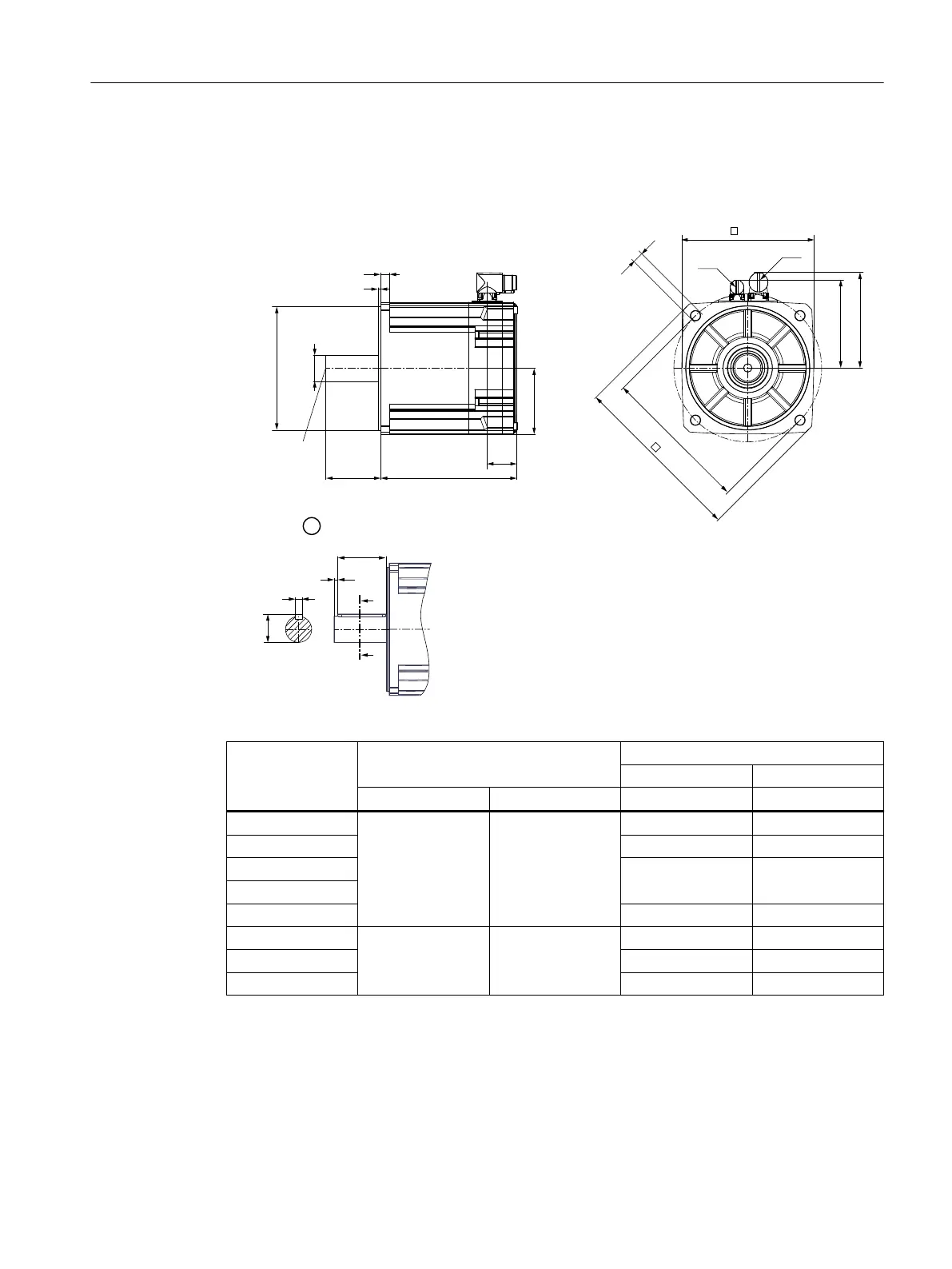

14.7 Dimension drawing 1F☐2210
The motor has the following dimensions in the following frame sizes:





""
"
"
%*/%3.

L

K


LL



'௑
H
.

I




① Option with feather key
Motor frame size Connectors Overall length of the motor
without brake with brake
g1 h1 k / mm k1 / mm
1F☐2210-2A☐ M23 139 174 233
1F☐2210-3A☐ 198 257
1F☐2210-4AB 223 282
1F☐2210-4AC
1F☐2210-5AB 248 307
1F☐2210-3AF M40 159 198 257
1F☐2210-4AF 223 282
1F☐2210-5AC 248 307
Dimension drawings
14.7Dimension drawing 1F☐2210
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
Operating Instructions, 12/2023, A5E50610821B AF 125
