Siemens SIMOTICS S-1FT2 User Manual

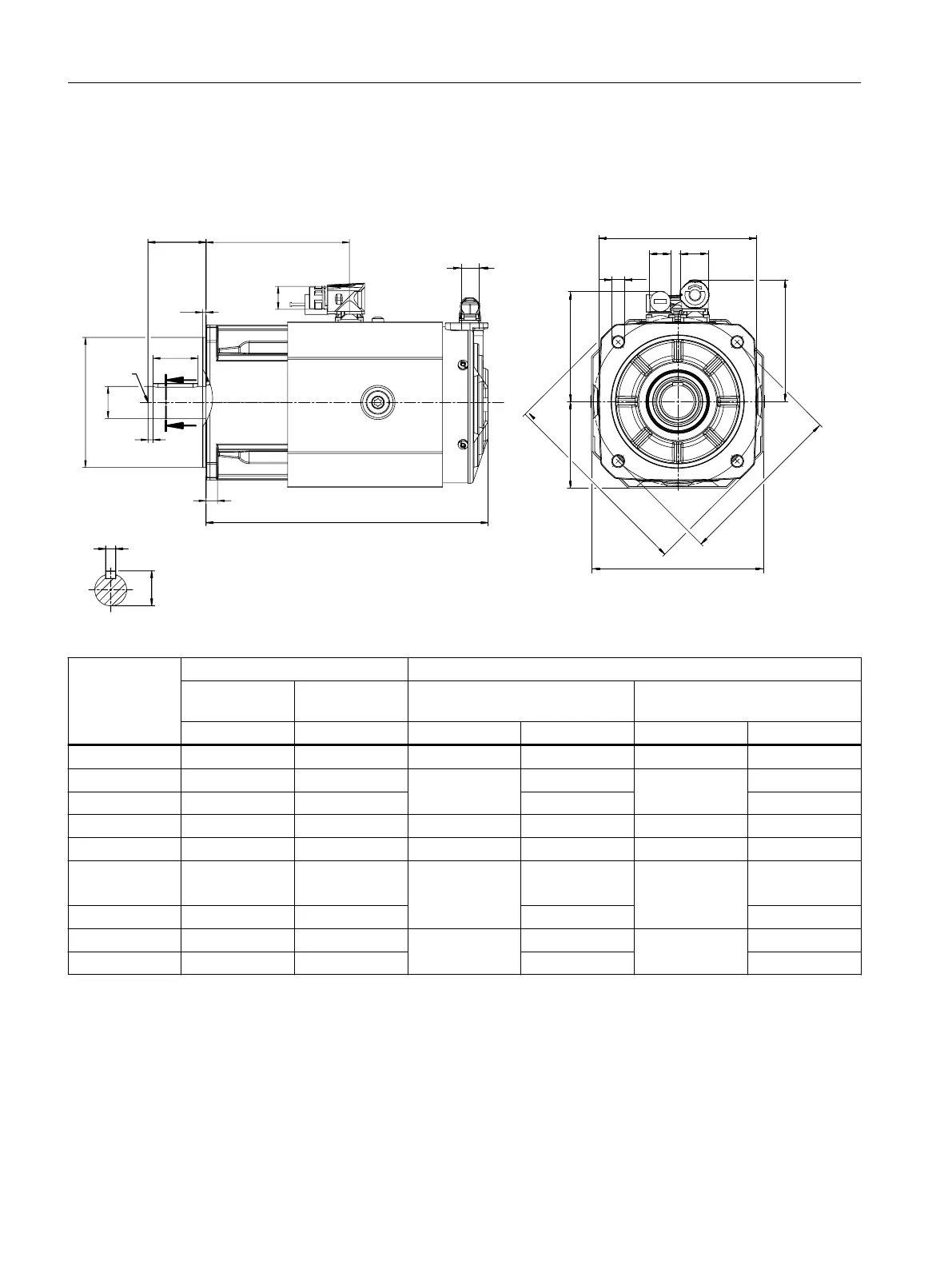

14.8 Dimension drawing 1F☐2☐08_force ventilated
The motor has the following dimensions:
'௑௑GPSDFWFOUJMBUFE
.H
LL
PP


H

࢈L
࢈K
࢈

࢈
.


##


.

ୢ
ୢ

I

#
#
'௑
B-B Option with feather key
Motor frame
size
Power connector Overall length of the motor
Connector size Connector
height
without brake with brake
g1 / mm h1 / mm k / mm o / mm k1 / mm o1 / mm
1FT2108-4S☐ M40 139 327 182 380 235
1FT2108-5SB M23 119 347 208 400 261
1FT2108-5SC M40 139 202 255
1FT2108-7S M40 139 387 242 440 295
1FT2208-3S M23 119 283 144 336 197
1FT2208-4SB
1FT2208-4SC
M23 119 303 164 356 217
1FT2208-4SF M40 139 158 211
1FT2208-5SB M23 119 323 184 376 237
1FT2208-5SC M40 139 178 231
Dimension drawings
14.8Dimension drawing 1F☐2☐08_force ventilated
SIMOTICS S-1FT2 synchronous motors for SINAMICS S120
126 Operating Instructions, 12/2023, A5E50610821B AF
