3.3.4 Configuring Mode CLPA (Clock Parameters)
All clock parameters are arranged in the structuring mode CLPA. It is only accessible when the
complex function CLoc (arithmetic block d0*.F) has been defined in FdEF.
The assignment of the number of intervals per program (parameter CLPr) prescribes the length
of the parameter list for the parameters CLti (duration per interval in the respective program)
CLA 1/2 (amplitude of the analog outputs at the start/end interval) and CLb1 to 8 (status of the
digital outputs in the interval).
dd1
dd2
dA2/
L14
Parameter
value
dA1
High speed adjustment of parameter value
at SEt without function in roLL
Parameter name
Interval number
flashing
tA1
tA2
tA3
tA4
tA5
tA6
tA7
dd3 L12
L13
L1
L2
L4
L3
L5
L6
L7
L9
L8
L10
L11
Exit LED: flashes
Exit key↗: return to structuring
preselection level after CLPA
Enter LED: off
Enter key: no function
Adjustment parameter name and
function name
Striped pattern
ID offline
All unnamed keys have no function, all unnamed
LEDs and displays are dark

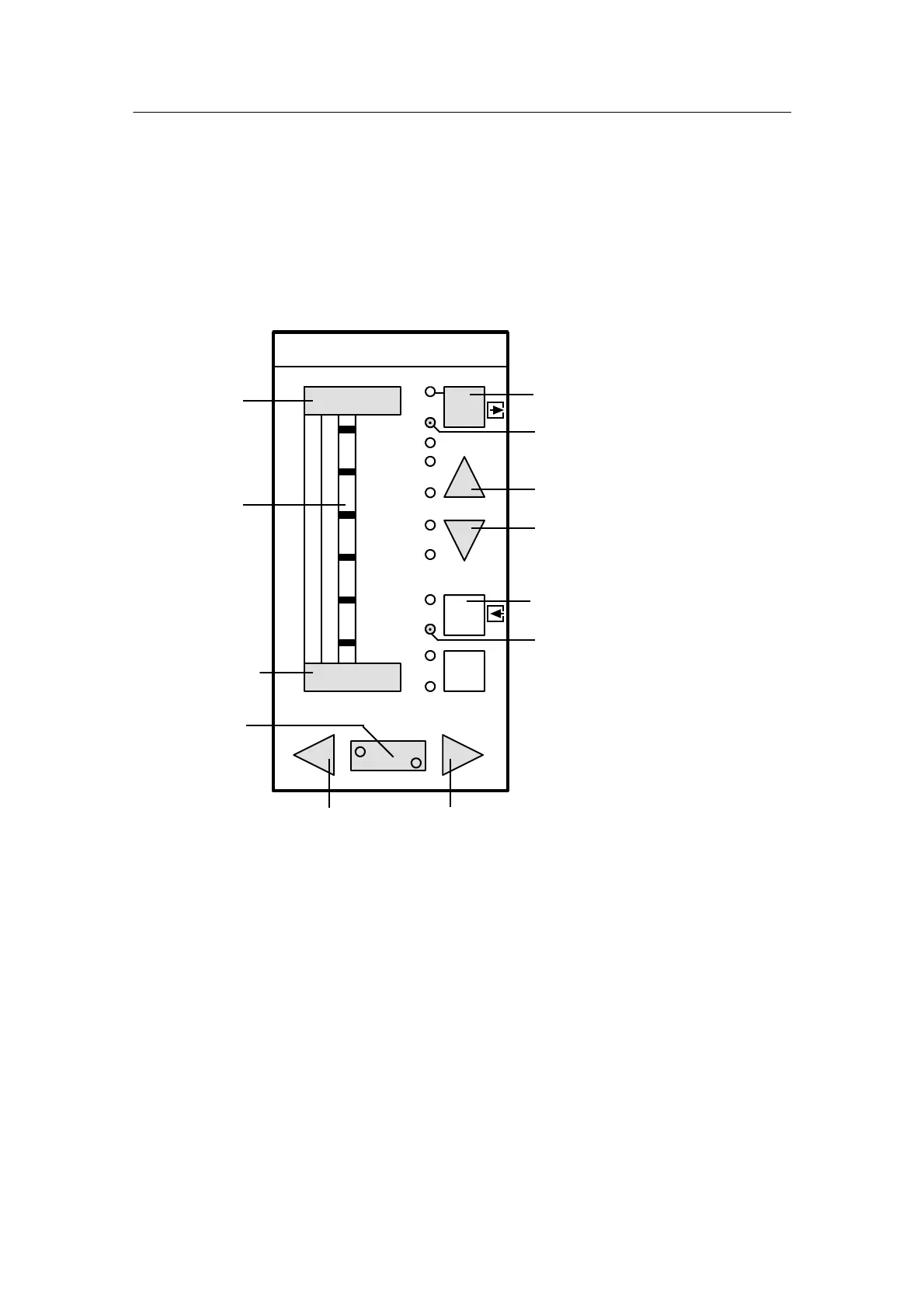

Figure 3-9 Control and display elements in the configuring mode CLPA
