Siemens SIPART DR24 User Manual

3 Operation
3.3 Configuring Mode (Parameterization and Configuring Mode)
3.3.5 Configuring Mode hdEF (Define Hardware)
Manual
150
SIP ART DR24 6DR2410
C79000-G7476-C153-03
3.3.5 Configuring Mode hdEF (Define Hardware)
All hardware properties and input and output function properties are combined in a question and
answer cycle in the configuring mode hdEF. It is set by setting hardware function (question) in
dd2 and hardware selection (answer) in dd1 in pairs. The answers for the properties of the input
and output functions specify the length of the lists in the configuring modes oFPA and FCon like
FdEF.
The setting becomes valid when switching to the next question or returning to the configuring
preselection level after hdEF.
High speed adjustment of hardware function
Hardware selection
(Answer)
Striped pattern
ID offline
Hardware function
(Question)
PS (parameterization/
configuring)
dd1
dd2
dA2/
L14
dA1
tA1
tA2
tA3
tA4
tA5
tA6
tA7
L13
L1
L2
L4
L3
L5
L6
L7
L9
L8
L10
L11
dd3 L12
High speed adjustment of parameter value at
SEt without function in roLL
Exit LED: flashes
Exit key↗: return to configuring
preselection level after CLPA
Enter LED: off
Enter key: no function
All unnamed keys have no function,
all unnamed LEDs and displays are dark

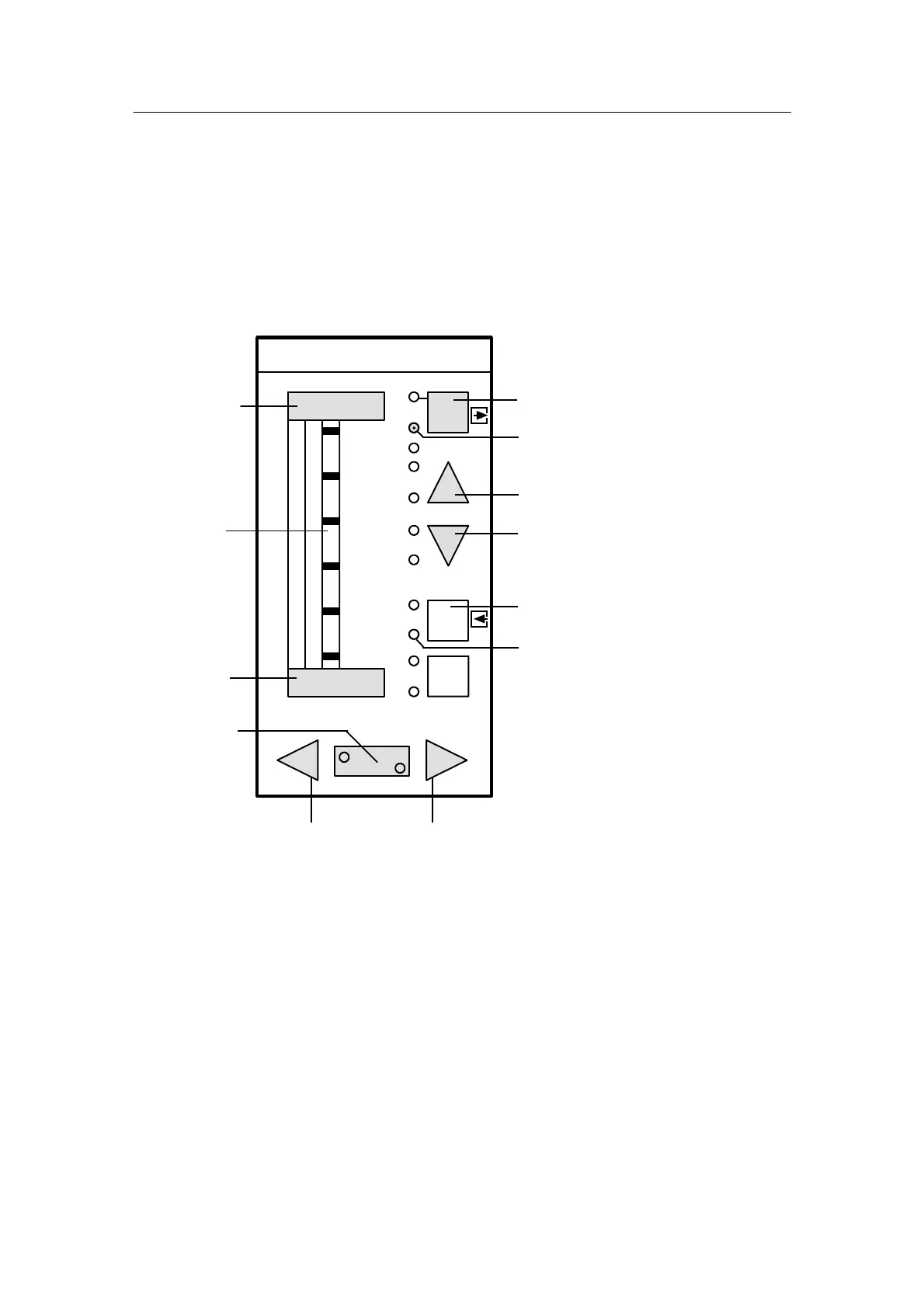

Figure 3-10 Control and display elements in the configuring mode hdEF
