Siemens sitrans PROBE LU User Manual

7ML19985JB02 SITRANS Probe LU (PROFIBUS PA) – INSTRUCTION MANUAL Page 111
mmmmm
J: Hazardous installation

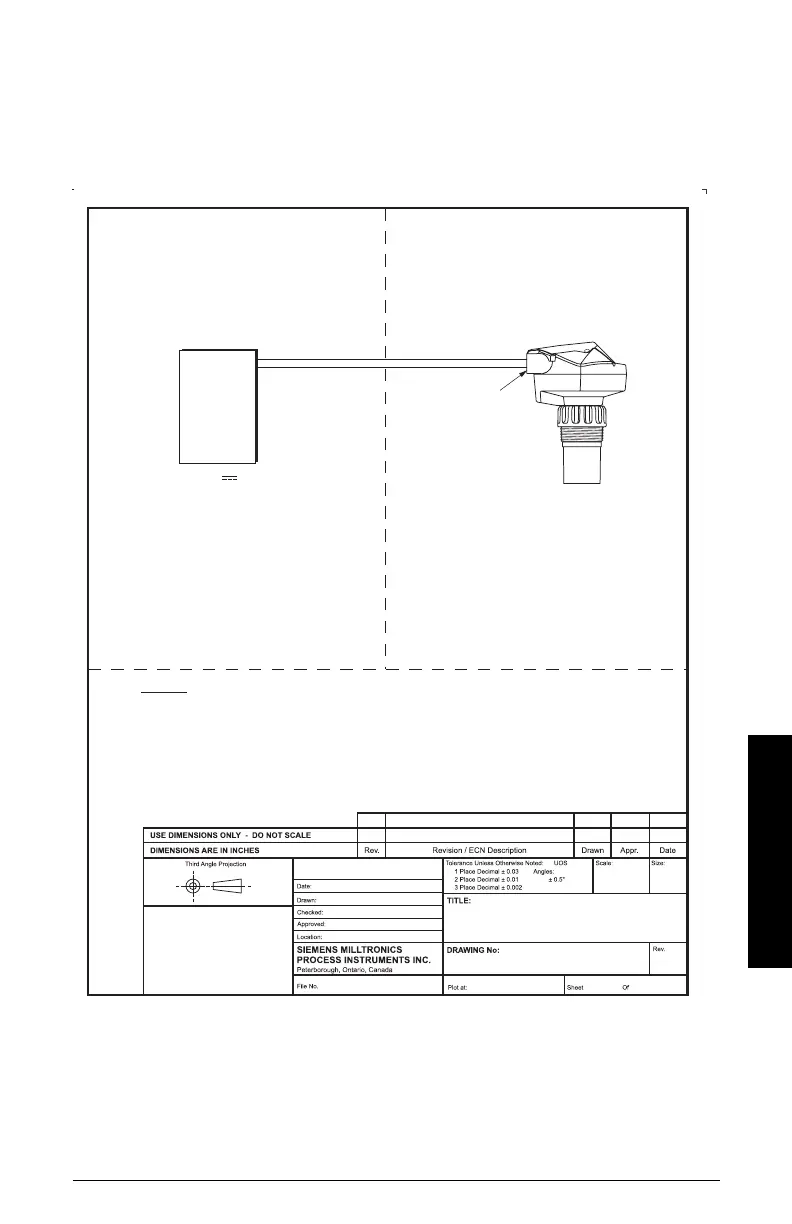

Non-incendive (FM Class I, Div. 2) wiring drawing
Product Group
FOR INTERNAL
USE ONLY
2365058300
S. NGUYEN
PETERBOROUGH
29 / SEPT / 2004
ULTRASONICS
FOR CONSTRUCTION
0
1
S. MILLIGAN
R. CLYSDALE
1:1
1
1
NTS
A
SITRANS Probe LU
CLASS I, Div. 2
CONNECTION DRAWING
23650583
0
RPC
SN
SEPT
29/2004
NON-HAZARDOUS LOCATION
(SAFE)
HAZARDOUS LOCATION
CLASS I, DIV.2, GROUPS A, B, C, D
24 V
POWER
SUPPLY
SITRANS Probe LU
1/2 “ NPT
NOTES:
1) INSTALLATION SHALL BE DONE IN ACCORDANCE WITH THE
NATIONAL ELECTRICAL CODE.
2) USE APPROVED WATER TIGHT CONDUIT FITTINGS FOR OUTDOOR APPLICATIONS.
3) FOR FURTHER INFORMATION REFER TO THE
SITRANS Probe LU INSTRUCTION MANUAL
METAL CONDUIT

Siemens sitrans PROBE LU Specifications

General

Measuring Principle	Ultrasonic
Communication	HART
Output	4 to 20 mA
Power Supply	12 to 30 V DC
Process Temperature	-40 to 80 °C
Enclosure Rating	IP68
Material	PVDF
Ambient Temperature	-40 to 70 °C
Measurement Range	0.25 to 12 m (0.8 to 39 ft)
