Installation

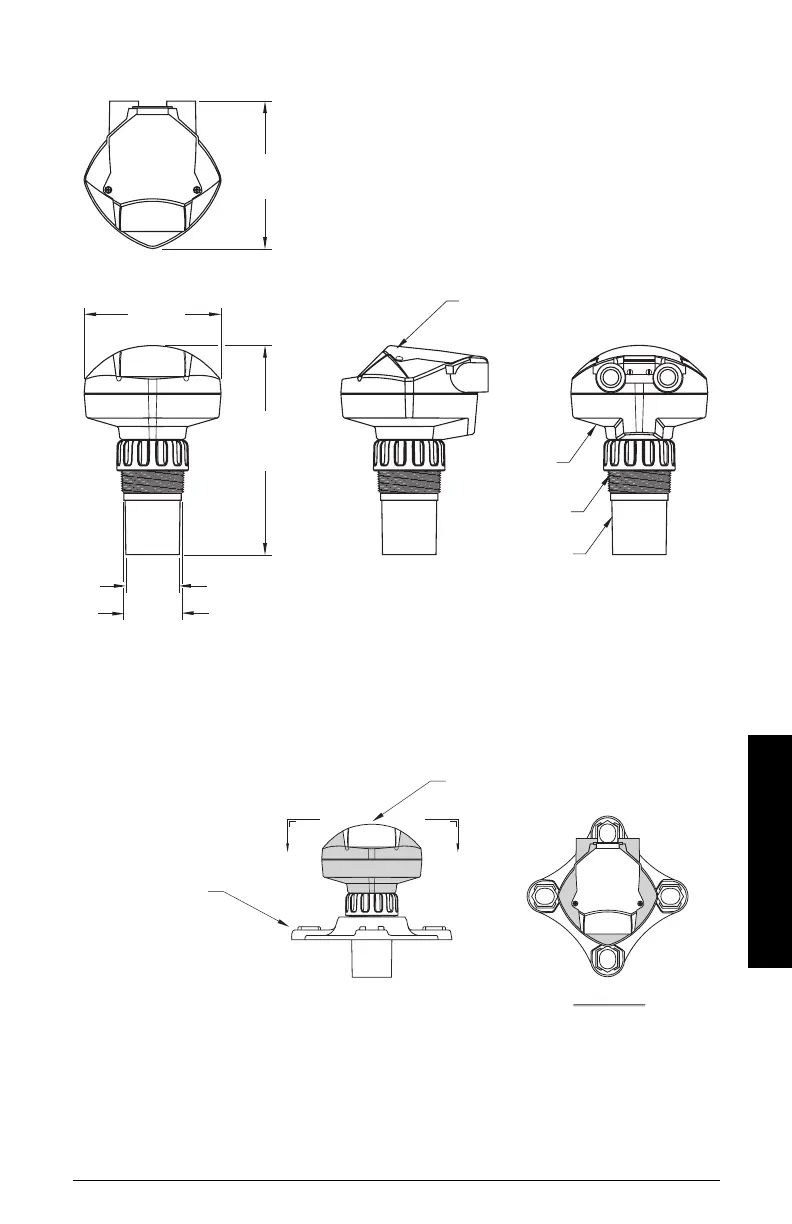

SITRANS Probe LU Dimensions
.
Flange Adaptor (optional)
SITRANS Probe LU can be fitted with the optional 3" (80 mm) flange adaptor for mating to
3" ANSI, DIN 65PN10, and JIS 10K3B flanges.
transducer
mounting
thread
electronics
hinged lid
198.9 mm
(7.83")
139.7 mm
(5.50")
51.1 mm (2.01")
130.1 mm
(5.12")
54.0 mm (2.13")
optional flange
adaptor
"A" "A"
VIEW "A"-"A"
SITRANS Probe LU

Siemens sitrans PROBE LU Specifications

General

Measuring Principle	Ultrasonic
Communication	HART
Output	4 to 20 mA
Power Supply	12 to 30 V DC
Process Temperature	-40 to 80 °C
Enclosure Rating	IP68
Material	PVDF
Ambient Temperature	-40 to 70 °C
Measurement Range	0.25 to 12 m (0.8 to 39 ft)
