12 TYPICAL WIRING DIAGRAMS

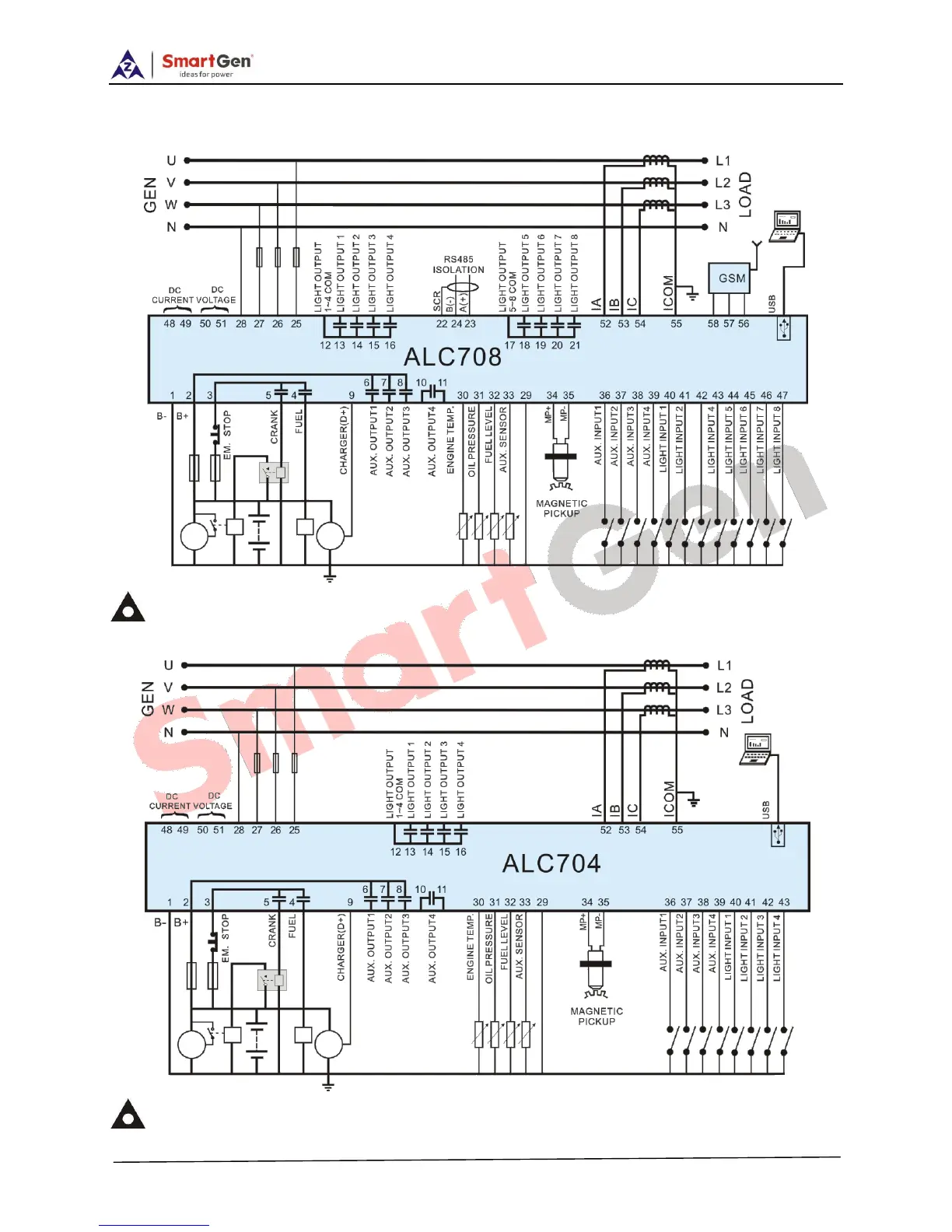

ALC708 Typical Wiring Diagram
Note: If 8 lights are all used, the maximum current of each light is 2A.
ALC704 Typical Wiring Diagram
Note: If 4 lights are all used, the maximum current of each light is 2A.
