(3) Step data settings

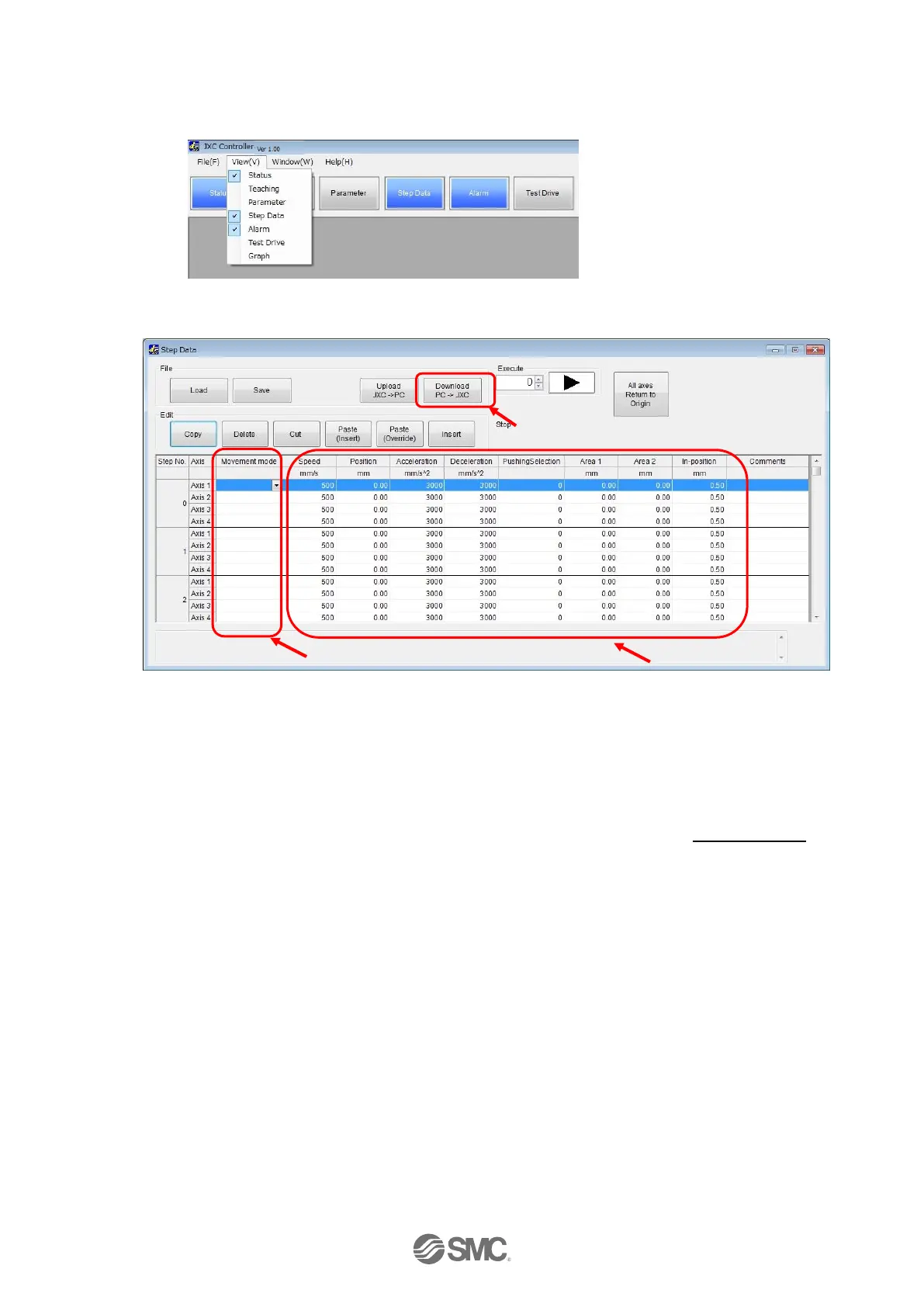

Select "View(V)" at the top of the main window, and select "Step Data".
The Step data window will be displayed.
Select the “▼” button for the movement mode for the axis of the step number to be set. Select the
movement mode shown in the list. Enter the necessary numerical data according to the selected
movement mode.
The setting is different depending on the movement mode. Refer to section
7.4 Step Data
for
details.
After setting the step data, select the "Download" button in the step data window. The step data will
be written to the controller. Writing is completed when the progress bar disappearsand then the
setting software is ready to operate.
Movement mode
Area to input numerical data.
Download
