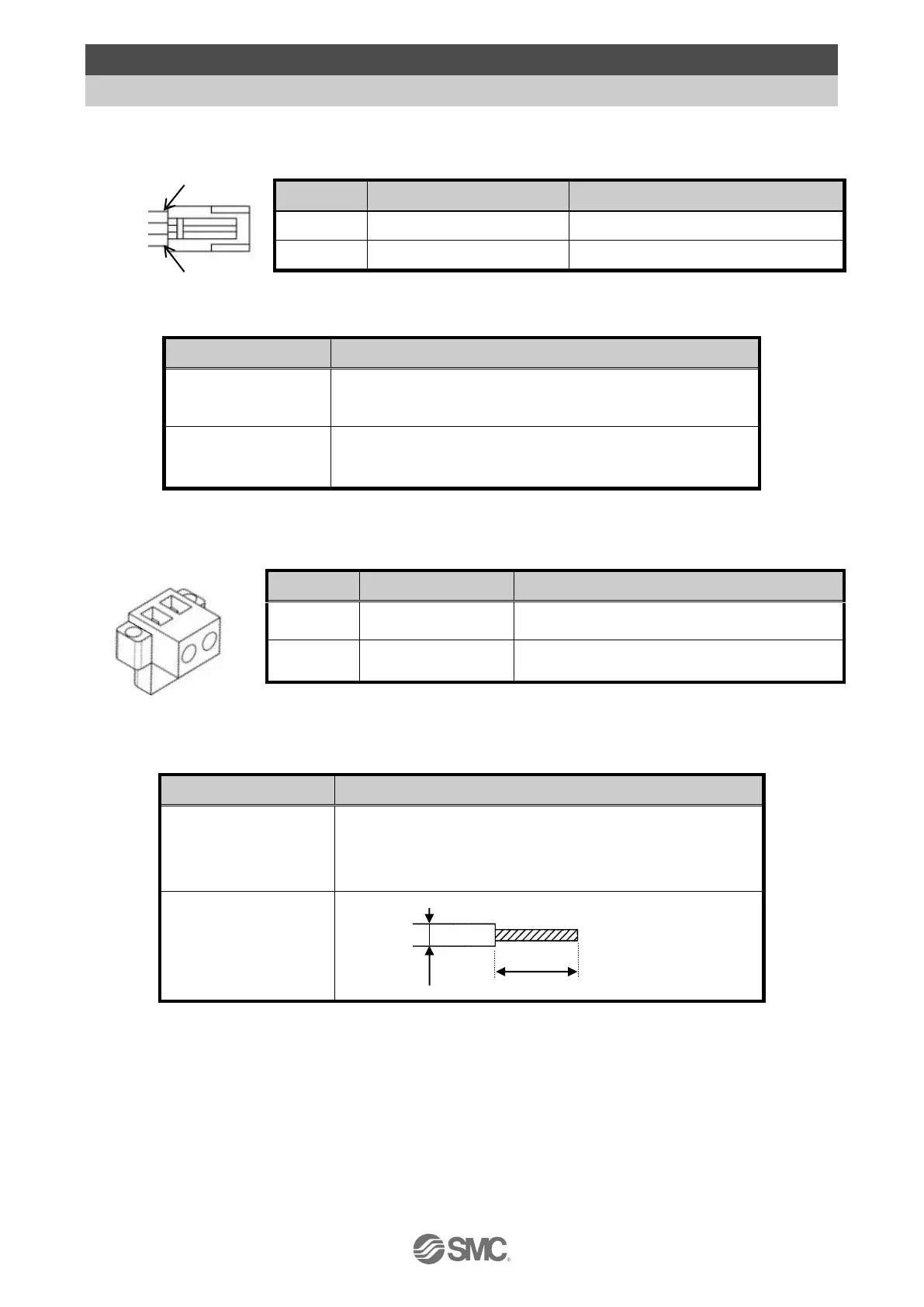

5. Power supply connector
5.1 Connector specifications
The power supply connector type included is shown below.
(1) Main control power supply connector: C PWR
Use the power cable for main control, JXC-C1.
Specifications of the cable are as follows.
Item
Specifications
Electric wire size
Stranded wire → AWG20 (0.5mm
2
)
O.D. of sheath →1.76
Wire sheath colour
+24V:Brown
24-0V: Blue
(2) Motor drive power connector: M PWR
Manufactured by Phoenix Contact (Part number MSTB2,5/2-STF-5,08)
Prepare the electrical wiring according to the following specifications (to be prepared by the user).
Item
Specifications
Applicable wire size
Single, Stranded wire → AWG16(1.25mm
2
)
The rated temperature of the insulation coating should be
60
o
C or more.
Stripped wire length
When the wire is inserted into the motir drive power connector, insert only the stripped part of the
wire.
Terminal
Function
Description
+24V
Main control power supply (+)
Power supply (+) for main control.
24-0V
Main control power supply (-)
Power supply (-) for main control.
Terminal
Function
Description
0V
Motor power (-)
Power supply (-) common for M24V terminal, C24V
terminal, EMG terminal and LKRLS terminal
M24V
Motor power (+)
Motor drive power supply (+) for Axis 1 and 2 or
Axix 3 and 4.
+24V
24-0V
0V
M24V
Brown
Blue
7mm
3.4 or less
