Electrical Connections
Electrical Connections

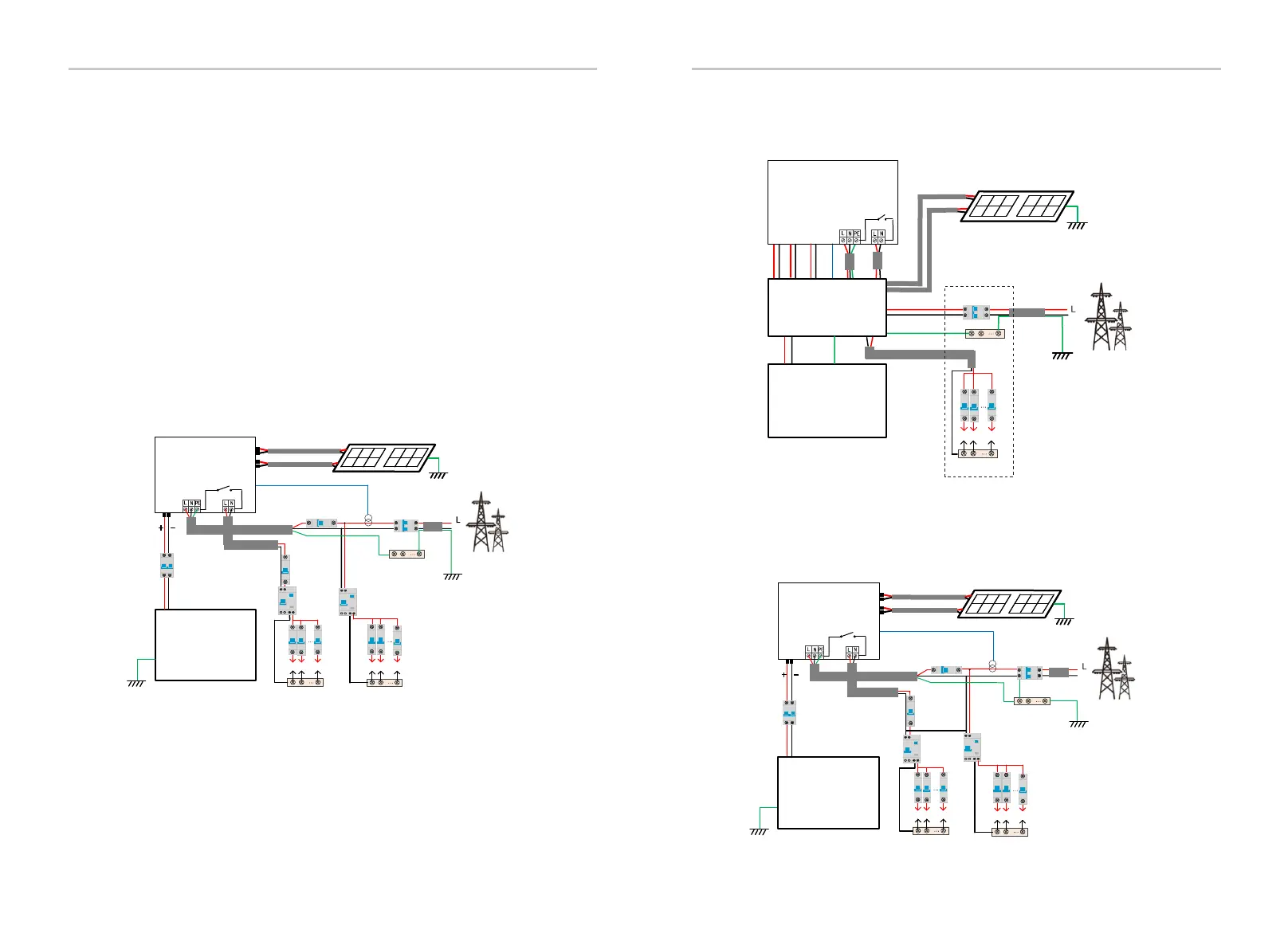

Ø EPS(Off-grid) wiring diagram
6.3 EPS(Off-grid) Block Diagram
40
41
X1-Matebox
CT
Distribution Box
Battery
Grid
PV 1PV 2
E-BAR
Grid
Breaker
Loads
N-BAR for loads
N
Main Breaker
BAT
Inverter
PE
EPS
(Off-grid)
The series inverter has an EPS(Off-grid) function. When the grid is connected, the
inverter outputs go through the Grid port, and when the grid is disconnected,
the inverter outputs go through the EPS(Off-grid) port.
The EPS(Off-grid) function can be connected to part of the load, and it can also
be used to connect to all loads. Please refer to the following diagram for the
wiring .
To be compatible with all loads, you will need an addition a accessory. If you
need a solution, please contact our sales.
For to different local wiring rules, please refer to the diagram below
Please select the appropriate wiring method according to local wiring rules.
Diagram A: Neutral line and PE line are separated from each other, and the
common load is connected to the EPS(Off-grid) port; (For most countries)
Diagram B: Neutral line and PE line are separated from each other,
all loads connect to the EPS(Off-grid) port; (For most countries)
Diagram C: Neutral line and PE line are combined together, and the
common load is connected to the EPS(Off-grid) port; (Apply to
Australia)
N-BAR for loads
Grid
N
BAT
Battery
EPS(Off-grid) loads
Loads
Inverter
PV 1
PV 2
E-BAR
RCD
Breaker
Breaker
Grid
EPS(Off-grid)
Main Breaker
Breaker
Breaker
CT
CT
Breaker
PE
RCD
N-BAR for EPS(Off-grid) loads
N
BAT
Battery
N-BAR for loads
N-BAR for EPS(Off-grid) loads
EPS(Off-grid) loads
Loads
Inverter
PV 1
PV 2
E-BAR
RCD
Breaker
Grid
Breaker
Grid
EPS(Off-grid)
Main Breaker/RCD
Breaker
Breaker
CT
CT
Breaker
RCD
To Next Page
