Location and Functions of Parts and Controls
Overview

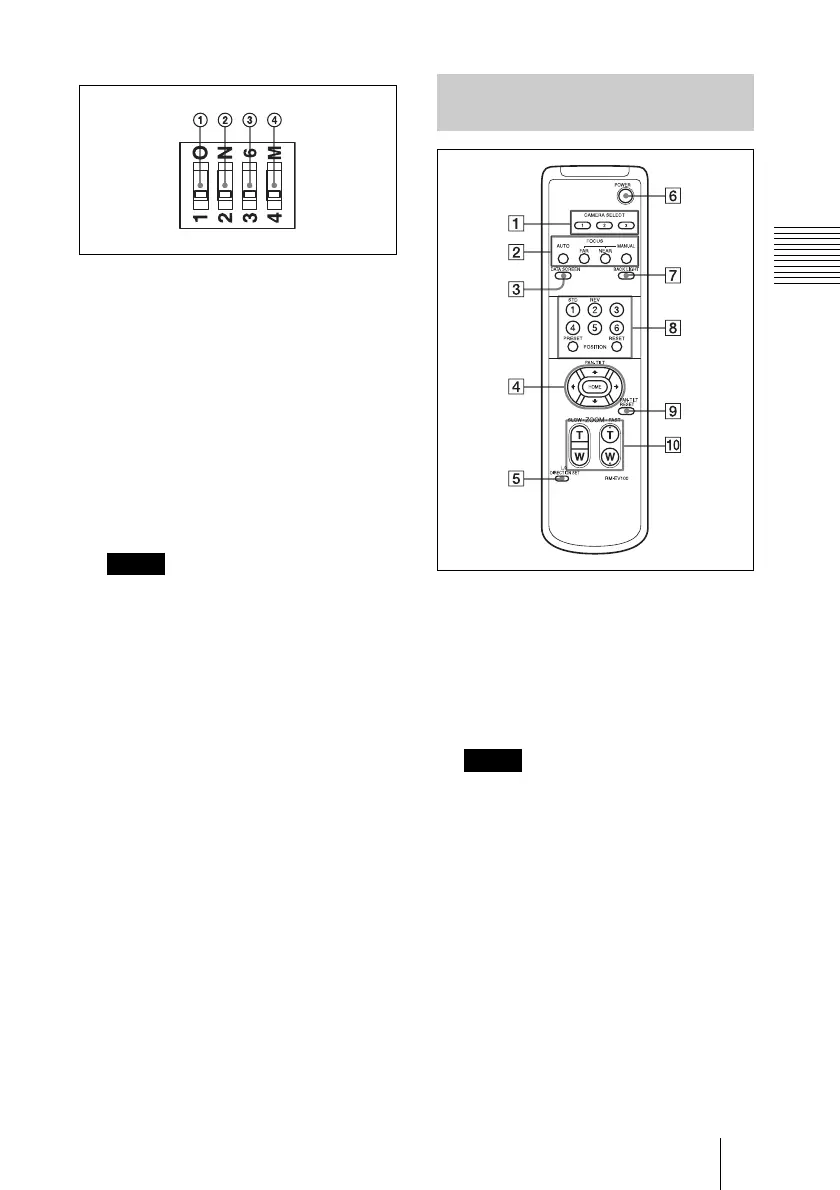

Setting of the BOTTOM switches
A Switch 1 (infrared remote
commander signal output
switch)
Set to ON to enable output of the
receiver signals, that are transmitted
from the remote commander, from the
VISCA IN connector (page 88), or set it
to OFF to disable the output.
B Switch 2 (Communication baud
rate selector)
Set to ON for 38,400 bps, or OFF for
9,600 bps.
Set the communication baud rate before
turning on the power. If you set the
communication baud rate after turning
on the power, the setting is ignored.
C Switch 3 (sync switch)
Select whether to add sync to the analog
video signals output from the VIDEO
OUT connector. Use this when analog
input monitors are connected. In
particular, add sync during non-HD/-VD
connections.
D Switch 4 (Not used)
Be sure to set this switch to OFF.
A CAMERA SELECT buttons
Press the button corresponding to the
camera you want to operate with the
remote commander.
The camera number can be set using the
IR SELECT switch on the rear of the
camera.
If two or more cameras are adjacent and
have the same camera number, they are
operated simultaneously with the same
remote commander. When you install
the cameras close to each other, set
different camera numbers.
For the camera number setting, see
“Operating Multiple Cameras with the
Remote Commander” (page 71).
B FOCUS buttons
Used for focus adjustment.
Press the AUTO button to adjust the
focus automatically. To adjust the focus
manually, press the MANUAL button,
and adjust it with the FAR and NEAR
buttons.
