Sony EVI-HD7V User Manual

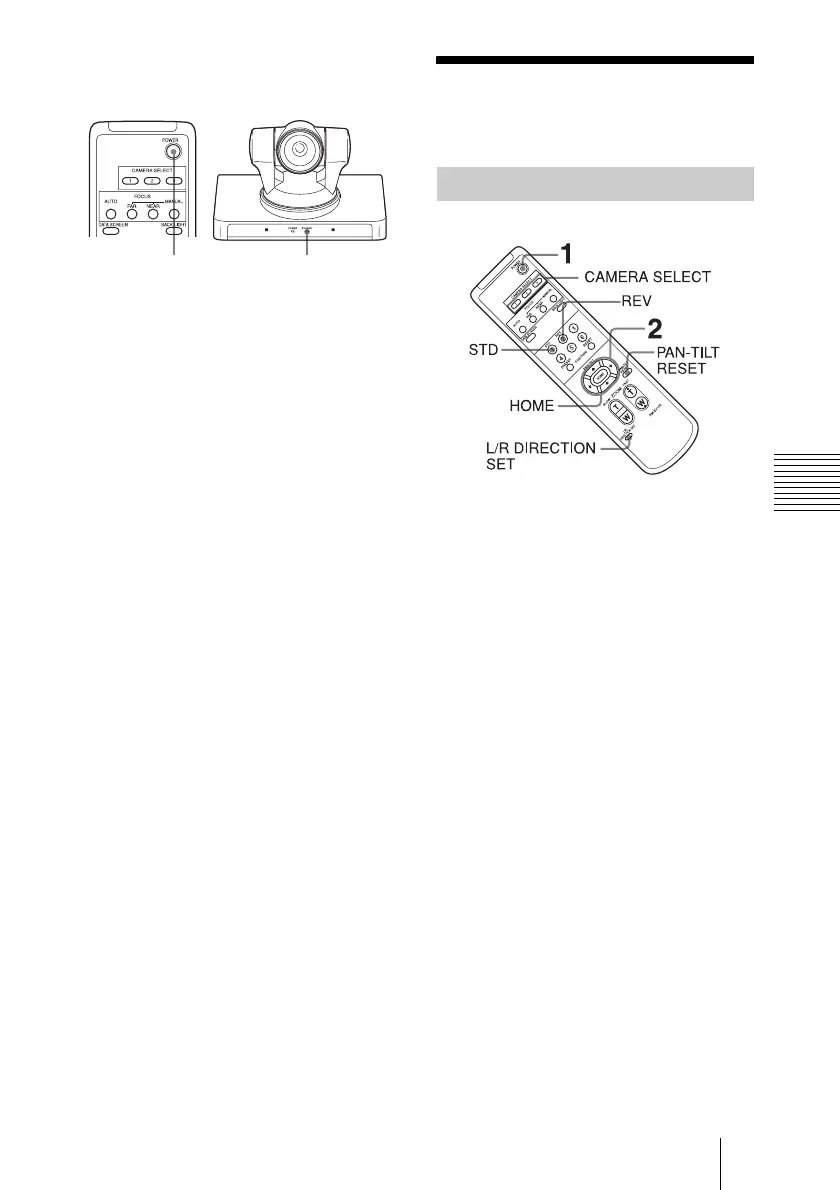

Operation Using the Supplied Remote Commander
69 Pan/Tilt and Zoom Operation
off and the STANDBY lamp lights on the
camera.
Pan/Tilt and Zoom
Operation
1 Press the POWER switch.
The camera will turn on and perform the
pan/tilt reset operation automatically.
2 Press the arrow button to pan or tilt the
camera.
While checking the picture on the
screen, press the desired arrow button.
To move the camera little by little,
press the button just for a moment.
To move the camera in a wide range,
press and hold the button.
To move the camera diagonally, press
the B or b button while holding down
the V or v button.
To face the camera back to the front
Press the HOME button.
If you accidentally move the camera
with your hand and the STANDBY
lamp flashes
Press the PAN-TILT RESET button to
perform the pan/tilt reset operation.
POWER
STANDBY lights.
Panning and Tilting

Sony EVI-HD7V Specifications

General

Maximum resolution	1920 x 1080 pixels
Supported video modes	480p, 720p, 1080i, 1080p
Automatic gain control	Yes
Pan range	-100 - 100 °
Pan speed	300 °/sec
White balance	Auto, Indoor, Manual, Outdoor, Push
Tilt angle range	-25 - 25 °
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	15 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	40 x
Optical zoom	10 x
Focal length range	3.4 - 33.9 mm
Maximum aperture number	2.1
Built-in HDD	No
Type	CCTV security camera
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual
Connectivity technology	Wired
Form factor	-
Mounting type	Desk
Product color	Gray
Signal-to-Noise Ratio (SNR)	50 dB
DC output voltage	12
Power consumption (typical)	26.4 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Interface	RS-232C
Cables included	AC
Number of cameras	1

Weight and Dimensions

Depth	132 mm
Width	250 mm
Height	152 mm
Weight	1500 g
