67 STATUS Menu
Adjusting and Setting with Menus
STATUS Menu

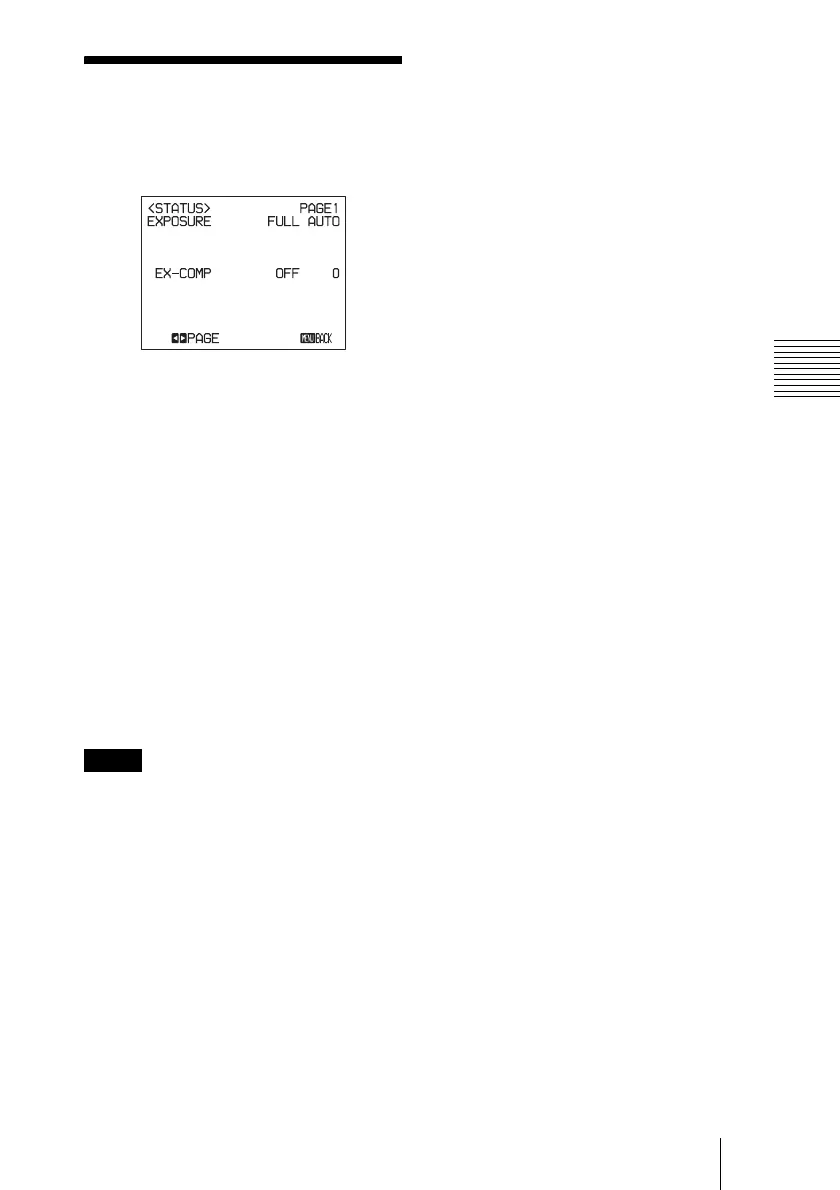

The STATUS menu is used to display the
settings selected with the menus.
The STATUS menu consists of PAGE1 to
PAGE4. This menu only displays the current
menu settings, and you cannot change them
with this menu.
PAGE1: Shows the settings selected with
the EXPOSURE menu.
PAGE2: Shows the settings selected with
the PICTURE menu and the WHITE
BALANCE menu.
PAGE3: Shows the settings selected with
the PAN TILT ZOOM menu.
PAGE4: Shows the settings selected with
the SYSTEM menu and the currently
selected video output format, remote
commander channel, VISCA
communication baud rate, COLOR
SYSTEM, SYNC ON VIDEO, and
cooling fan status.
SYNC TYPE of the SYSTEM menu appears
only when you select the video format for
the HD signal output using the SYSTEM
SELECT switch on the camera.
The current video format and the VISCA
baud rate communication for the camera are
displayed. Even if you change the settings
after turning on the power, those settings are
ignored and are not changed on the display.
Note

Sony EVI-HD7V Specifications

General

Maximum resolution	1920 x 1080 pixels
Supported video modes	480p, 720p, 1080i, 1080p
Automatic gain control	Yes
Pan range	-100 - 100 °
Pan speed	300 °/sec
White balance	Auto, Indoor, Manual, Outdoor, Push
Tilt angle range	-25 - 25 °
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	15 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	40 x
Optical zoom	10 x
Focal length range	3.4 - 33.9 mm
Maximum aperture number	2.1
Built-in HDD	No
Type	CCTV security camera
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual
Connectivity technology	Wired
Form factor	-
Mounting type	Desk
Product color	Gray
Signal-to-Noise Ratio (SNR)	50 dB
DC output voltage	12
Power consumption (typical)	26.4 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Interface	RS-232C
Cables included	AC
Number of cameras	1

Weight and Dimensions

Depth	132 mm
Width	250 mm
Height	152 mm
Weight	1500 g
